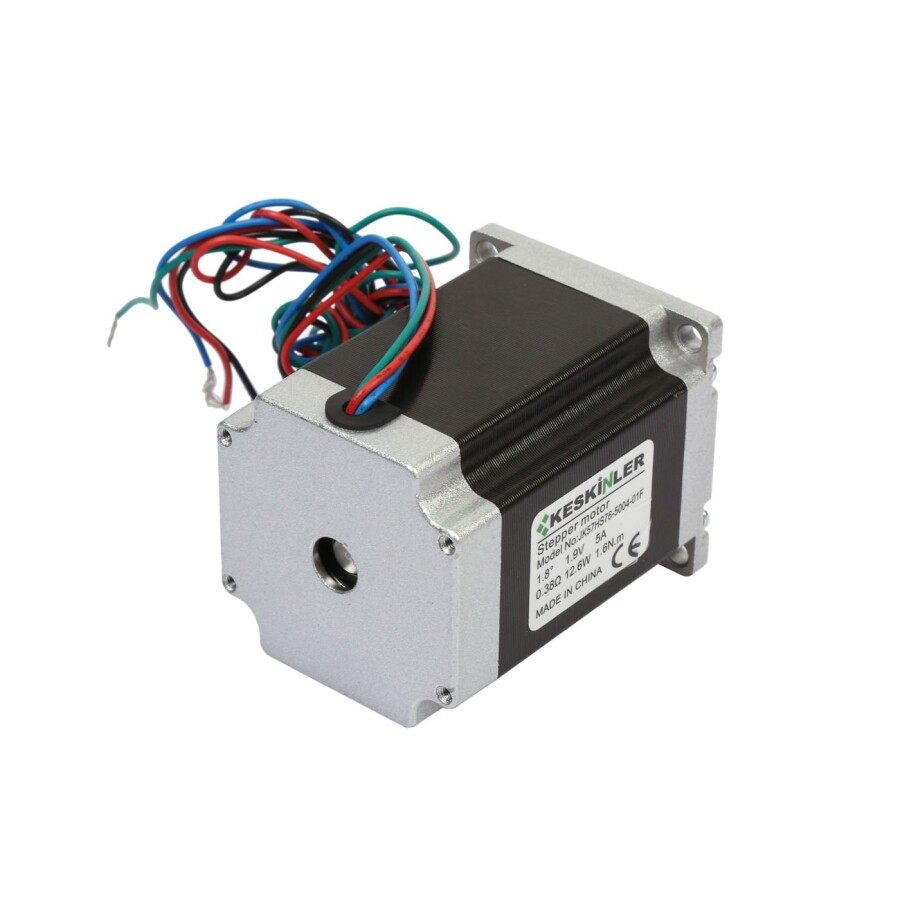

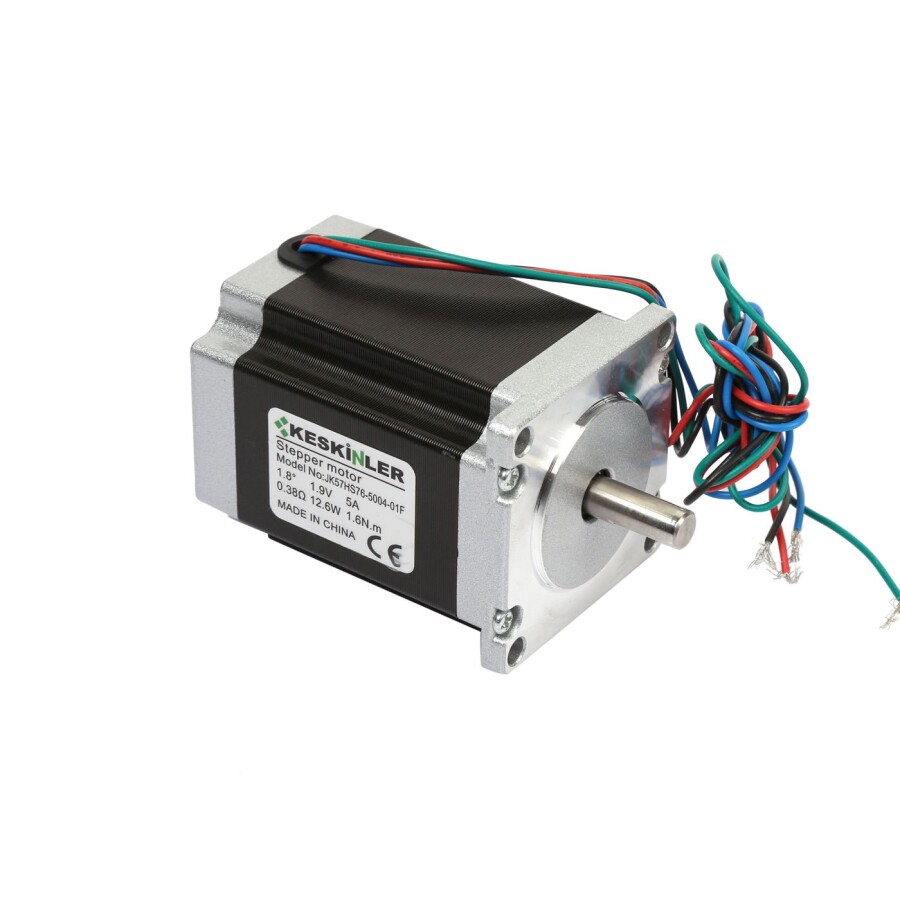

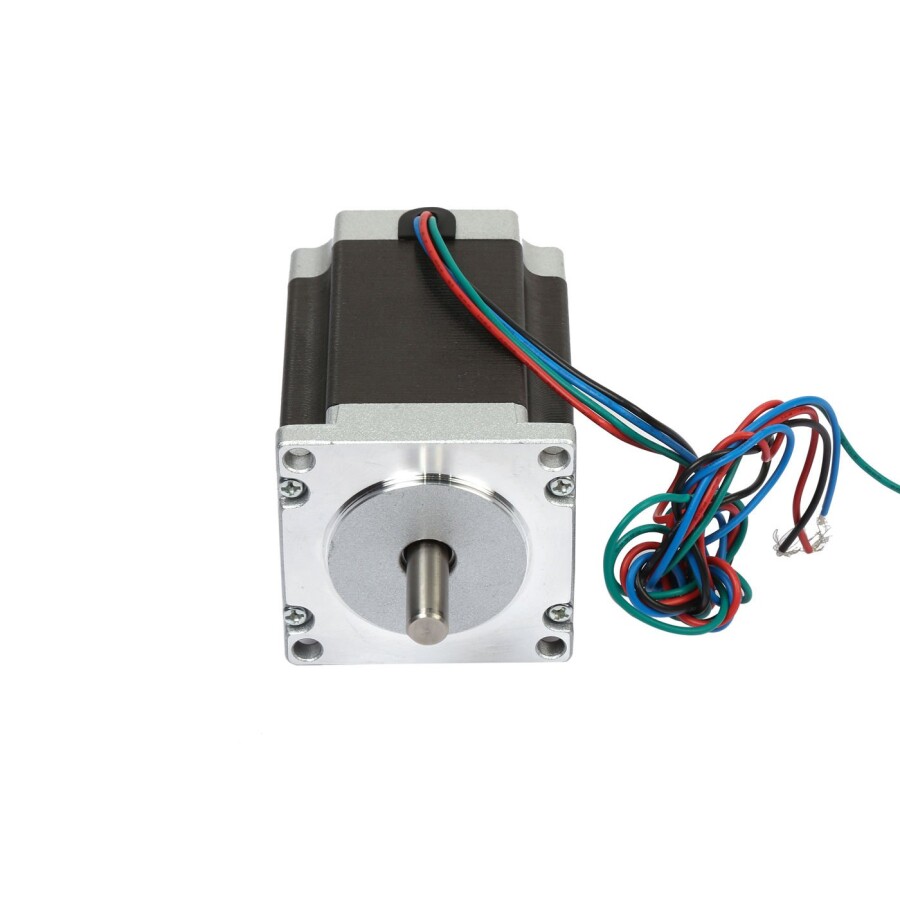

JK57HS76-5004 NEMA23 Stepper Motor

Product Description

The JK57HS76-5004 NEMA23 stepper motor is designed for applications requiring precise positioning and reliable motion control. It is commonly used in machine manufacturing, CNC machines, and various industrial automation systems.

With its 1.8° step angle, the motor provides accurate positioning and stable motion control. Its strong structure and high torque output make it suitable for demanding industrial environments.

The NEMA23 standard frame size allows easy integration with a wide range of stepper motor drivers and mechanical systems, making it ideal for CNC machines, robotics platforms, and automated production equipment.

Key Features

• Standard NEMA23 frame size

• 1.8° precision step angle

• High torque output

• Stable and reliable motion control

• Suitable for CNC and industrial automation systems

Application Areas

• CNC machines

• Industrial automation systems

• Robotics platforms

• Linear motion systems

• Machine manufacturing and production equipment

Technical Specifications

Electrical Specifications

• Motor Type: Stepper Motor

• Model: JK57HS76-5004

• Number of Phases: 2

• Step Angle: 1.8°

• Voltage: 1.9 V

• Peak Current: 5 A

• Phase Resistance: 0.38 Ω

Mechanical Specifications

• Motor Standard: NEMA23

• Torque: 23 Kg·cm

• Weight: 1.1 kg

Motor Cable Colors

• Red: A

• Blue: C

• Black: B

• Green: D

A and C are common terminals, and B and D are common terminals.
