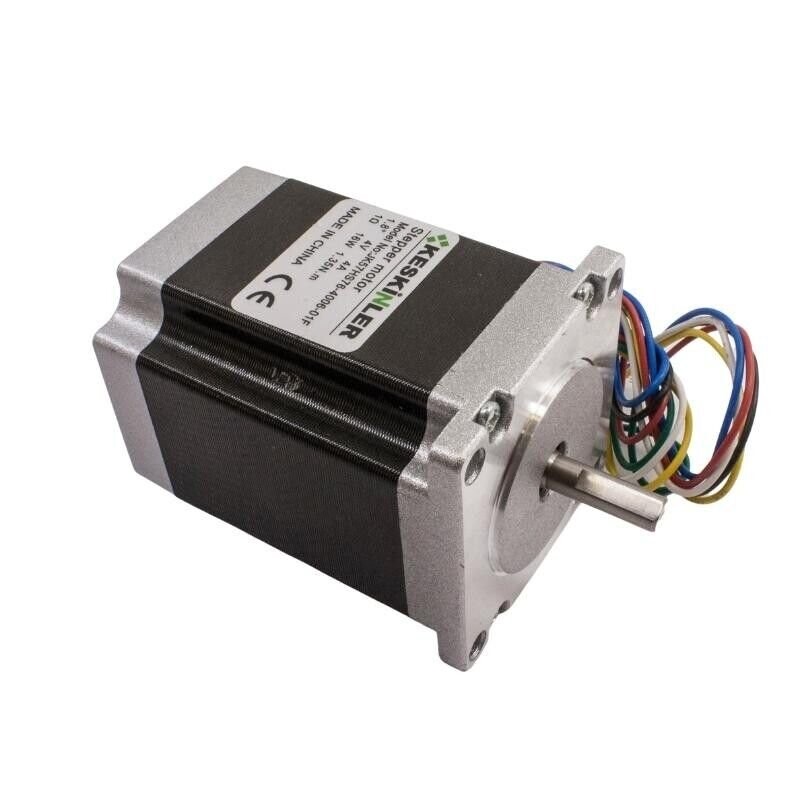

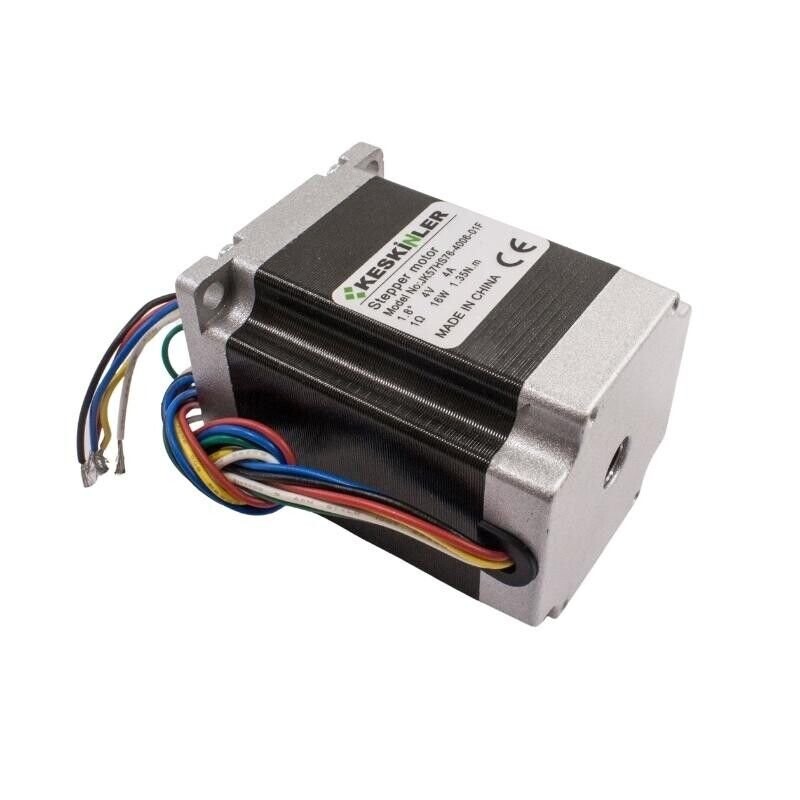

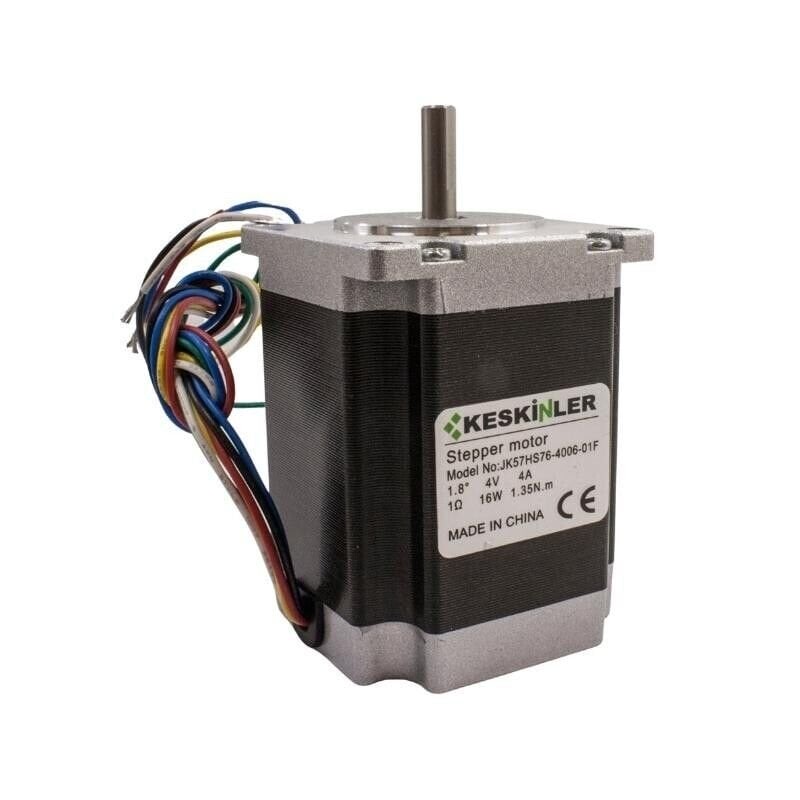

JK57HS76 NEMA23 Stepper Motor

Product Description

The JK57HS76 NEMA23 stepper motor is designed for applications requiring precise positioning and reliable motion control. It is commonly used in machine manufacturing, CNC systems, and various industrial automation equipment.

With its 1.8° step angle, the motor provides accurate positioning and stable motion performance. Its robust construction and reliable electrical characteristics make it suitable for demanding industrial environments.

The NEMA23 standard frame size allows easy integration with a wide range of stepper motor drivers and mechanical systems, making it ideal for CNC machines, robotics platforms, and automated production systems.

Key Features

• Standard NEMA23 frame size

• 1.8° precision step angle

• Stable and reliable motion control

• Compact and durable construction

• Suitable for CNC and industrial automation systems

Application Areas

• CNC machines

• Industrial automation systems

• Robotics platforms

• Linear motion systems

• Machine manufacturing and production equipment

Technical Specifications

Electrical Specifications

• Motor Type: Stepper Motor

• Model: JK57HS76

• Number of Phases: 4

• Step Angle: 1.8°

• Voltage: 4 V

• Peak Current: 4 A

• Power: 16 W

• Phase Resistance: 1 Ω

Mechanical Specifications

• Motor Standard: NEMA23

• Torque: 1.355 Kg·cm
