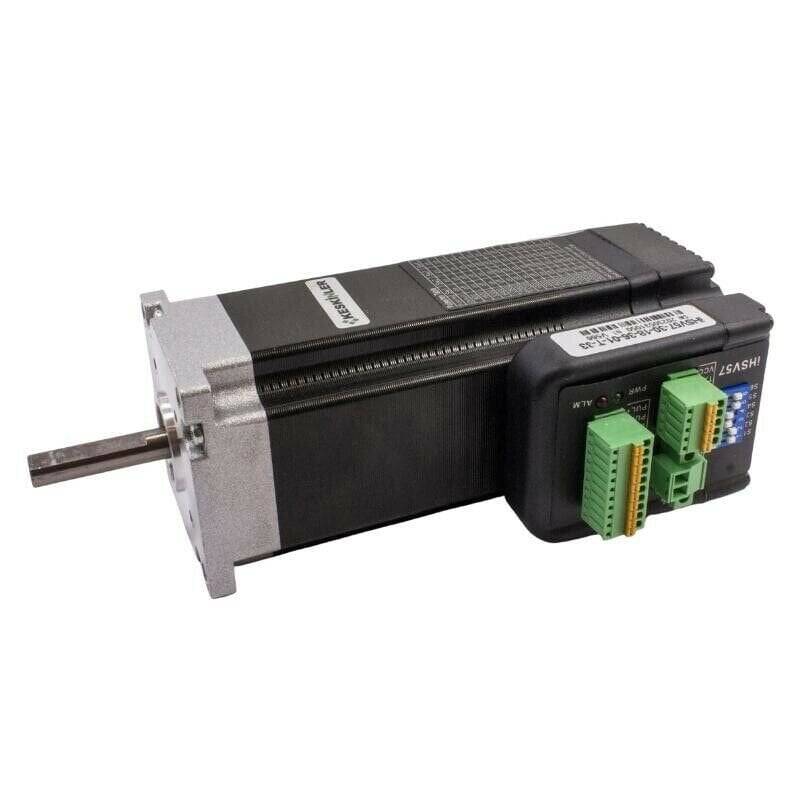

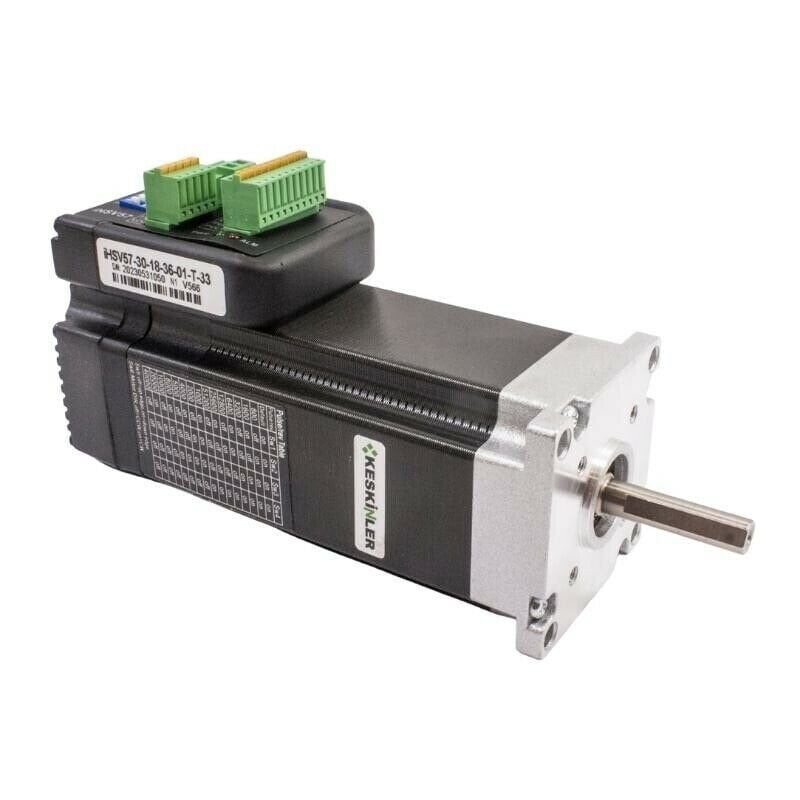

iHSV57-30-18 NEMA23 Servo Motor with Driver

Product Description

The iHSV57-30-18 NEMA23 servo motor with integrated driver is designed for high-precision motion control applications. The integrated driver simplifies installation, reduces wiring requirements, and ensures reliable system compatibility.

This servo motor can be widely used in laser cutting machines, laser marking systems, high-precision XY tables, labeling machines, and CNC milling machines.

The pulse value can be easily configured using the DIP switches on the driver, allowing flexible configuration for different control systems. With its high-speed capability and stable torque performance, it provides reliable and efficient motion control in industrial automation environments.

Key Features

• Standard NEMA23 frame size

• Integrated servo motor driver

• High precision positioning capability

• Adjustable pulse settings via DIP switch

• Suitable for CNC and industrial automation systems

Application Areas

• Laser cutting machines

• Laser marking systems

• CNC milling machines

• High-precision XY positioning tables

• Labeling machines

• Industrial automation systems

Technical Specifications

Electrical Specifications

• Motor Type: Servo Motor with Driver

• Model: iHSV57-30-18

• Number of Phases: 3

• Supply Voltage: 36V DC

• Output Power: 180 W

• Nominal Current: 7.5 A

• No-Load Current: 0.65 A

Performance Specifications

• Maximum Speed: 4200 RPM

• Recommended Speed: 3000 RPM

• Holding Torque: 0.6 N·m

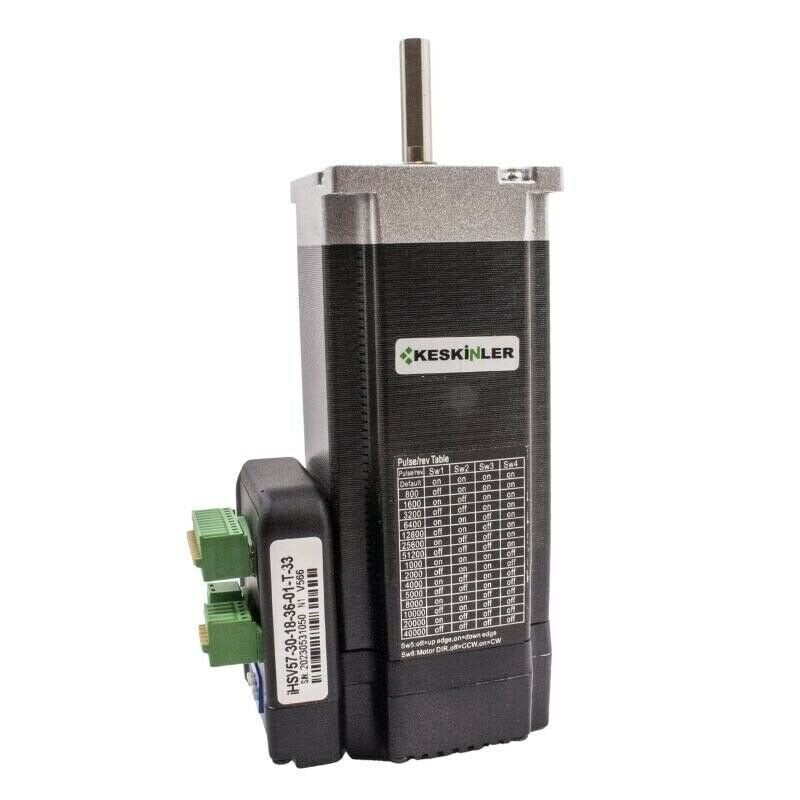

Pulse / Rev Configuration Table
