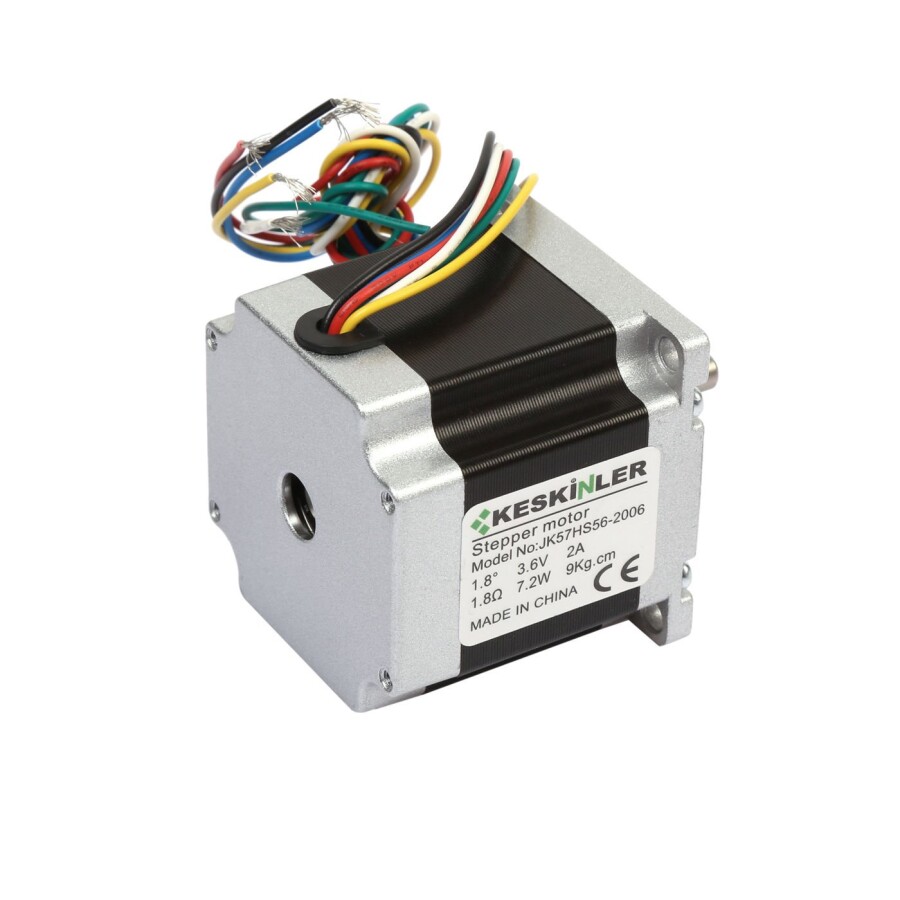

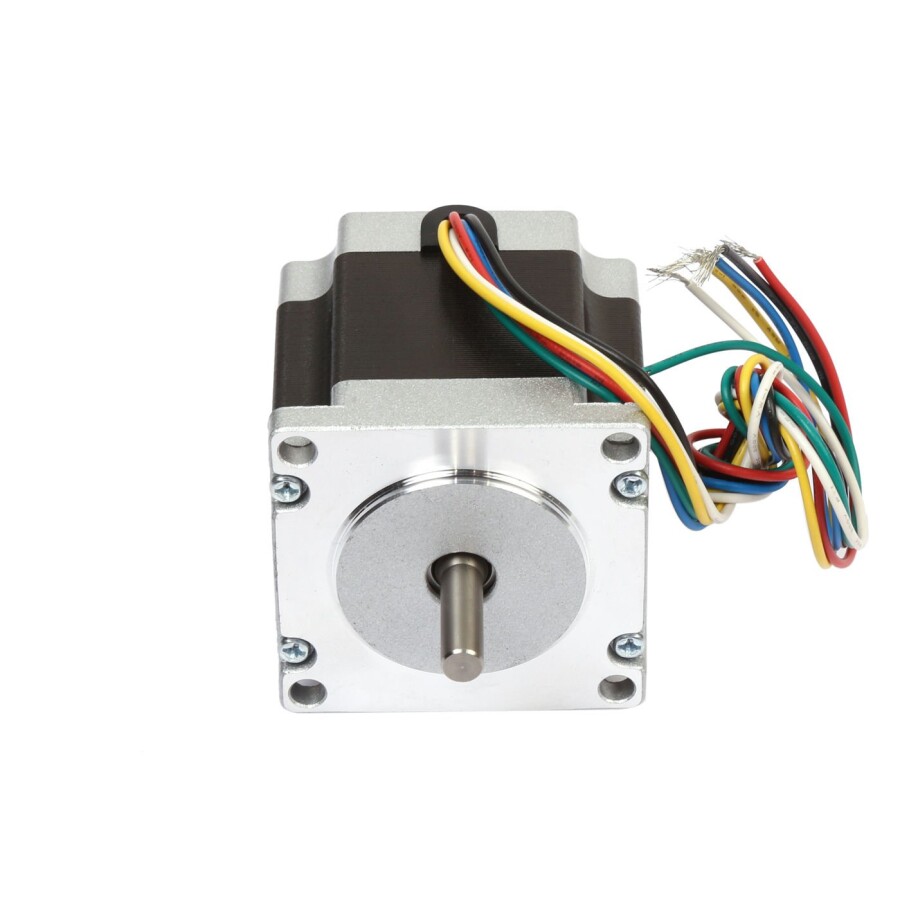

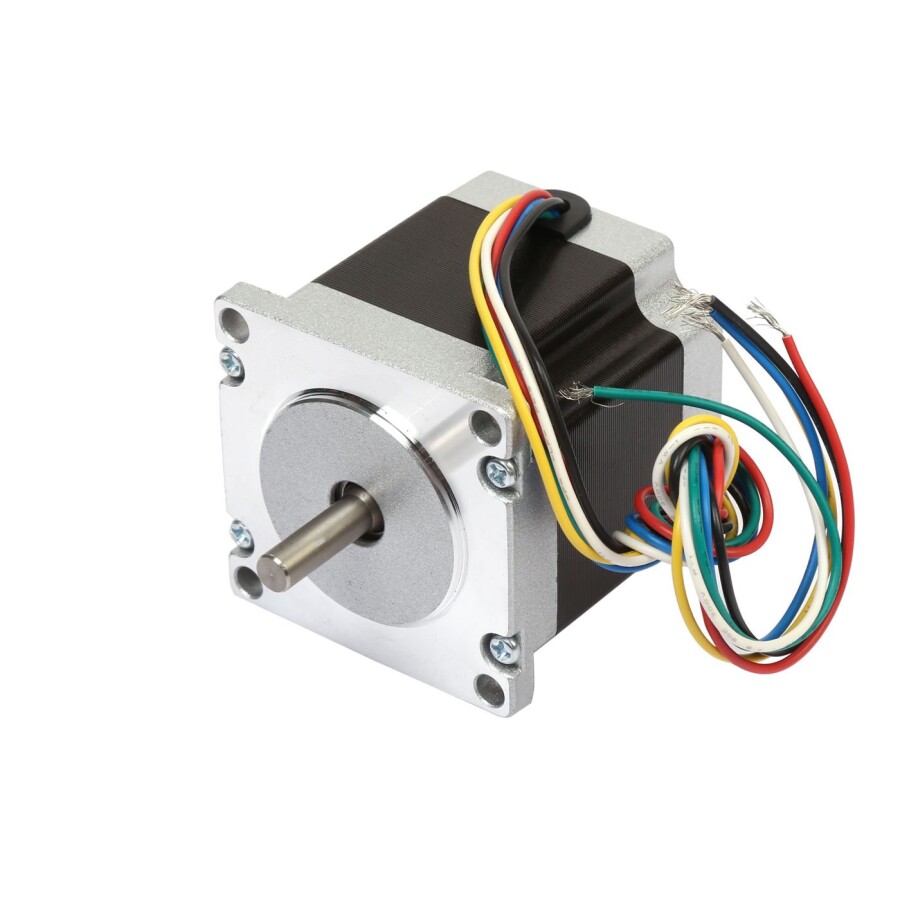

JK57HS56-2006 NEMA23 Stepper Motor

Product Description

The JK57HS56-2006 NEMA23 stepper motor is designed for applications requiring precise positioning and reliable motion control. It is widely used in machine manufacturing, CNC machines, and various industrial automation systems.

With its 1.8° step angle, the motor provides accurate positioning and stable motion control performance. Its compact structure and reliable electrical characteristics make it suitable for demanding industrial environments.

The NEMA23 standard frame size allows easy integration with many stepper motor drivers and mechanical systems. This makes it ideal for CNC machines, robotics platforms, and automated production equipment.

Key Features

• Standard NEMA23 frame size

• 1.8° precision step angle

• Stable and reliable motion control

• Compact and durable construction

• Suitable for CNC and industrial automation systems

Application Areas

• CNC machines

• Industrial automation systems

• Robotics platforms

• Linear motion systems

• Machine manufacturing and production equipment

Technical Specifications

Electrical Specifications

• Motor Type: Stepper Motor

• Model: JK57HS56-2006

• Number of Phases: 4

• Step Angle: 1.8°

• Voltage: 3.6 V

• Peak Current: 2 A

• Phase Resistance: 1.8 Ω

Mechanical Specifications

• Motor Standard: NEMA23

• Torque: 9 Kg·cm

• Weight: 0.65 kg

Motor Cable Colors

• Black: A

• Yellow: O

• Green: C

• Red: B

• White: O-

• Blue: D
