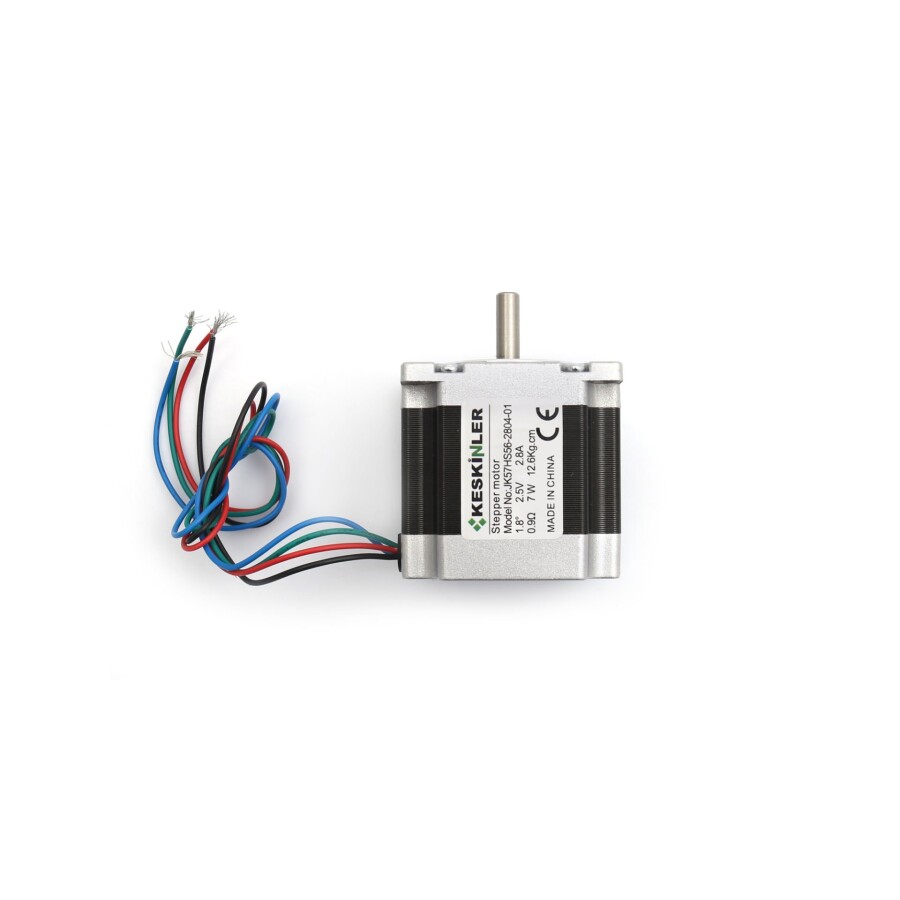

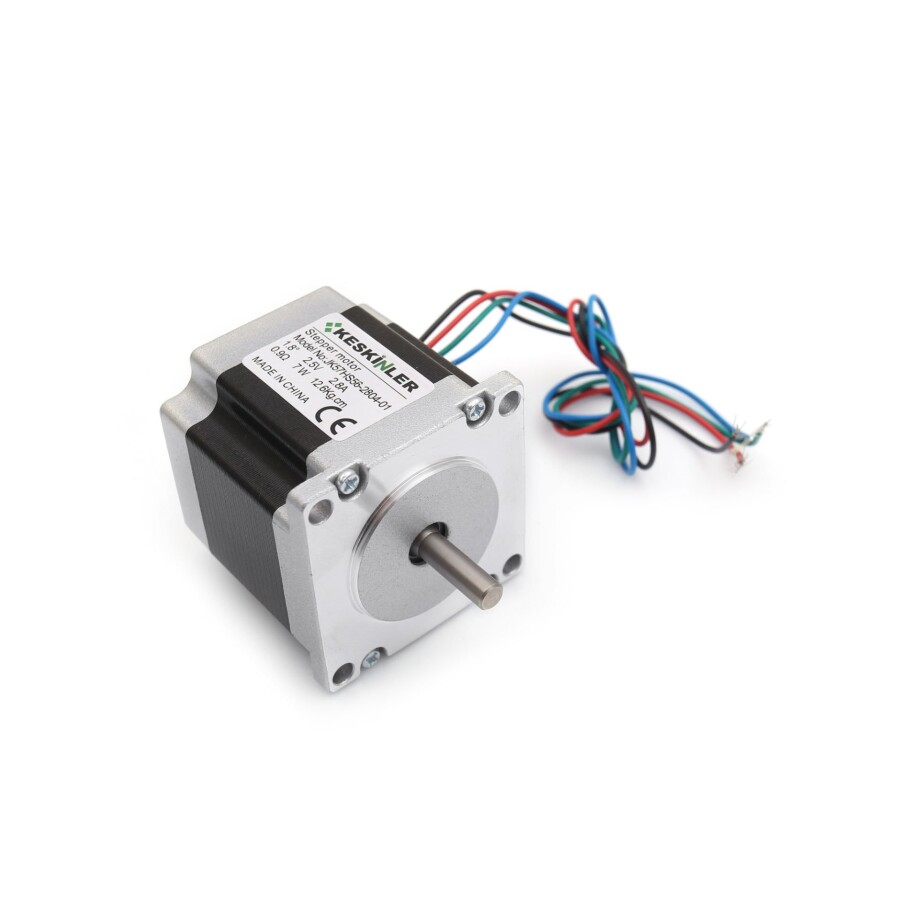

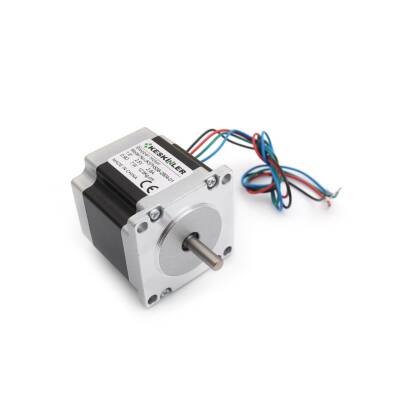

JK57HS56 NEMA23 Stepper Motor

Product Description

The JK57HS56 NEMA23 stepper motor is designed for applications requiring precise positioning and reliable motion control. It is widely used in machine manufacturing, CNC machines, and industrial automation systems.

With its 1.8° step angle, the motor provides accurate positioning and smooth motion performance. Its robust construction and stable electrical characteristics make it suitable for demanding industrial environments.

The NEMA23 standard frame size allows easy integration with a wide range of stepper motor drivers and mechanical systems, making it ideal for CNC machines, robotics platforms, and automated production equipment.

Technical Specifications

Electrical Specifications

• Motor Type: Stepper Motor

• Model: JK57HS56

• Number of Phases: 2

• Step Angle: 1.8°

• Voltage: 2.5 V

• Peak Current: 2.8 A

• Phase Resistance: 0.9 Ω

Mechanical Specifications

• Motor Standard: NEMA23

• Torque: 12.6 Kg·cm

• Weight: 0.7 kg
