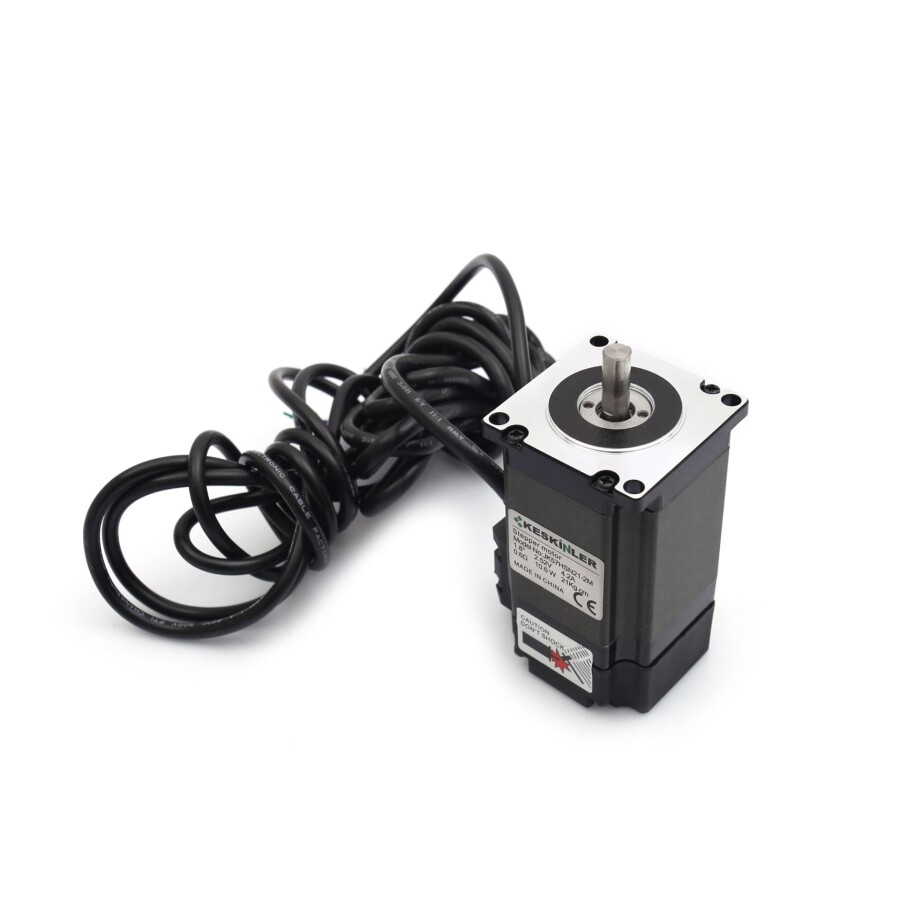

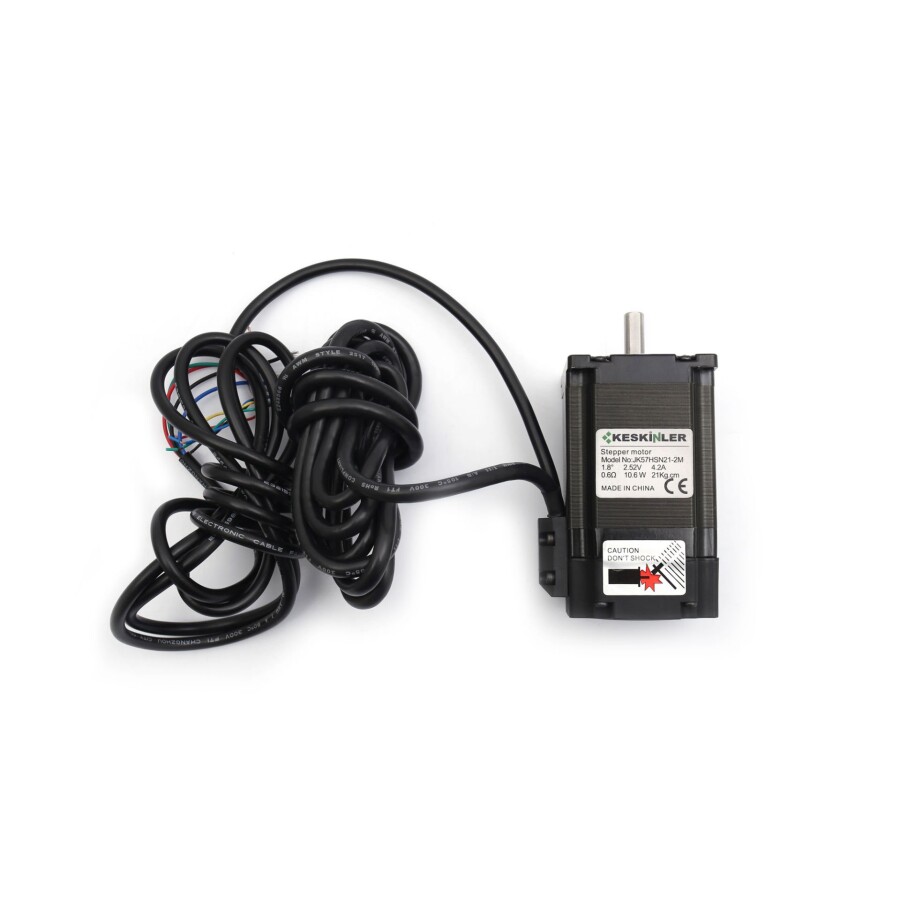

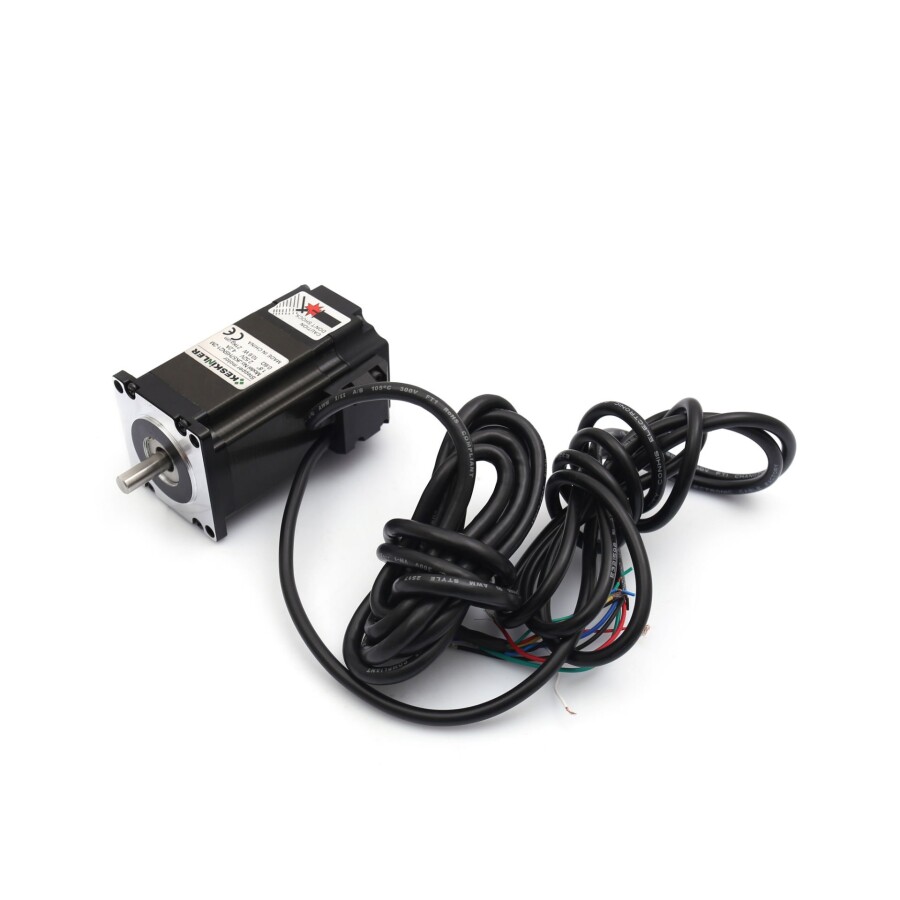

JK57HSN21 NEMA23 Stepper Motor and Driver with Encoder
The JK57HSN21 NEMA23 Stepper Motor with Encoder is a type of motor that can be used in projects requiring precise positioning, in machine manufacturing, and in various production machines. Encoder-equipped stepper motors are also known as closed loop stepper motors.

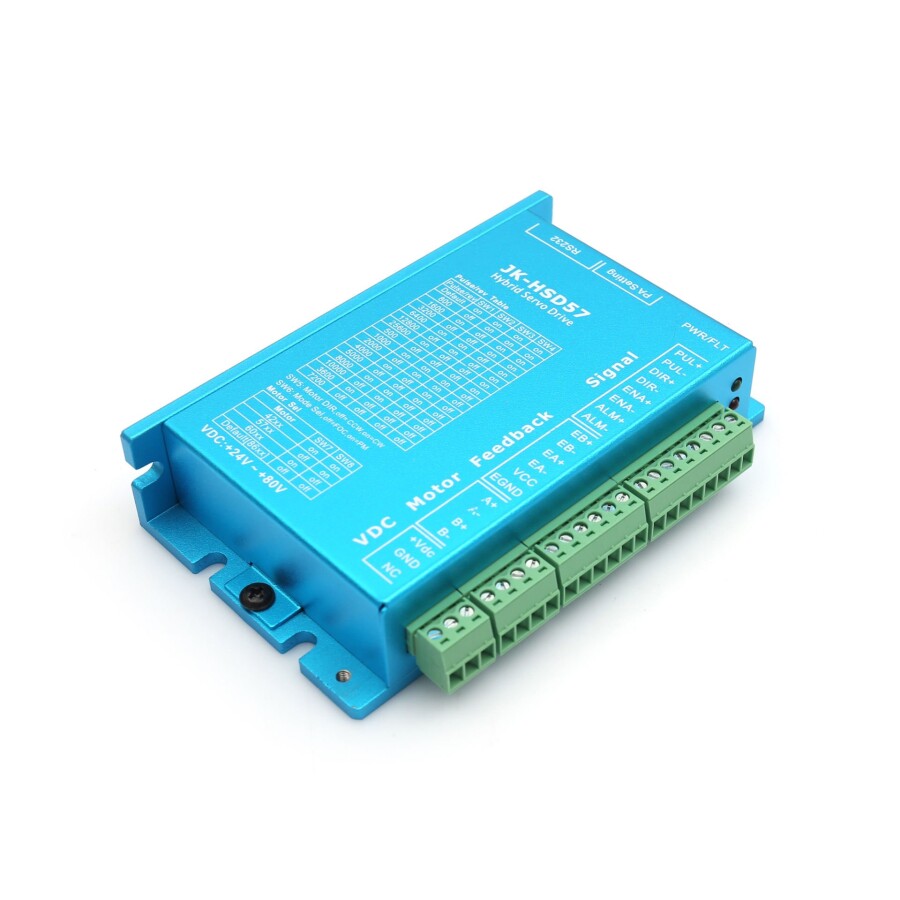

This stepper motor is sold with its driver.
Features:
- Angle Value: 1.8 degrees
- Voltage: 3.36V
- Peak Current Value: 4.2 A
- Torque: 21 kg.cm
- Weight: 1.1 kg
Cable Colors:
- Black: A+
- Green: A-
- Red: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
