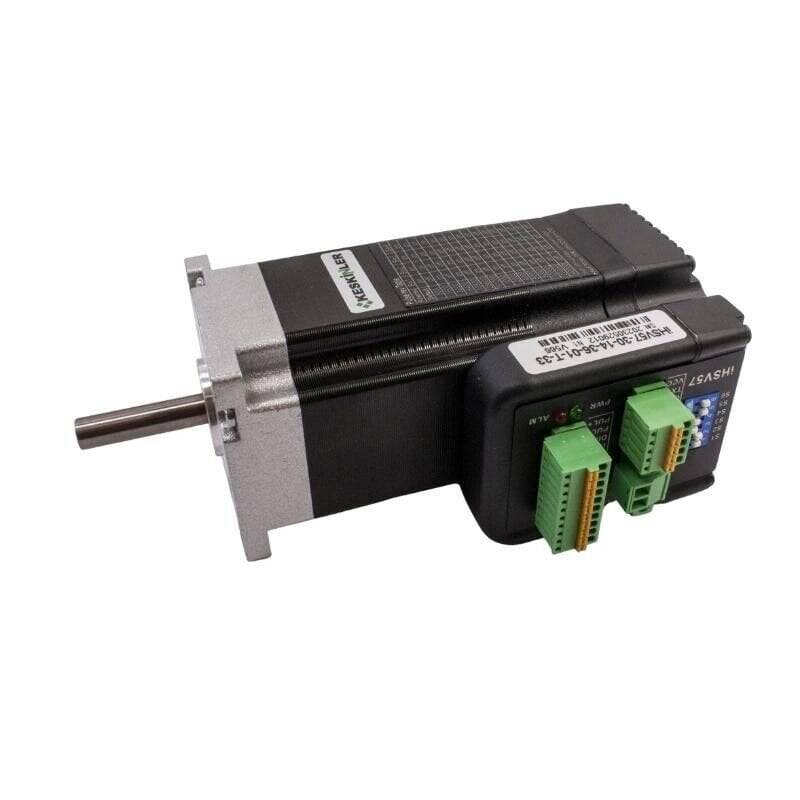

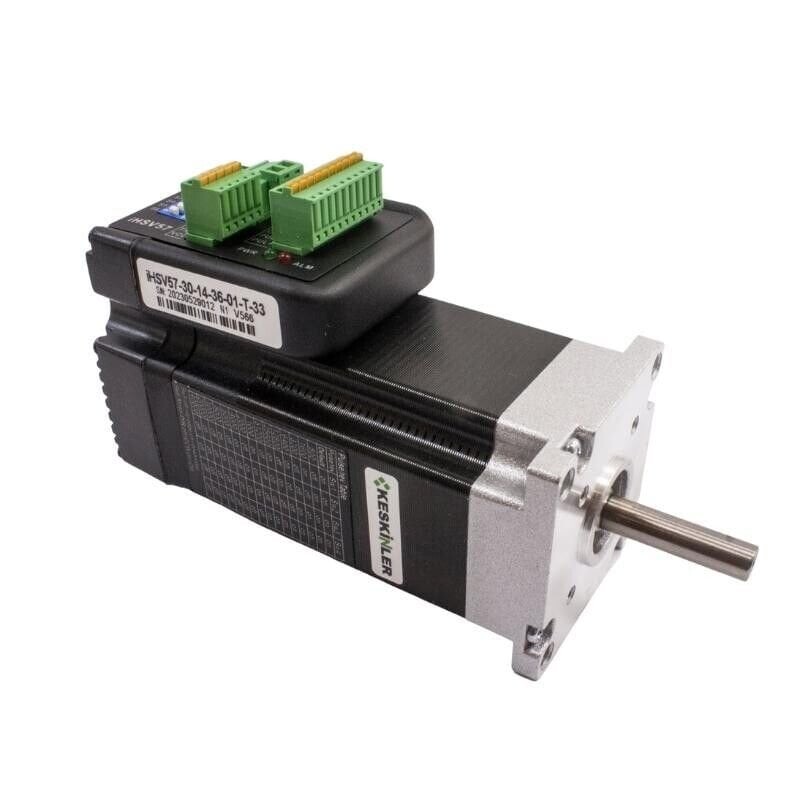

iHSV57-30-14 NEMA23 Servo Motor with Driver

Product Description

The iHSV57-30-14 NEMA23 servo motor with integrated driver is designed for high-precision motion control applications. Its integrated driver structure simplifies installation, reduces wiring complexity, and ensures reliable compatibility between the motor and the control system.

The iHSV57-xx series servo motors can be used in various applications such as laser cutting machines, laser marking systems, high-precision XY tables, labeling machines, and CNC milling machines.

The pulse value can be adjusted using the DIP switches located on the driver, allowing flexible configuration for different motion control systems and providing precise positioning capability.

With high speed capability and stable torque performance, this servo motor provides reliable and efficient motion control in industrial automation systems.

Key Features

• Standard NEMA23 frame size

• Integrated servo motor driver

• Adjustable pulse settings via DIP switches

• High precision positioning capability

• Designed for CNC and industrial automation systems

Application Areas

• Laser cutting machines

• Laser marking systems

• CNC milling machines

• High precision XY positioning tables

• Labeling machines

• Industrial automation systems

Technical Specifications

Electrical Specifications

• Motor Type: Servo Motor with Driver

• Model: iHSV57-30-14

• Number of Phases: 3

• Supply Voltage: 36V DC

• Output Power: 140 W

• Nominal Current: 5.4 A

• No-Load Current: 0.55 A

Performance Specifications

• Maximum Speed: 4200 RPM

• Recommended Speed: 3000 RPM

• Holding Torque: 0.45 N·m

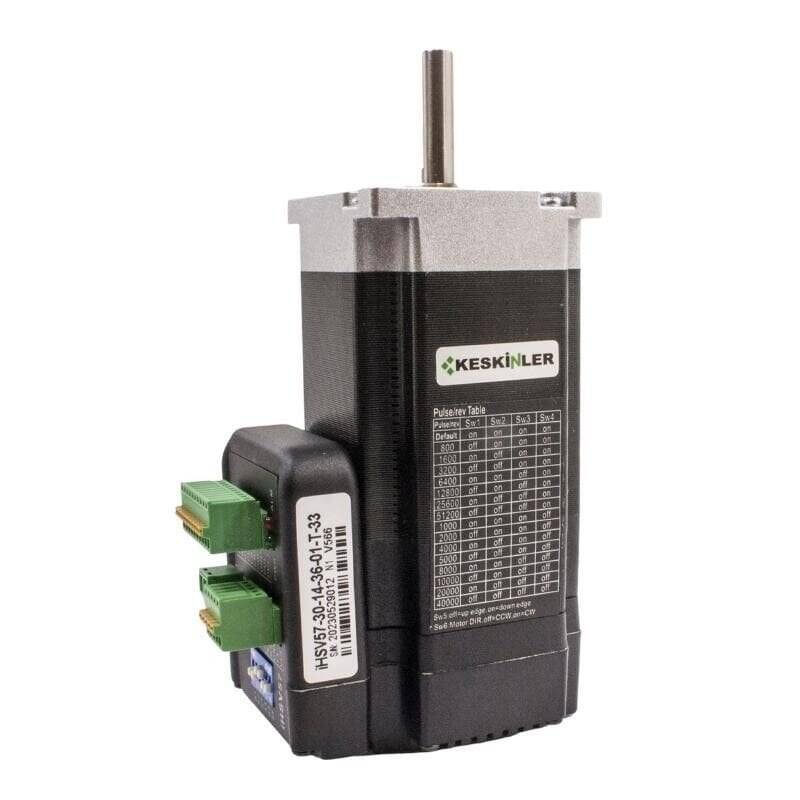

Pulse / Rev Configuration Table
