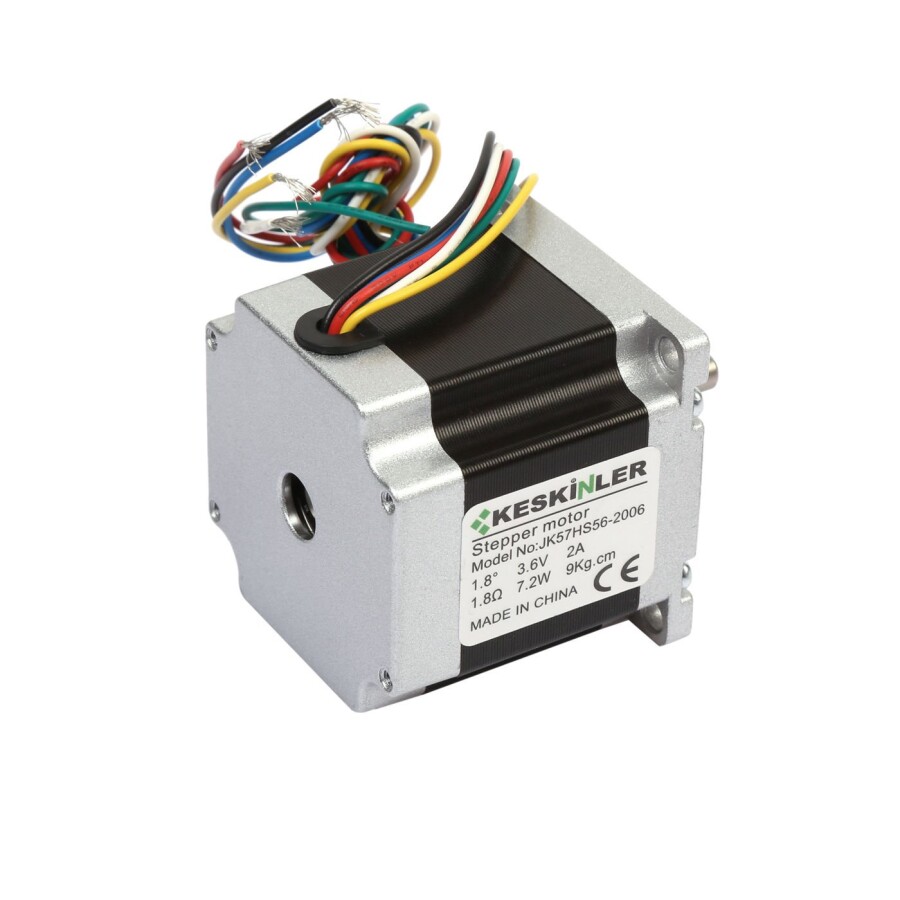

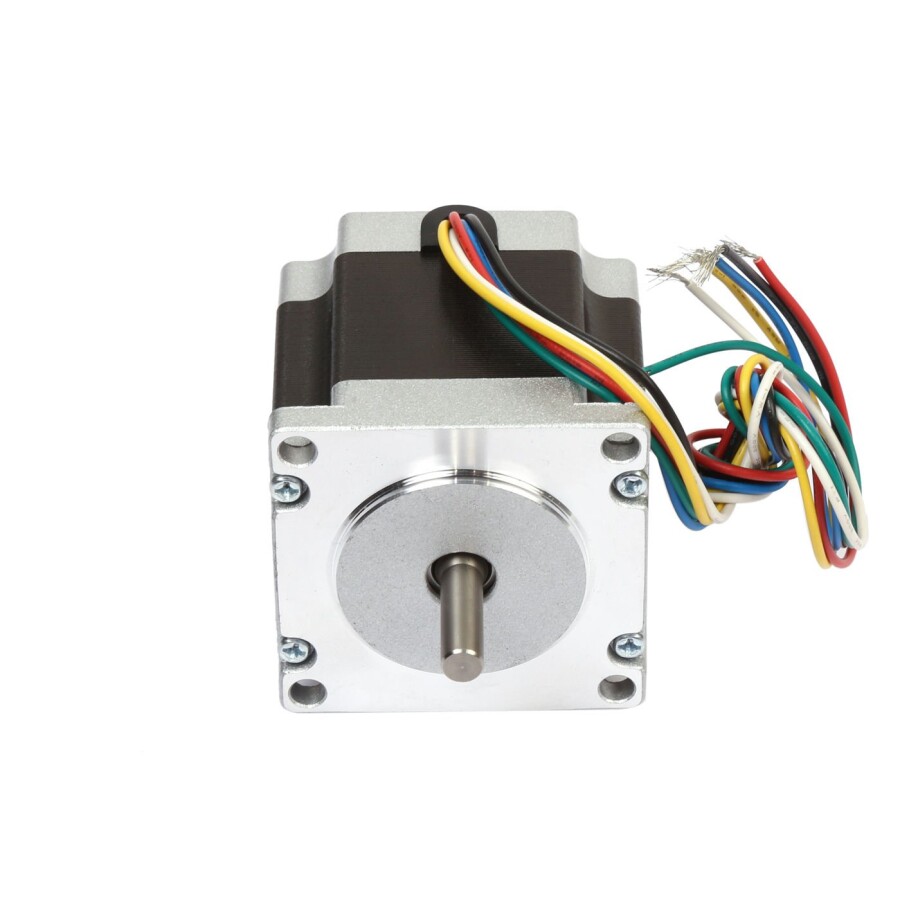

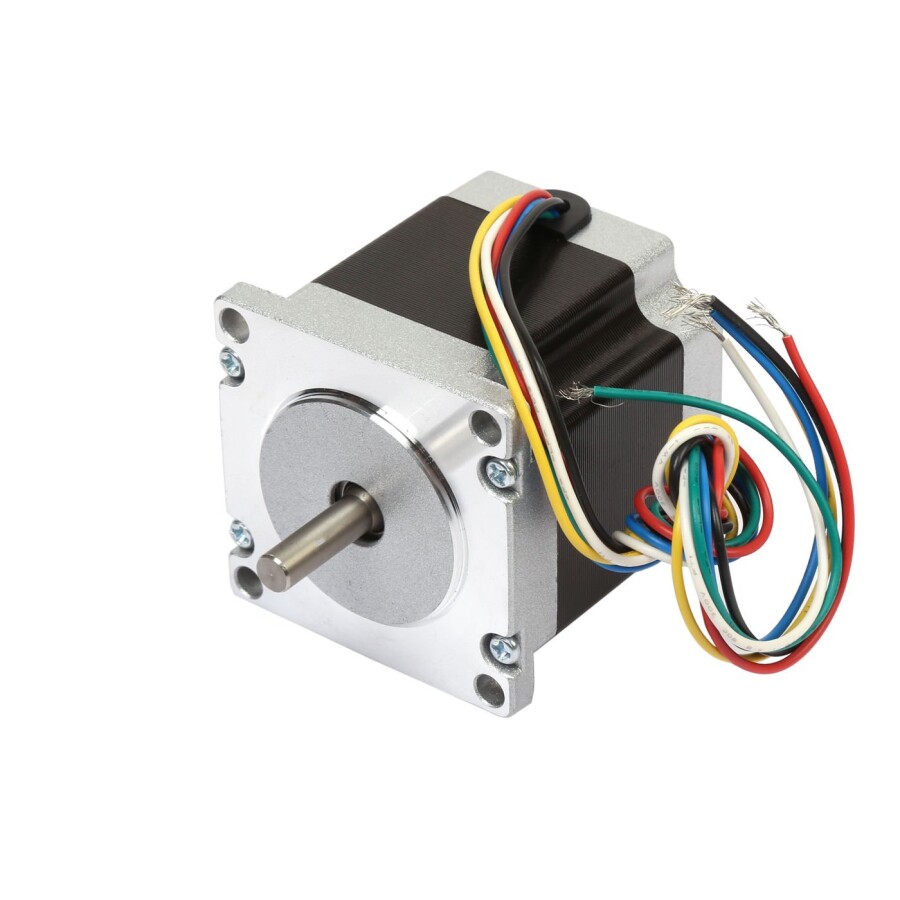

JK57HS56-2006 NEMA23 Stepper Motor
The JK57HS56-2006 NEMA23 Stepper Motor is a motor type that can be used in various production machines, especially in projects requiring precise positioning, in machine manufacturing, and in various production machines.
Features:
- Number of Phases: 4
- Angle Value: 1.8 degrees
- Voltage: 3.6V
- Peak Current Value: 2 A
- Phase Resistance: 1.8 Ohms
- Torque: 9 kg.cm
- Weight: 0.65 kg
Cable Colors:
- Black: A
- Yellow: O
- Green: C
- Red: B
- White: O-
- Blue: D
