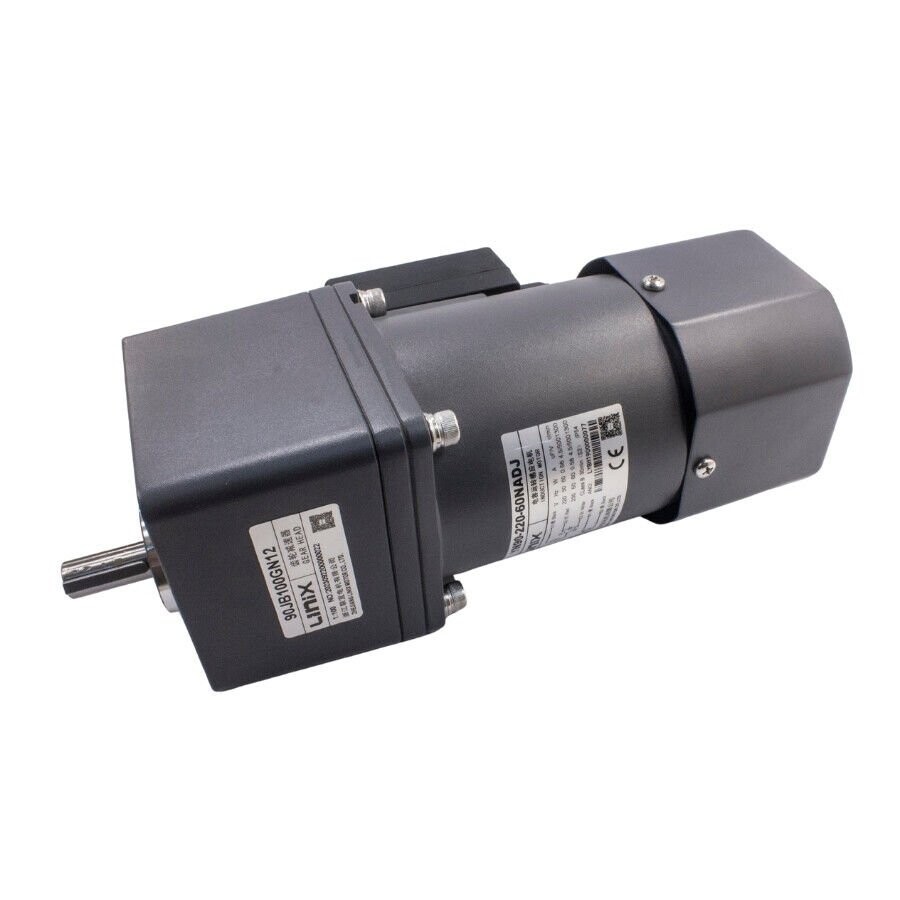

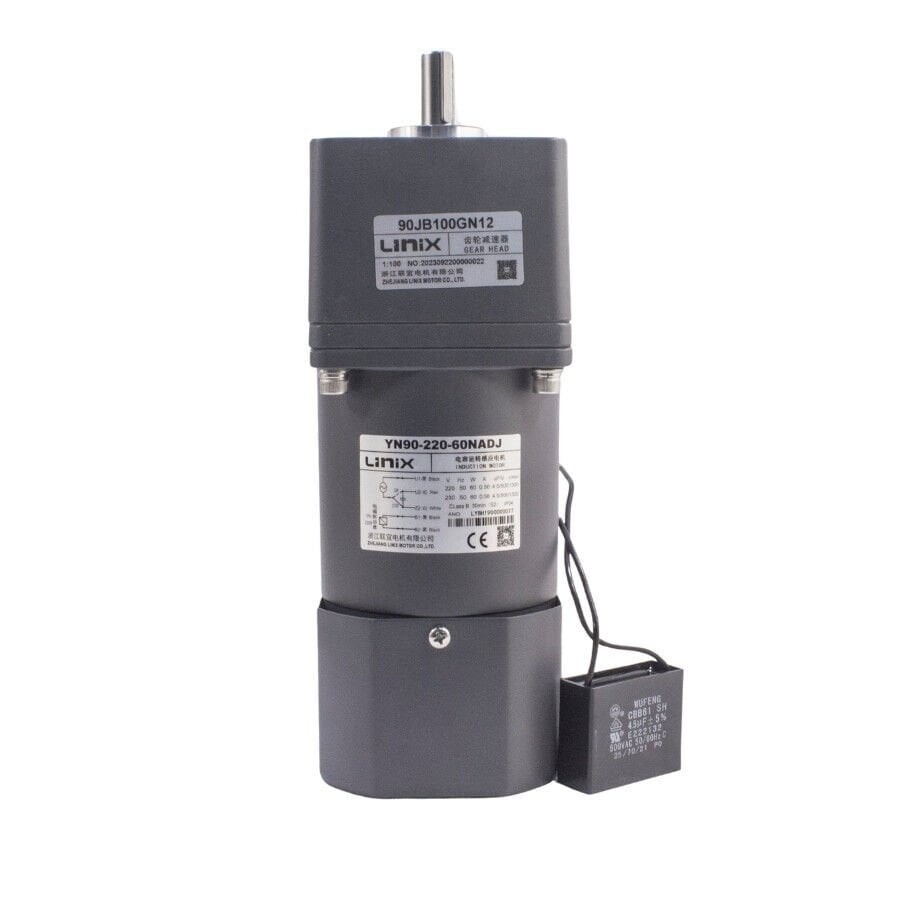

YN90-220-60 220V 13RPM Brake AC Motor - 90JB100GN
Product Code : ACLNX1.058
A brake geared AC motor operating with 220V AC, offering 13 RPM output speed and 30 Nm torque. A compact and reliable solution for industrial systems requiring controlled stopping and strong low-speed performance.
10,290.00 TL + VAT
KDV Dahil : 12,348.00 TL
Out Of Stock
Notify me when its in stockYN90-220-60 220V 13RPM AC Motor with Brake - 90JB100GN
The YN90-220 is a 90mm reducer diameter, 60-watt motor frequently preferred in industrial applications and machine manufacturing. The product's technical drawings, speed, and torque information are provided below. You can contact us for other speed options and bulk purchases.
A CBB61 4.5uF 450VAC capacitor is included with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.56A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 13 RPM
- Torque: 30 Nm
- Shaft Diameter: 12.7 mm
- Shaft Length: 25 mm
- Reducer Diameter: 90 mm
- Motor Length: 160mm
Features
Watt
60 Watt
Voltaj
220V AC
