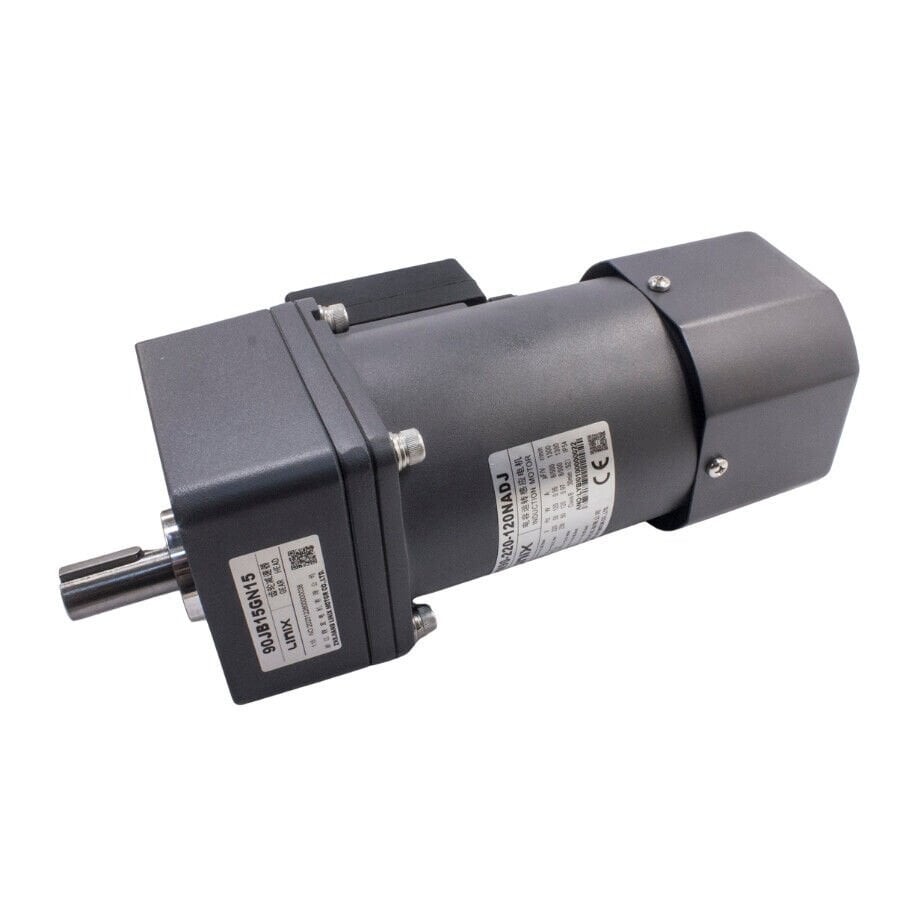

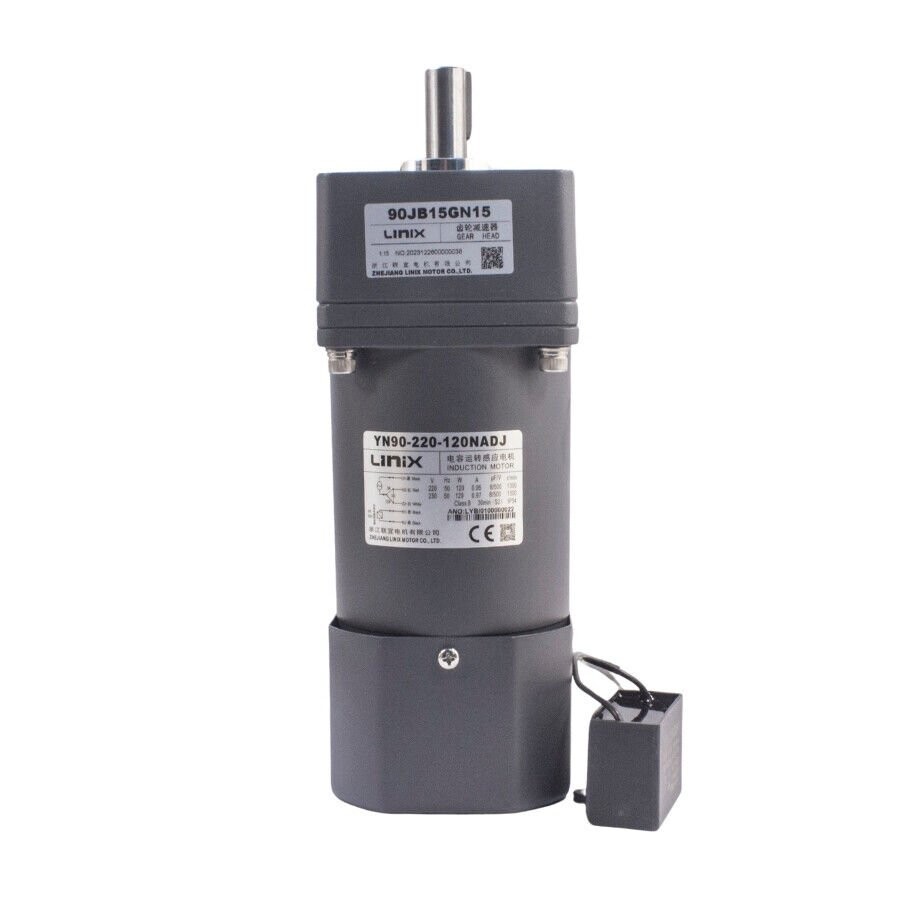

YN90-220-120 220V 87RPM Brake AC Motor - 90JB15GN
Product Code : ACLNX1.087
A 220V AC brake geared motor offering 87 RPM output speed and 9.64 Nm torque. With its 120W power, it is a strong and reliable solution for industrial machinery, automation systems, and applications requiring controlled motion.
11,515.00 TL + VAT
KDV Dahil : 13,818.00 TL
Out Of Stock
Notify me when its in stockYN90-220-120 220V 87RPM AC Motor with Brake - 90JB15GN
YN90-220 This 120-watt motor, with a 90mm reducer diameter, is frequently preferred in industrial applications and machine manufacturing. The product's technical drawing, speed, and torque information are provided below. You can contact us for other speed options and bulk purchases.
A CBB61 8uF 450VAC capacitor is included with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.95A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 87 RPM
- Torque: 9.64 Nm
- Shaft Diameter: 15.7 mm
- Shaft Length: 25 mm
- Reducer Diameter: 90 mm
- Motor Length: 175mm
Features
Watt
120 Watt
Voltaj
220V AC
