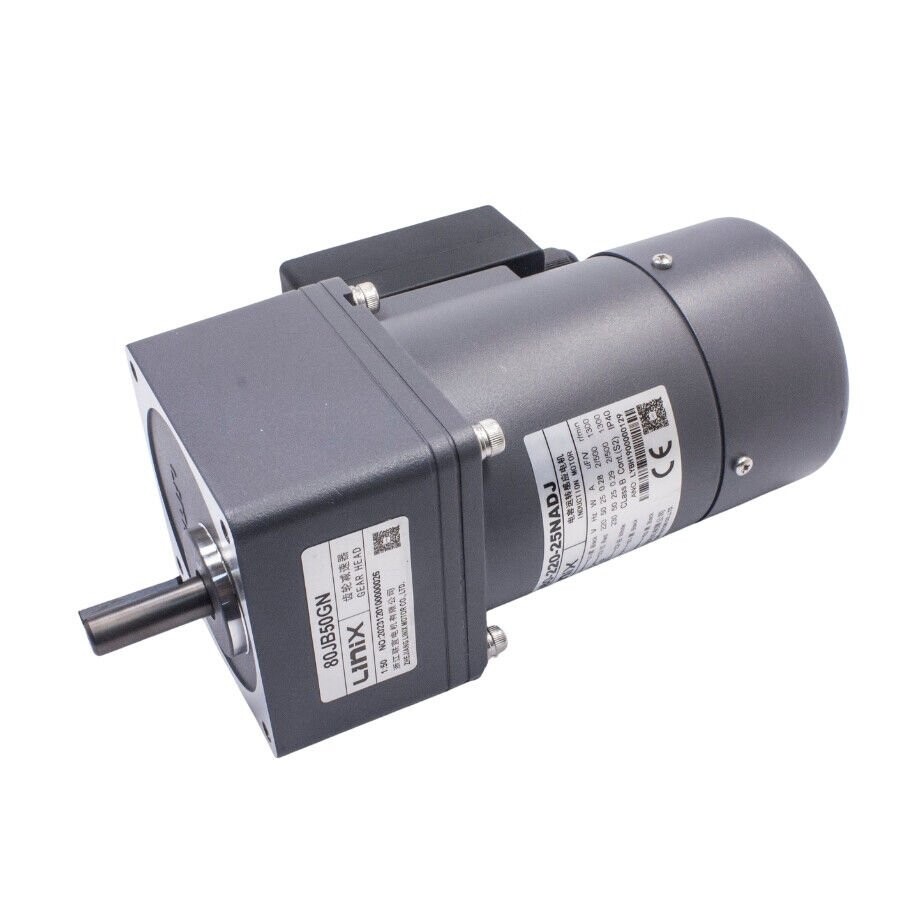

YN80-220-25 220V 13RPM Brake AC Motor - 80JB100GN
Product Code : ACLNX1.026
YN80-220-25 220V 13RPM Brake AC Motor - 80JB100GN is a geared brake AC motor designed for industrial applications requiring very low-speed motion and secure stopping. With 220V AC operating voltage, 13 RPM output speed, and 10 N.m torque, it provides reliable performance for automation systems and machinery.
7,840.00 TL + VAT
KDV Dahil : 9,408.00 TL
Out Of Stock
Notify me when its in stockYN80-220-25 220V 13RPM AC Motor with Brake - 80JB100GN
The YN80-220 is a 25-watt motor with an 80mm reducer diameter, frequently preferred in industrial applications and machine manufacturing. The product's technical drawings, speed, and torque information are provided below. You can contact us for other speed options and bulk purchases.

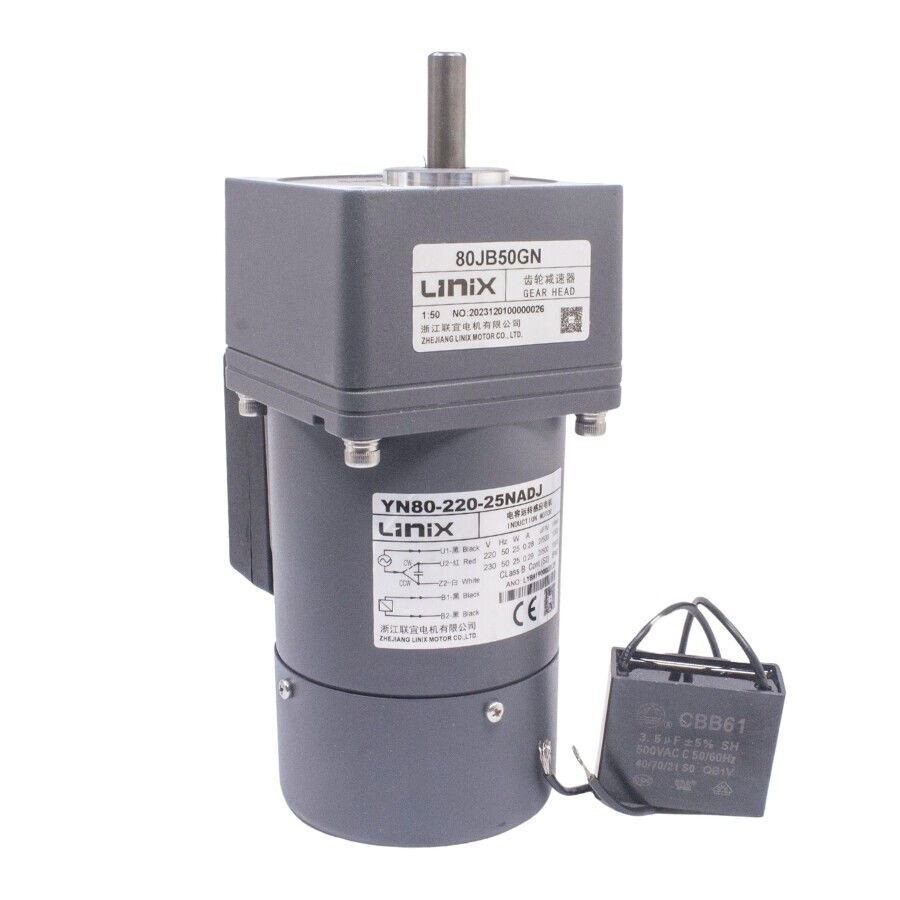

A CBB61 2uF 450VAC capacitor is included with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.28A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 13 RPM
- Torque: 10 N.m
- Shaft Diameter: 10.7 mm
- Shaft Length: 25 mm
- Reducer Diameter: 80 mm
- Motor Length: 122mm
Features
Voltaj
220V AC
