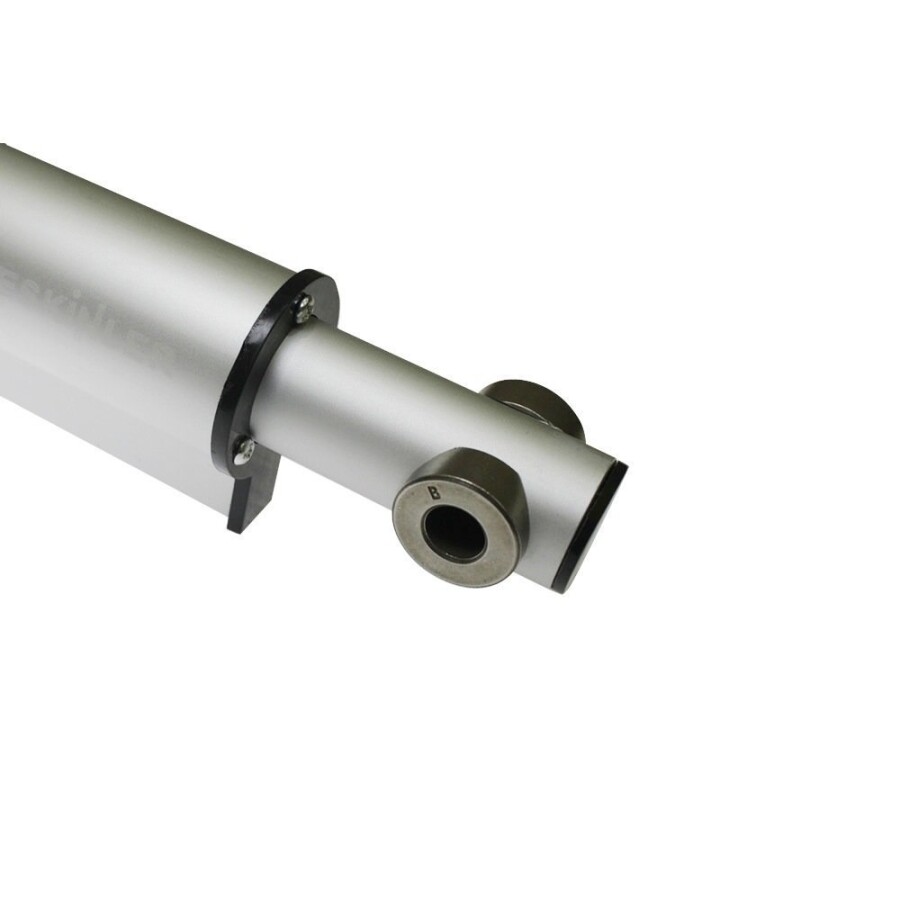

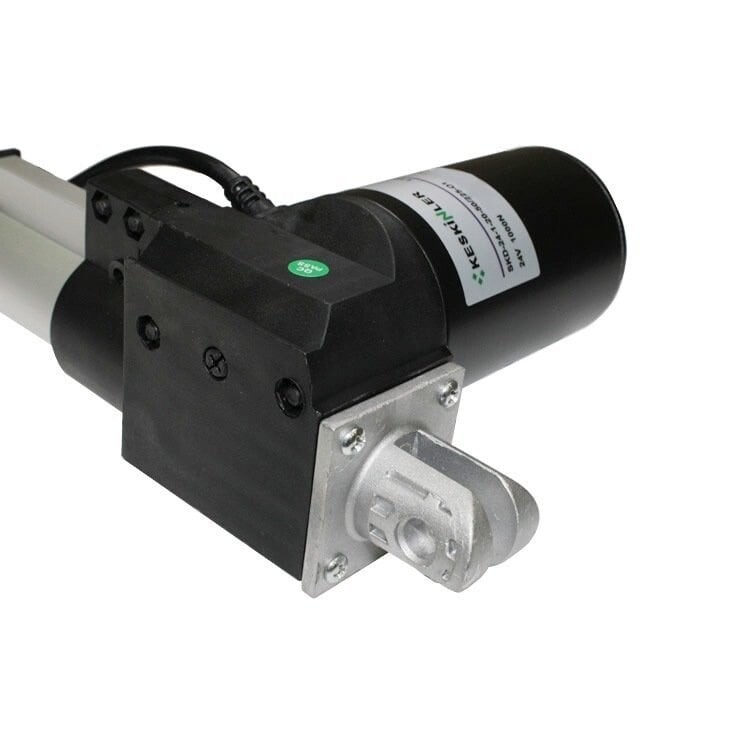

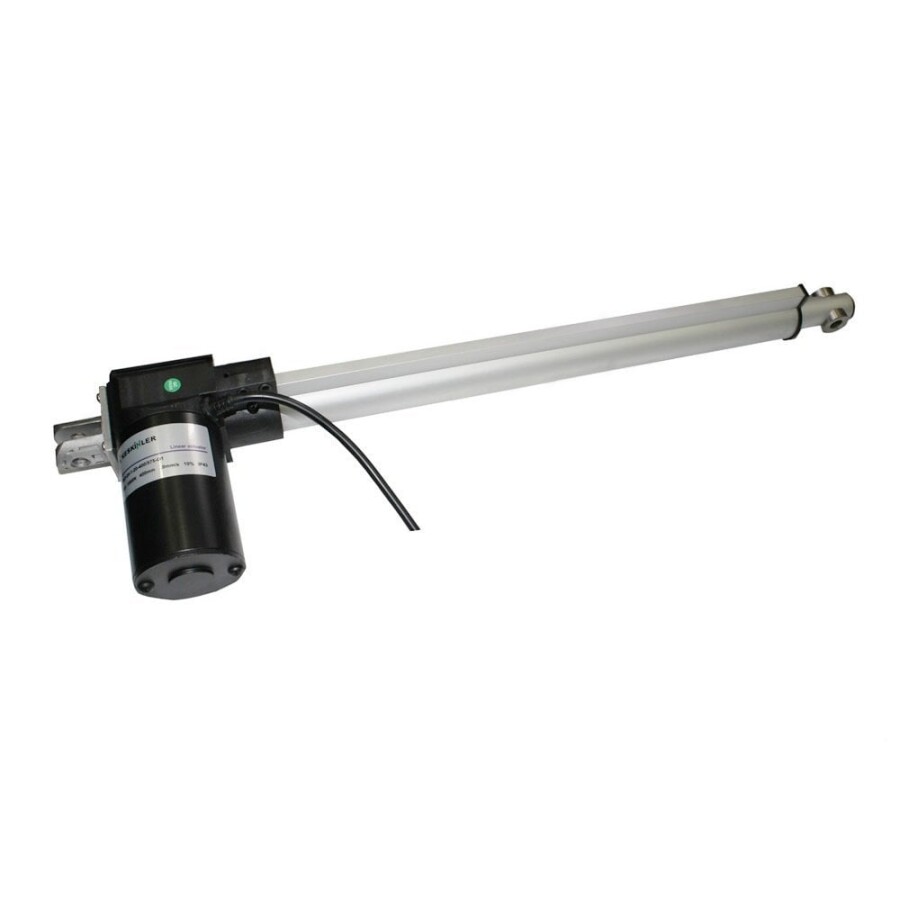

SKD 24V 500mm 6000N Linear Actuator

Product Description

The SKD 24V 500mm 6000N Linear Actuator Motor is a heavy-duty actuator designed for industrial automation and high-load mechanical systems.

The SKD series linear actuators are widely used in industrial applications, manufacturing processes and engineering systems where reliable linear motion is required.

With a 6000N load capacity, this actuator is capable of moving heavy loads efficiently in push and pull motion systems.

The 500 mm stroke length makes it ideal for medium to long-range linear motion applications such as lifting platforms, machine mechanisms and industrial automation systems.

Operating at 24V DC, the actuator can be easily integrated into industrial control systems and automation platforms.

The actuator provides 3.5 mm/s movement speed under load, ensuring stable and controlled motion even when handling heavy loads.

It also features built-in limit switch protection, automatically stopping the motor at the end of travel to prevent overload and extend the actuator’s lifespan.

The -20 ~ 65°C operating temperature range ensures reliable performance in different industrial environments.
