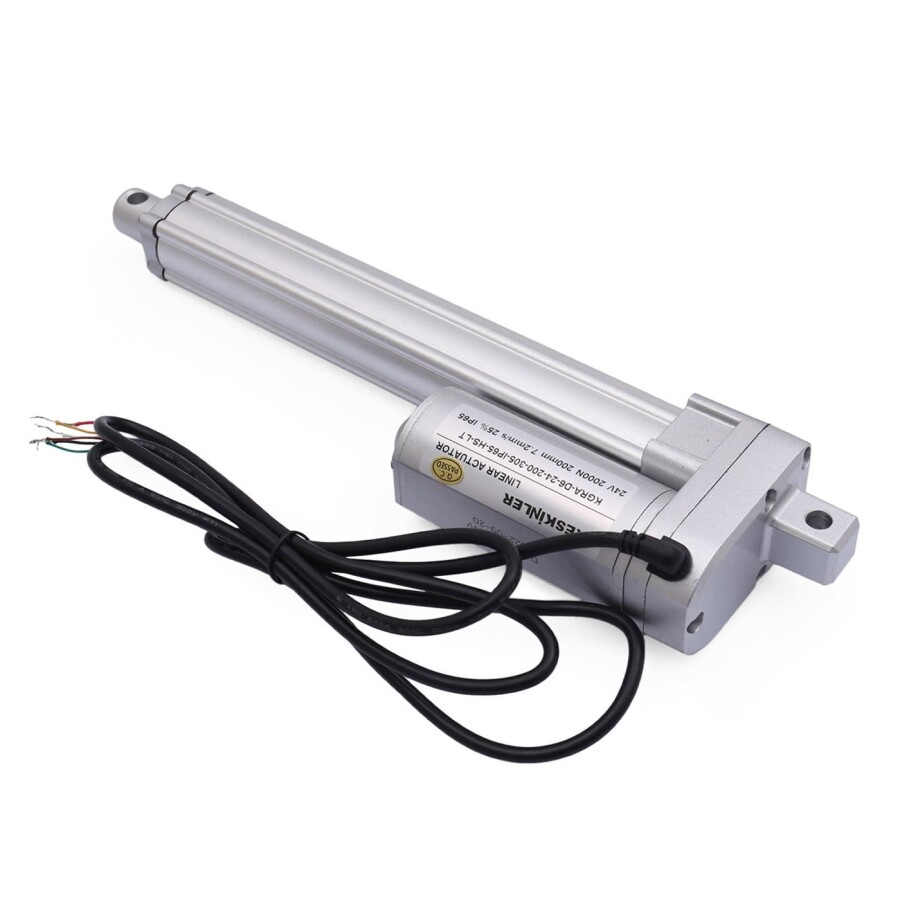

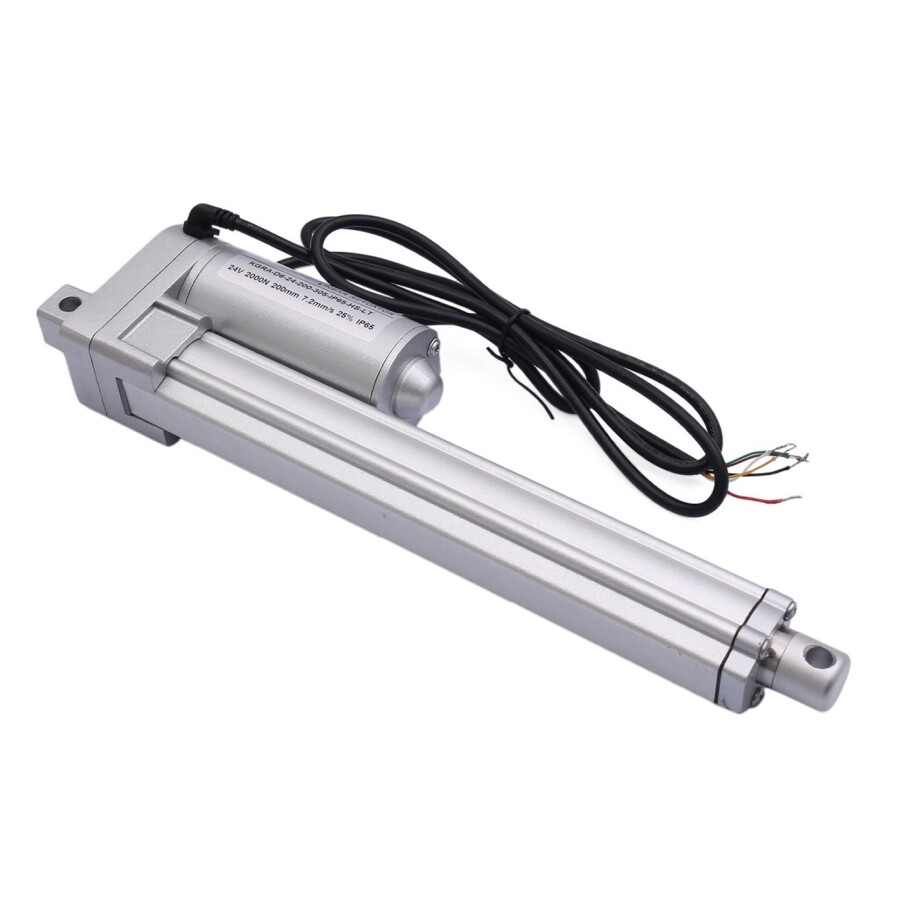

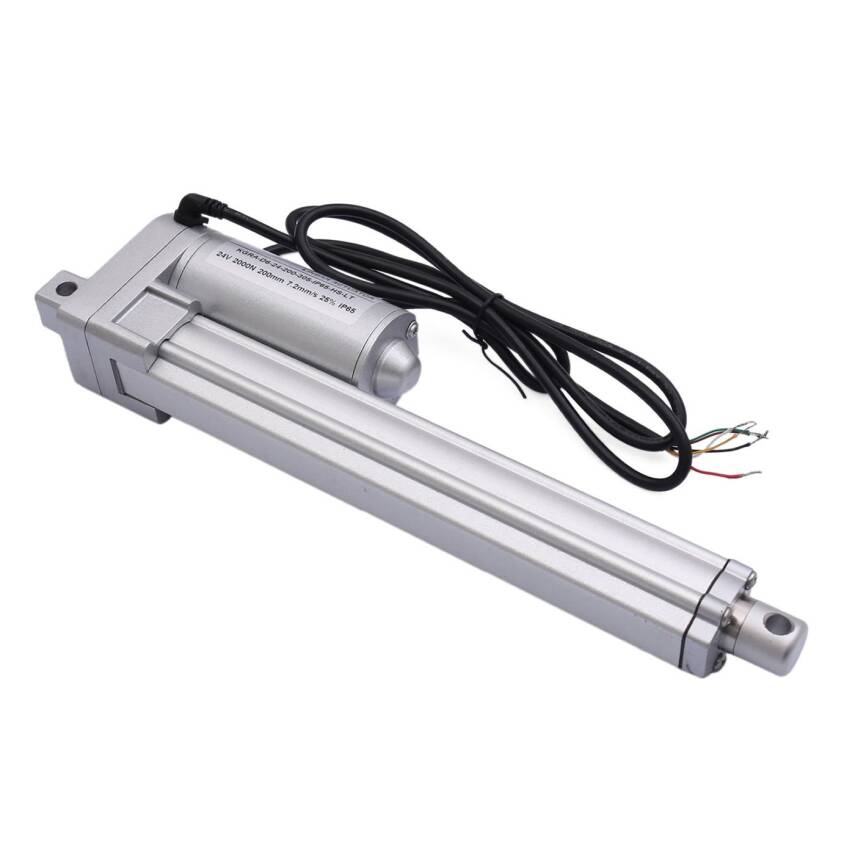

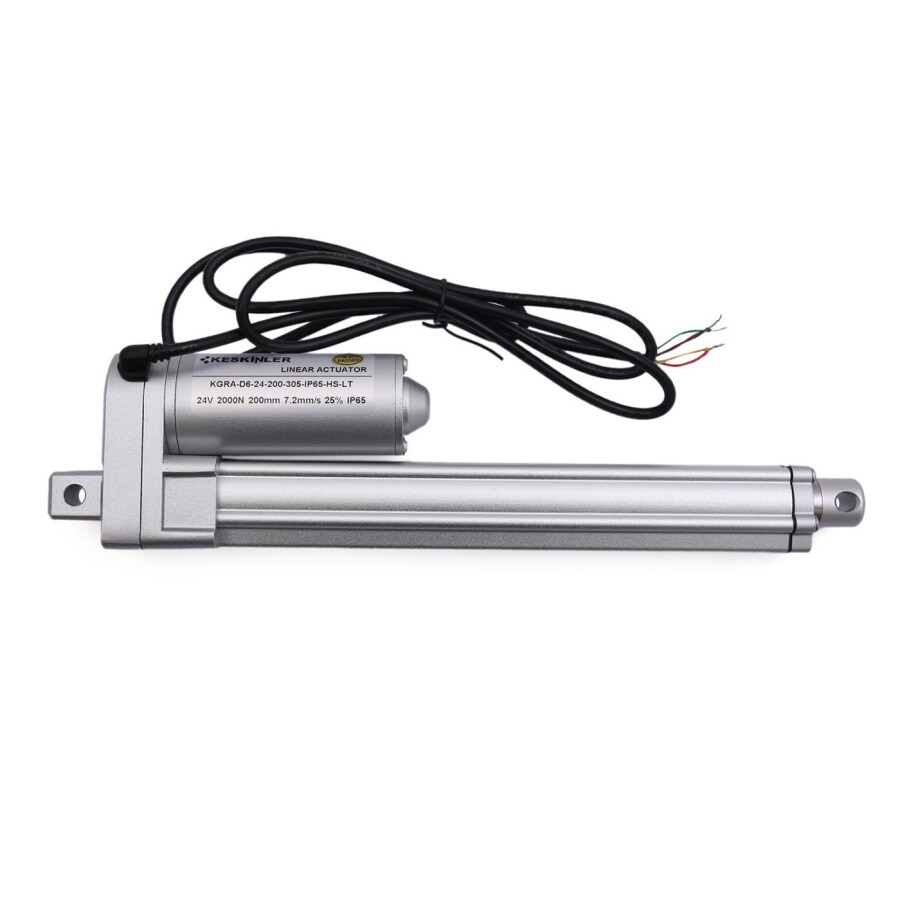

KGRA 24V 200MM 2000N IP65 Hall Sensor Linear Actuator Motor
Product Code : DCKGRA.004
24V linear actuator with 200 mm stroke, 2000N force capacity and hall sensor feedback. Ideal for precise positioning and industrial automation applications.
3,928.50 TL + VAT
KDV Dahil : 4,714.20 TL
Out Of Stock
Notify me when its in stockKGRA 24V 200MM 2000N IP65 Linear Motor with Hall Sensor
The KGRA linear motor has a capacity of 2000N and a travel speed of 7.2mm per second. Limit switches located at the start and end points prevent high current draw and reduce strain on the motor when reaching these points.
KGRA linear motors include a Hall sensor. This makes it suitable for use in areas where precise positioning is required.
Features:
- Supply Voltage: 24V DC
- Force: 2000N
- No-load Current: 1.3A
- Current Under Load: 3A
- Maximum Current: 3.5A
- Speed: 7.2mm/s
- Movement Distance: 200mm
- Limit Switch: Yes
Cable Connections:
- Red: +24V
- Black: GND -24V
- Yellow: +5V
- White: GND
- Brown: H1
- Green: H2
Features
Voltaj
24V DC
