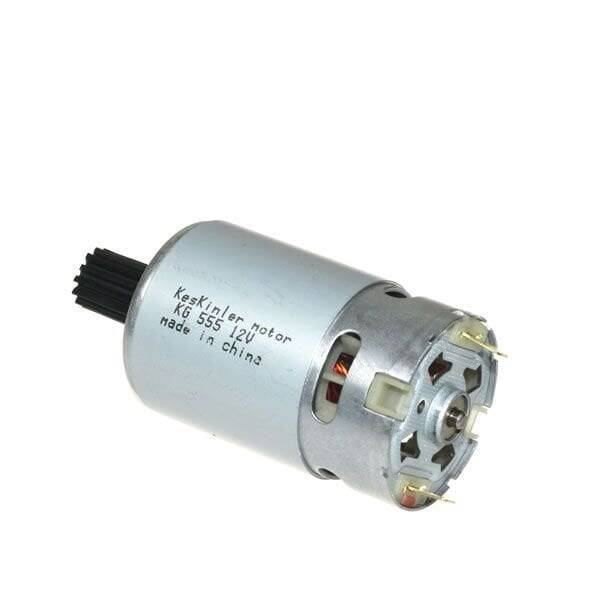

KG555 12V DC Motor

Product Description

The Keskinler KG555 12V DC Motor is a powerful high-speed DC motor designed for mechanical and electronic applications. With an approximate 15000 RPM rotational speed, this motor is suitable for applications such as mini drill systems and other mechanisms requiring high-speed rotation.

Operating at 12V, the motor delivers approximately 14W power, making it suitable for robotics projects, DIY applications and small mechanical systems.

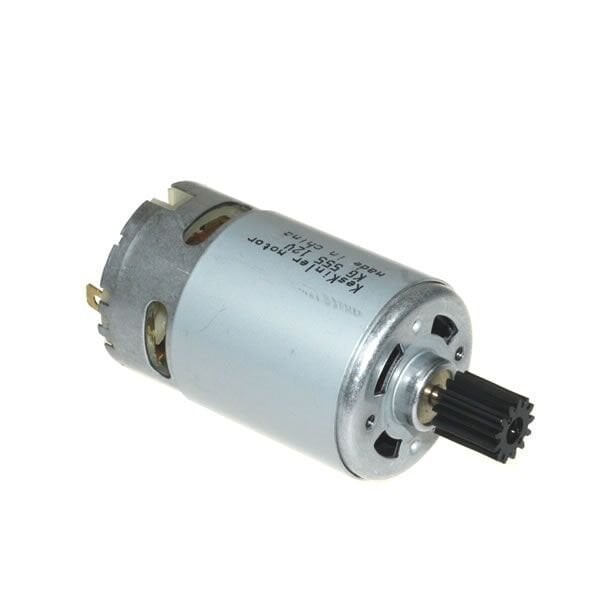

The motor includes a gear attached to the shaft, which cannot be removed manually. If removal is required, the gear must be detached using lathe machining. This ensures a secure connection between the gear and the shaft for stable operation.

The motor has a 35 mm body diameter and 82 mm total length, offering a compact yet powerful structure. It also features a 3.5 mm shaft diameter and 15 mm shaft length for easy integration into various mechanical systems.

The gear diameter is 11.5 mm with a 13 mm gear width, enabling use in mechanical transmission systems. The motor draws approximately 1A no-load current, providing reliable performance in high-speed applications.
