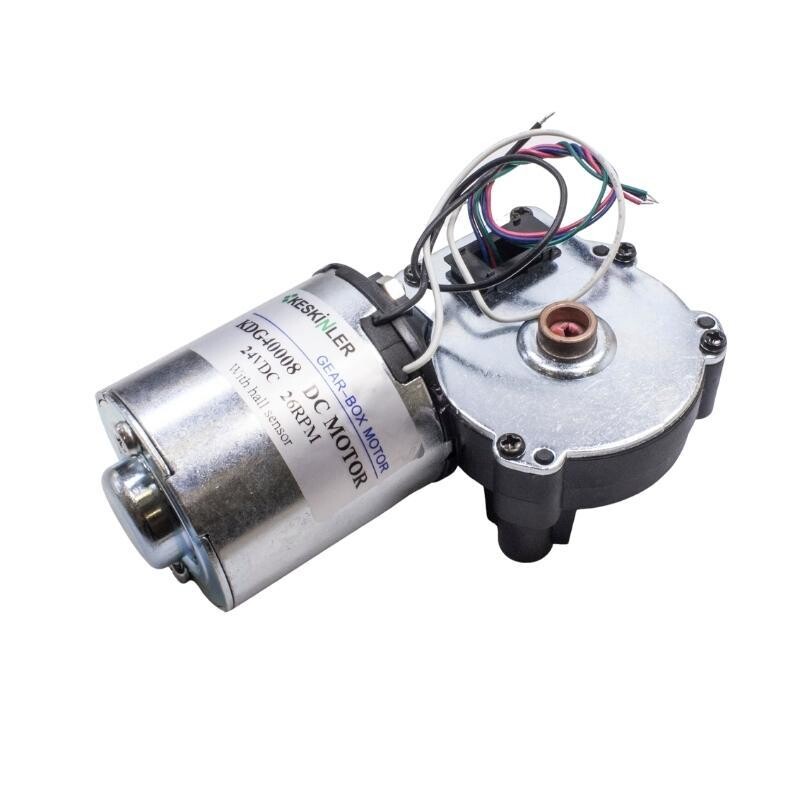

KDG40008 24V 26RPM DC Motor
Product Code : AUTO.019
A 24V DC geared motor with 26 RPM low-speed output, hexagonal gearbox shaft design, and magnetic ring sensor wiring, suitable for custom mechanical and linear motion applications.
1,715.00 TL + VAT
KDV Dahil : 2,058.00 TL
Out Of Stock
Notify me when its in stockKDG40008 24V 26RPM DC Motor

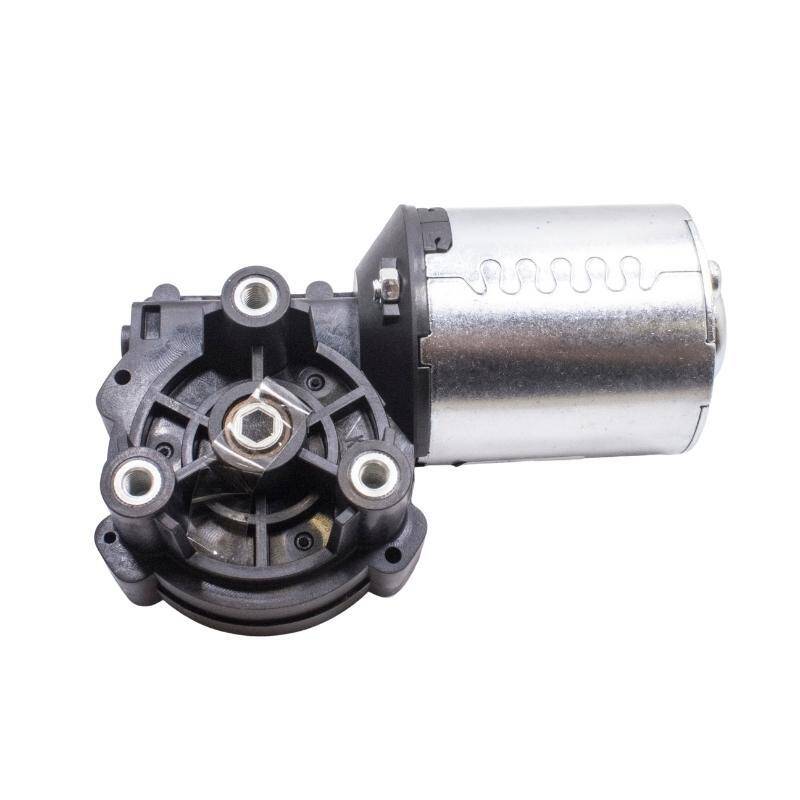

The KDG40008 is a product with a standard hexagonal hole in the reducer section, allowing you to mount the appropriate shaft and perform various projects. You can also make a linear motor with this DC motor.
Specifications:
- Voltage: 24VDC
- Speed: 26 RPM
- Current: 0.6A Max.
- Hi-Pot Test: 550VAC/0.5mA/1S;
- Insulation Class: B
- Screw Loosening Force: 8kg.fcm
- Noise: 48dB max (test distance 30cm)
- Performance Specification (2-pole magnetic ring):
Cable Connections:
- White: +
- Black: -
- Red: VCC
- Green: GND
- Blue: OUT
Features
Voltaj
24V DC
