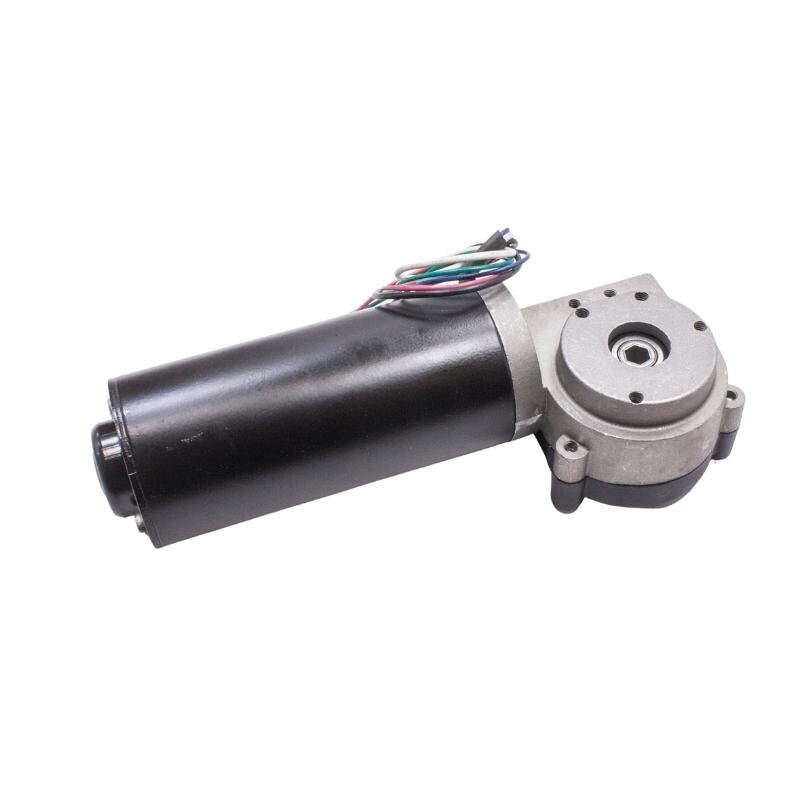

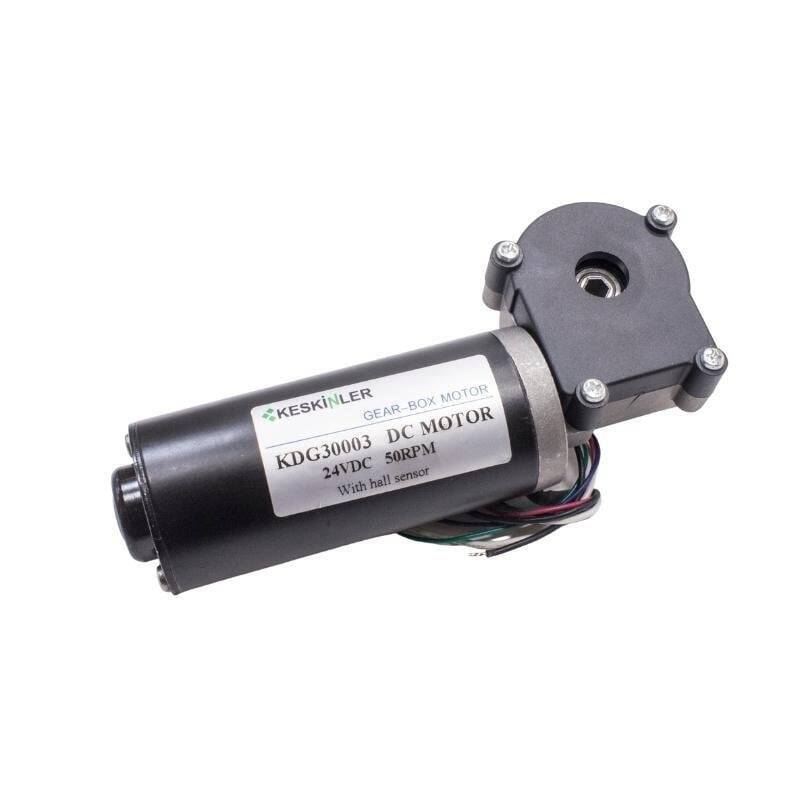

KDG30003 24V 50RPM DC Motor

Product Code : AUTO.018

A 24V DC geared motor with 50 RPM low-speed output, hexagonal gearbox shaft design, and magnetic ring sensor wiring, suitable for custom mechanical and linear motion applications.

1,575.00 TL + VAT

KDV Dahil : 1,890.00 TL

Out Of Stock

Notify me when its in stock

Recommend It Price Alert

Yeni Ürünler

Toptan Satış

Mağazadan Satış

Aynı Gün Kargo

KDG30003 24V 50RPM DC Motor

The KDG30003 is a product with a standard hexagonal hole in the reducer section, allowing you to mount the appropriate shaft and perform various projects. You can also make a linear motor with this DC motor.

Features:

Voltage: 24VDC
Speed: 50 RPM
Current: 0.6A Max.
Hi-Pot Test: 550VAC/0.5mA/3S;
Insulation Class: B
Screw Loosening Force: 7kg.fcm
Noise: 48dB max (test distance 30cm)
Performance Specification (2-pole magnetic ring)

Cable Connections:

White: +
Black: -
Red: VCC
Green: GND
Blue: OUT

Features

Voltaj

24V DC

3D Çizim Dosyası

Teknik Çizim
