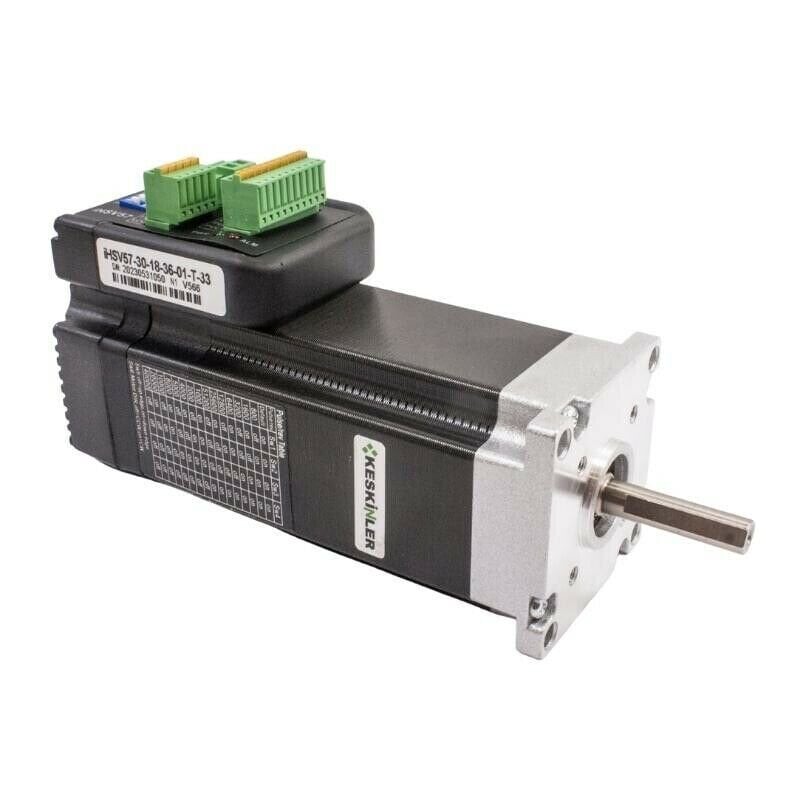

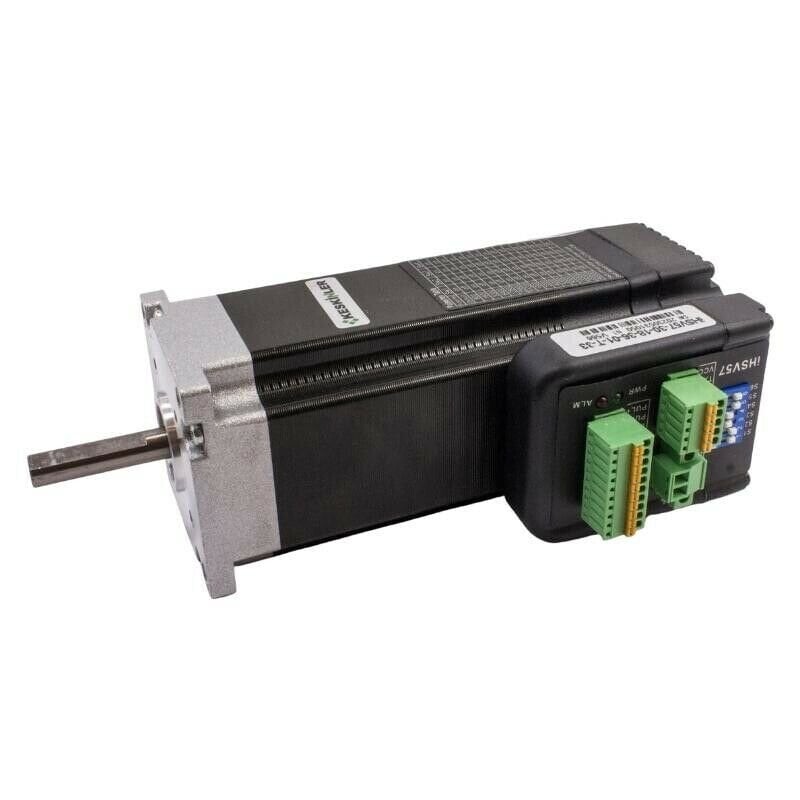

iHSV57-30-18 Nema 23 Servo Motor - With Motor Driver

Name: iHSV57-30-18 Nema 23 Servo Motor - With Motor Driver
Brand: Keskinler
SKU: NEMA23.011
Price: 8316.00 TRY
Availability: InStock

Product Code : NEMA23.011

6,930.00 TL + VAT

KDV Dahil : 8,316.00 TL

Recommend It Price Alert

Yeni Ürünler

Toptan Satış

Mağazadan Satış

Aynı Gün Kargo

iHSV57-30-18 Nema 23 Servo Motor - With Motor Driver

The iHSV57-30-18 Nema 23 Servo Motor - With Motor Driver, iHSV57-xx, can be used in various applications such as laser cutters, laser markers, high-precision XY tables, labeling machines, CNC milling machines, etc. The pulse value can be adjusted from the dip switch on the driver.

Features

Number of Phases: 3
Supply Voltage: 36V DC
Output Power: 180W
Rotation Speed: 4200 RPM (Recommended speed 3000 RPM)
Idle Current: 0.65A
Rated Current: 7.5A
Holding Torque: 0.6 N.M

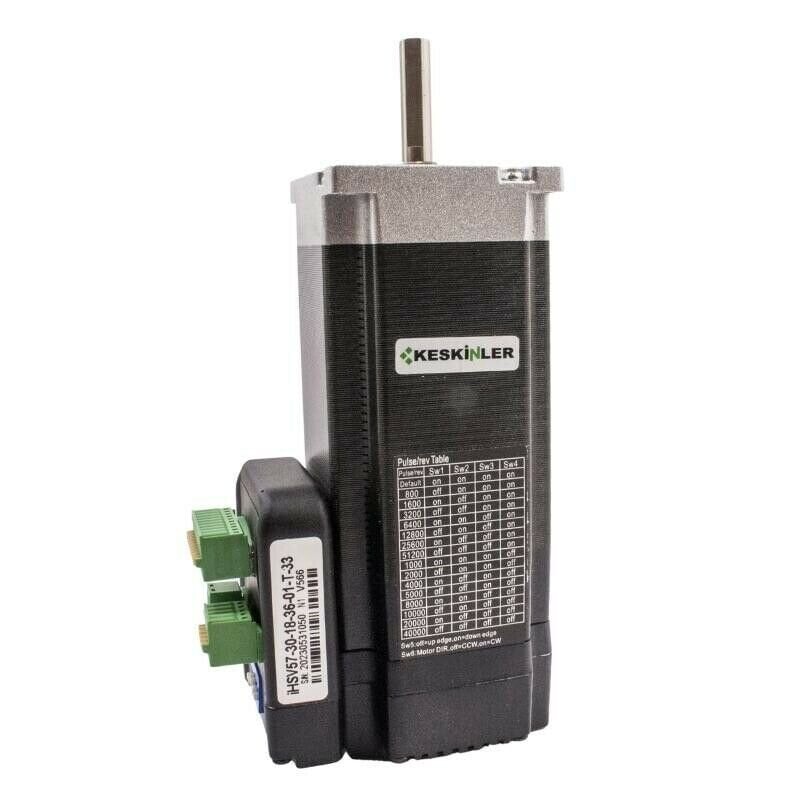

Pulse/Rev Table

Pulse/Rev	Sw1	Sw2	Sw3	Sw4
Default	on	on	on	on
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
51200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off
