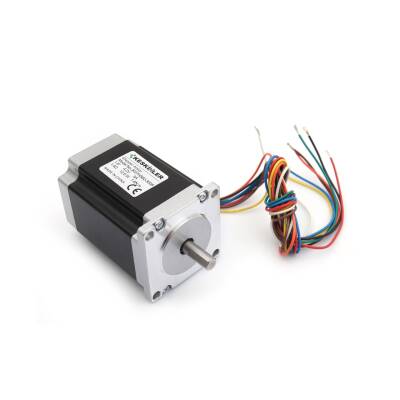

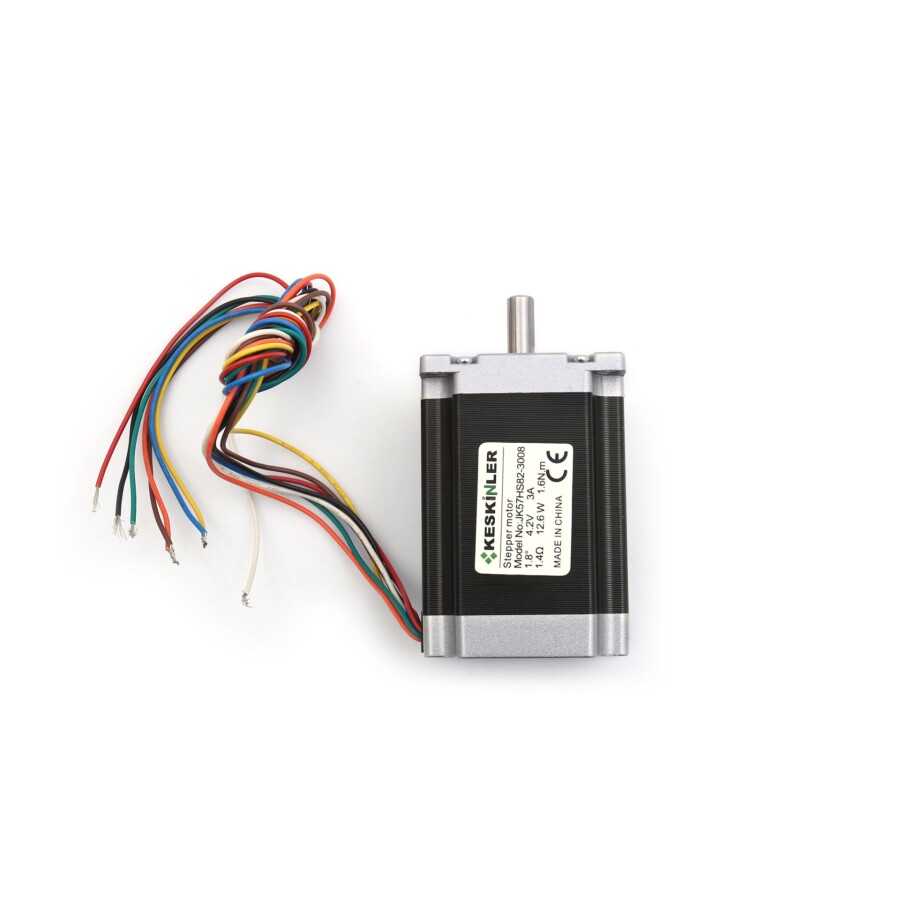

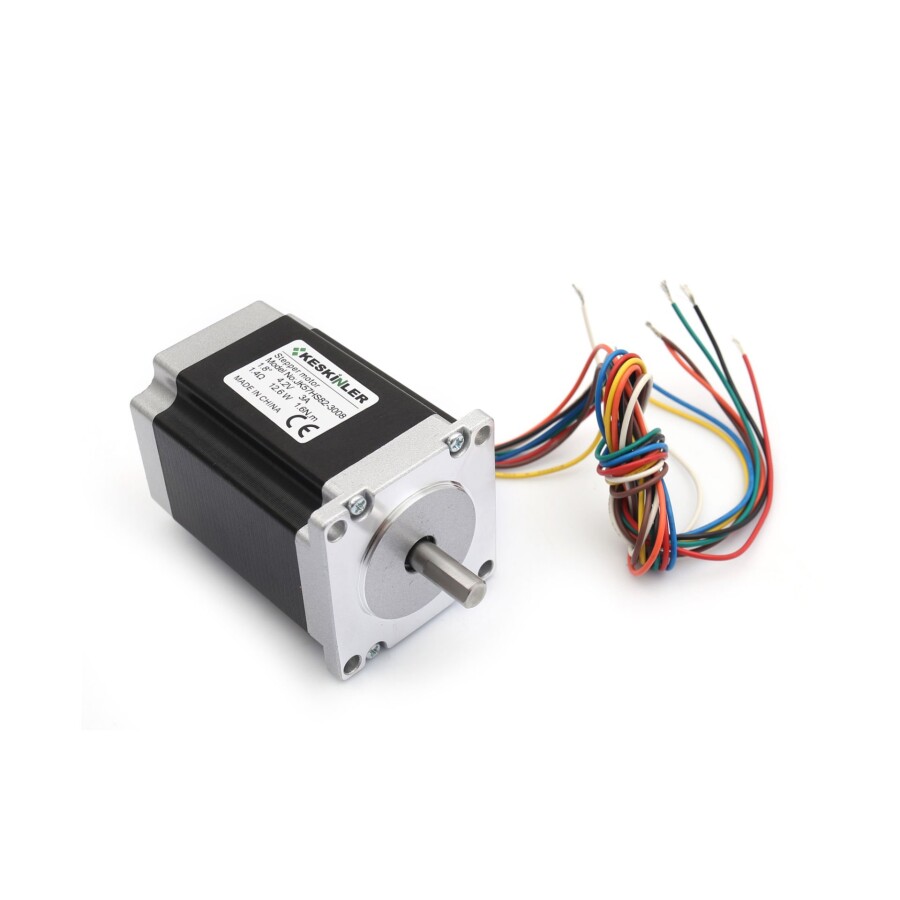

JK57HS82 NEMA23 Stepper Motor
The JK57HS82 NEMA23 Stepper Motor is a motor type that can be used in various production machines, especially in projects requiring precise positioning, in machine manufacturing, and in various production machines.
Features:
- Number of Phases: 4
- Angle Value: 1.8 degrees
- Voltage: 4.2V
- Peak Current Value: 3 A
- Phase Resistance: 1.4 Ohms
- Torque: 1.6 kg.cm
- Weight: 1.4 kg
Cable Colors:
- Red: A+
- Yellow: A-
- Blue: C-
- Black: C+
- White: B+
- Orange: B-
- Brown: D-
- Green: D+
