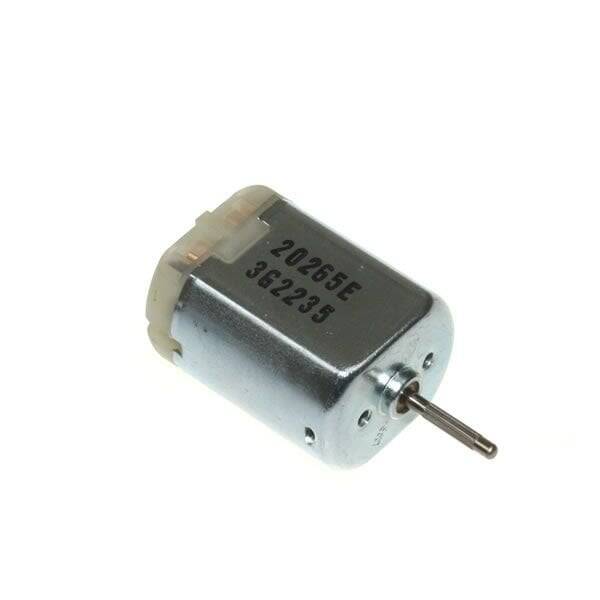

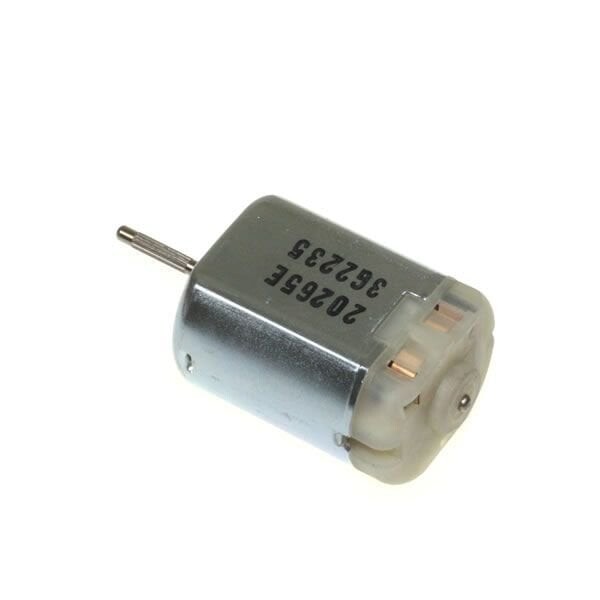

RS-280 12V 10500RPM Door Lock Motor

Product Description

The RS-280 12V 10500RPM Door Lock Motor is a compact DC motor designed primarily for automotive central locking systems. It provides reliable and fast operation in door locking and unlocking mechanisms.

Operating at 12V, the motor delivers approximately 10500 RPM rotational speed, allowing efficient movement in door lock mechanisms.

The motor includes a gear system designed for mechanical transmission in locking applications. It features a 12.8 mm gear diameter and 5.2 mm gear width, ensuring compatibility with door lock mechanisms.

With a 24 mm motor diameter and 30.5 mm body length, the RS-280 motor offers a compact design suitable for installation in limited spaces. The motor also features a 2 mm shaft diameter and 28 mm shaft length, making it compatible with various mechanical systems.

Weighing approximately 43 grams, the motor is lightweight and suitable for automotive applications, robotics projects and mechanical prototypes.
