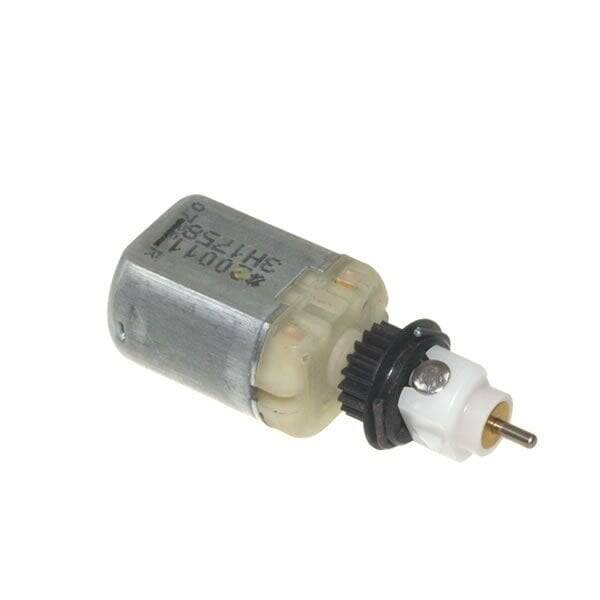

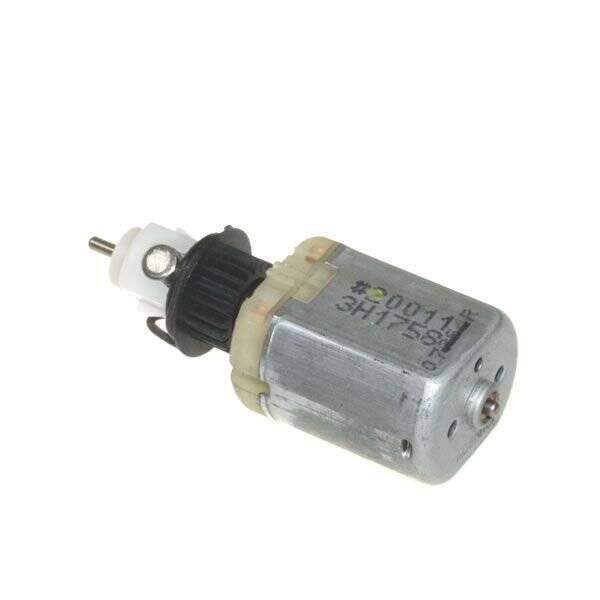

Compact 12V DC motor with 10500RPM speed designed for automotive door lock systems and mechanical applications.
Out Of Stock
Notify me when its in stockThe 12V 10500RPM Door Lock Motor is a compact DC motor designed primarily for automotive door lock systems. It provides reliable performance in central locking mechanisms and other mechanical locking applications.
Operating at 12V, the motor delivers 10500 RPM rotational speed, enabling fast and efficient operation in door lock mechanisms.
The motor includes a built-in gear designed for mechanical transmission in locking systems. With a 12.8 mm gear diameter and 5.2 mm gear width, it ensures compatibility with door locking mechanisms.
The motor features a 24 mm body diameter and 30.5 mm body length, making it suitable for installations in compact spaces. It also includes a 2 mm shaft diameter and 28 mm shaft length, allowing integration into various mechanical systems.
With a weight of approximately 43 grams, the motor is lightweight and suitable not only for automotive applications but also for robotics projects and mechanical prototypes.
