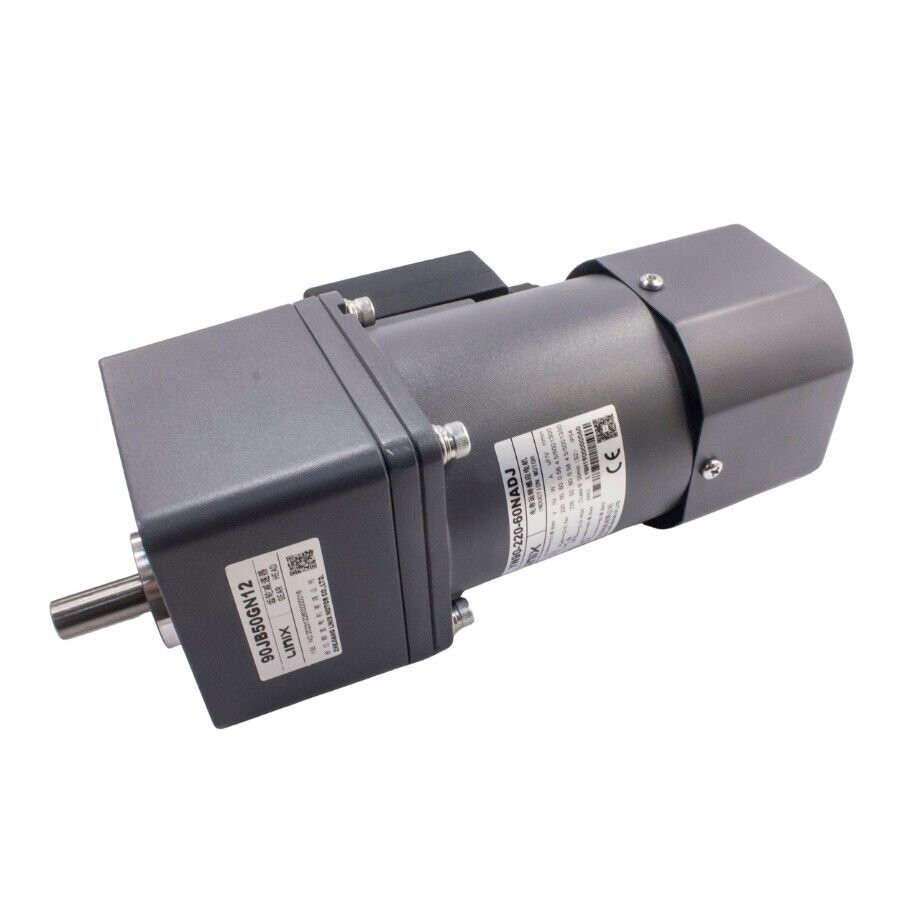

YN90-220-60 220V 26RPM AC Motor with Brake - 90JB50GN
The YN90-220 is a 90mm gear diameter, 60-watt motor frequently preferred in industrial applications and machine manufacturing. The product's technical drawings, speed, and torque information are provided below. You can contact us for other speed options and bulk purchases.

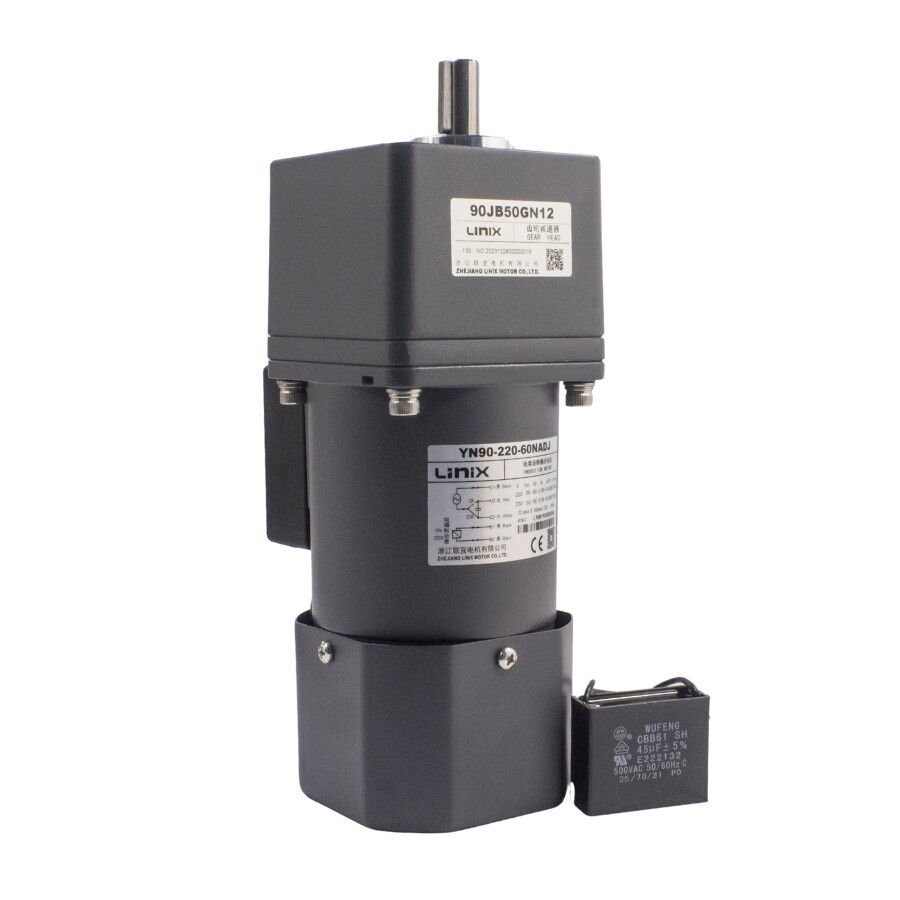

A CBB61 4.5uF 450VAC capacitor is included with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.56A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 26 RPM
- Torque: 30 Nm
- Shaft Diameter: 12.7 mm
- Shaft Length: 25 mm
- Reducer Diameter: 90 mm
- Motor Length: 160mm
