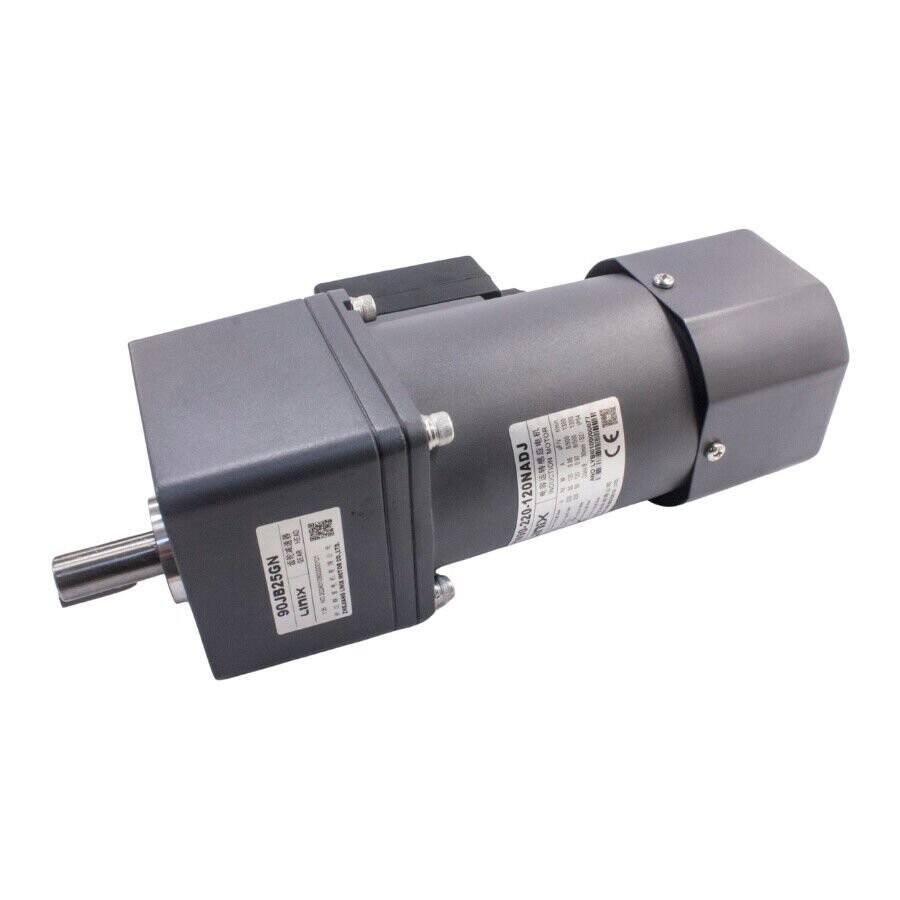

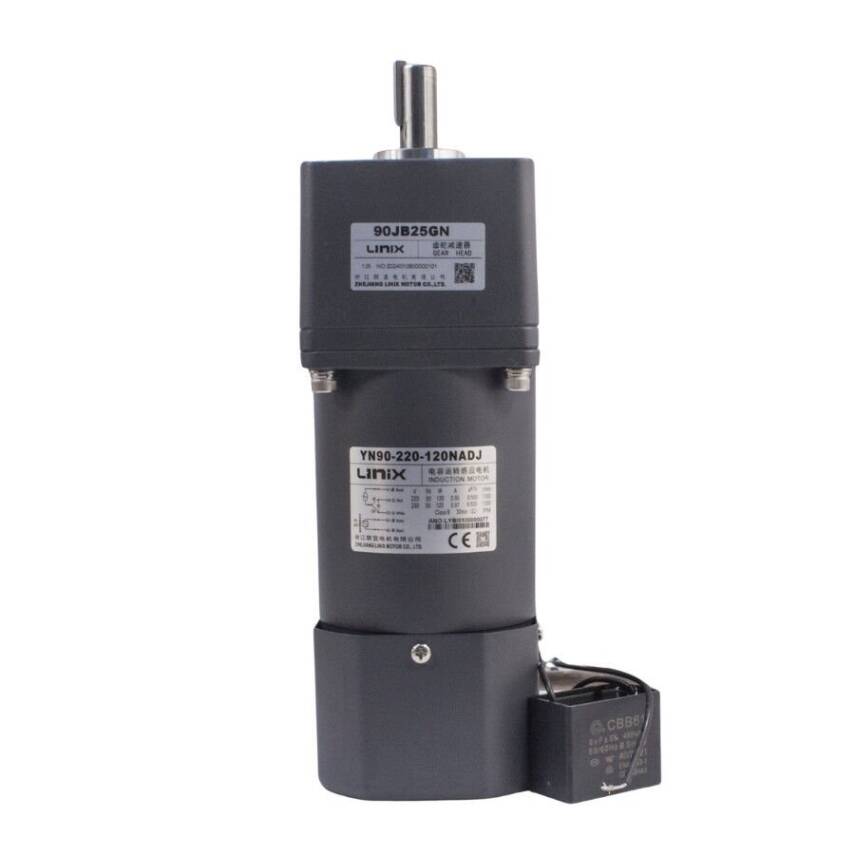

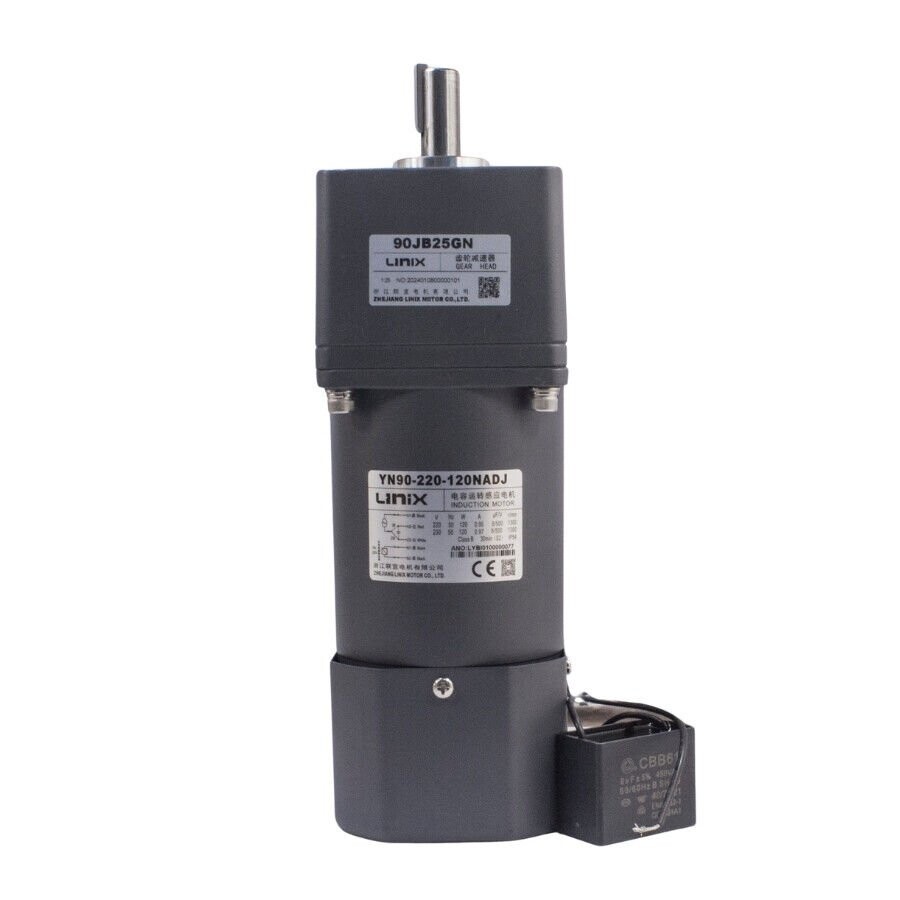

YN90-220-120 220V 52RPM AC Motor with Brake - 90JB25GN
YN90-220 This 120-watt motor with a 90mm reducer diameter is frequently preferred in industrial applications and machine manufacturing. The product's technical drawing, speed, and torque information are provided below. You can contact us for other speed options and bulk purchases.
A CBB61 8uF 450VAC capacitor is included with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.95A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 52 RPM
- Torque: 16.1 Nm
- Shaft Diameter: 15.7 mm
- Shaft Length: 25 mm
- Reducer Diameter: 90 mm
- Motor Length: 175mm
