X0910 10A 9-60V PWM DC Motor Direction and Speed ​​Control Module

Product Code : DCSRC.018
1,554.00 TL + VAT
KDV Dahil : 1,864.80 TL

Out Of Stock

Notify me when its in stock
Recommend It Price Alert
Yeni Ürünler
Toptan Satış
Mağazadan Satış
Aynı Gün Kargo

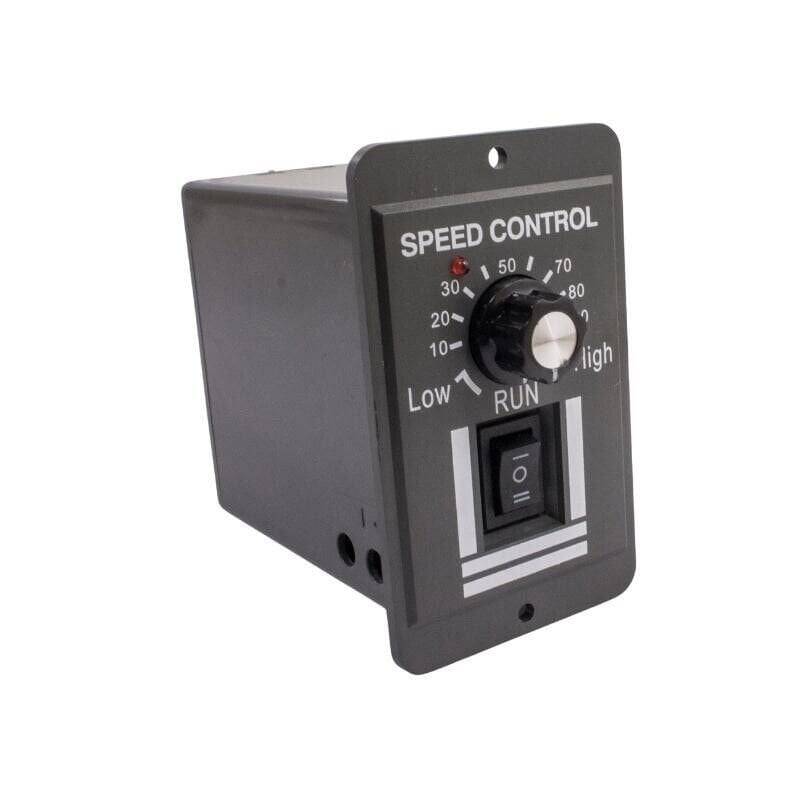

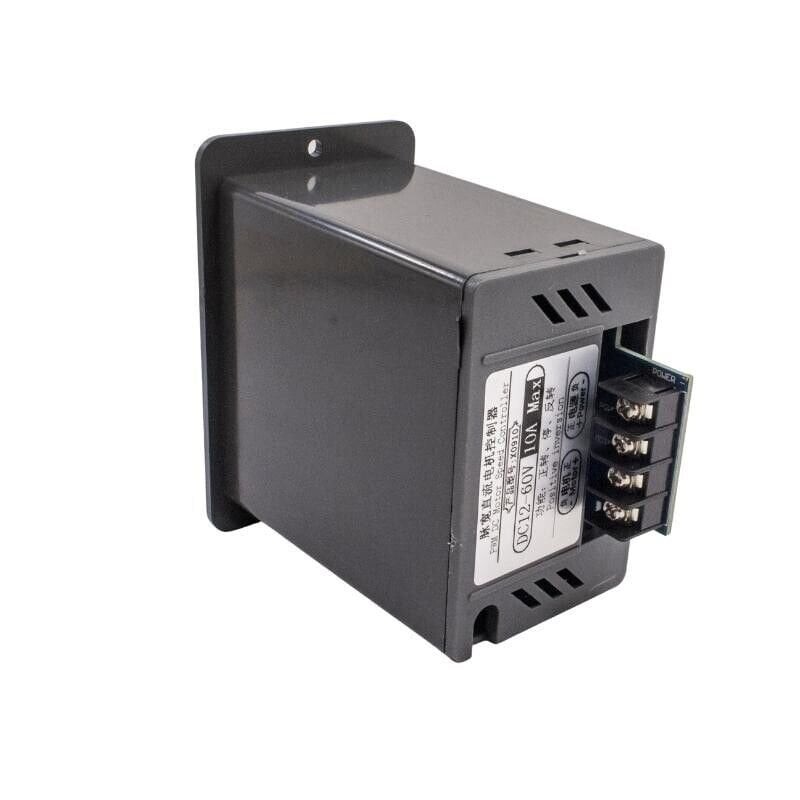

X0910 10A 9-60V PWM DC Motor Direction and Speed ​​Control Module

The X0910 10A 9-60V PWM DC Motor Direction and Speed ​​Control Module is a durable and long-lasting motor direction and speed control module made of high-quality materials. It can be used with 9-60V DC motors up to 10 amps and can adjust the speed and direction of rotation. You can adjust the direction of rotation or stop the motor using the switch.

The "I" position on the switch sets forward rotation, the "O" position stops the motor, and the "II" position sets reverse rotation.

Features

  • Model: X0910
  • Supply Voltage: 9-60V DC
  • Peak Current: 10A
  • Continuous Current: 6A
  • Dimensions: 99x60x90mm

Pinout

keskinler-surucu-pinout



Arayüz

keskinler-surucu-yon-kontrol



Boyut

keskinler-surucu-boyut
