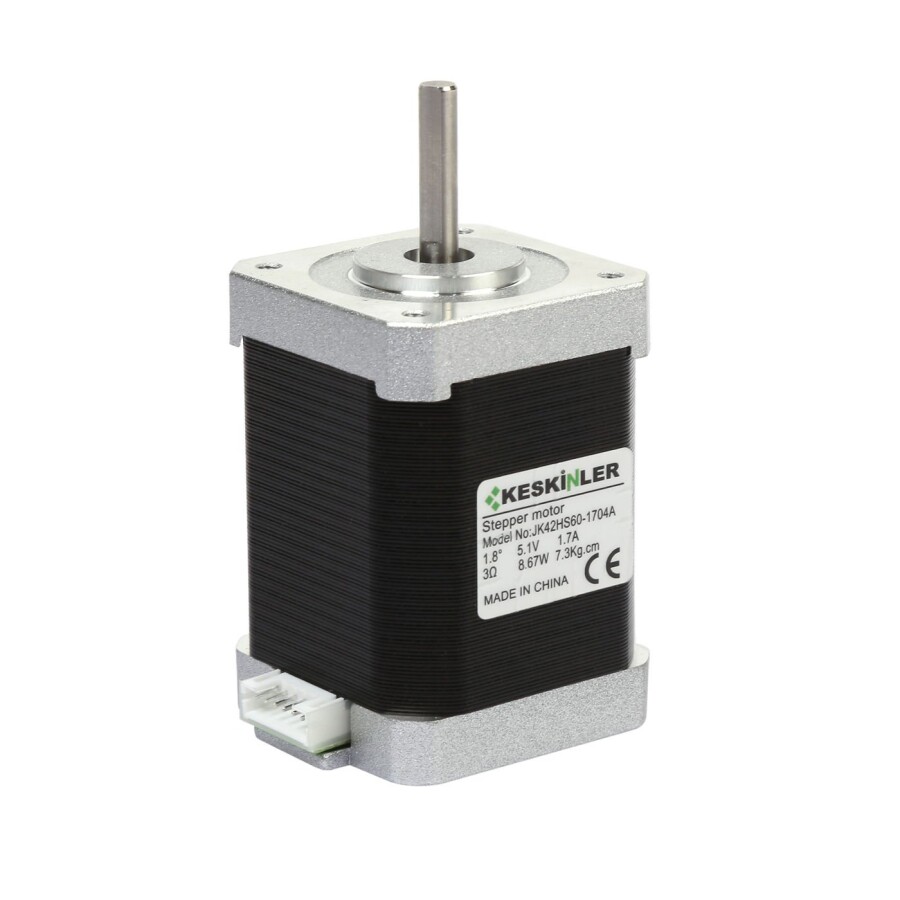

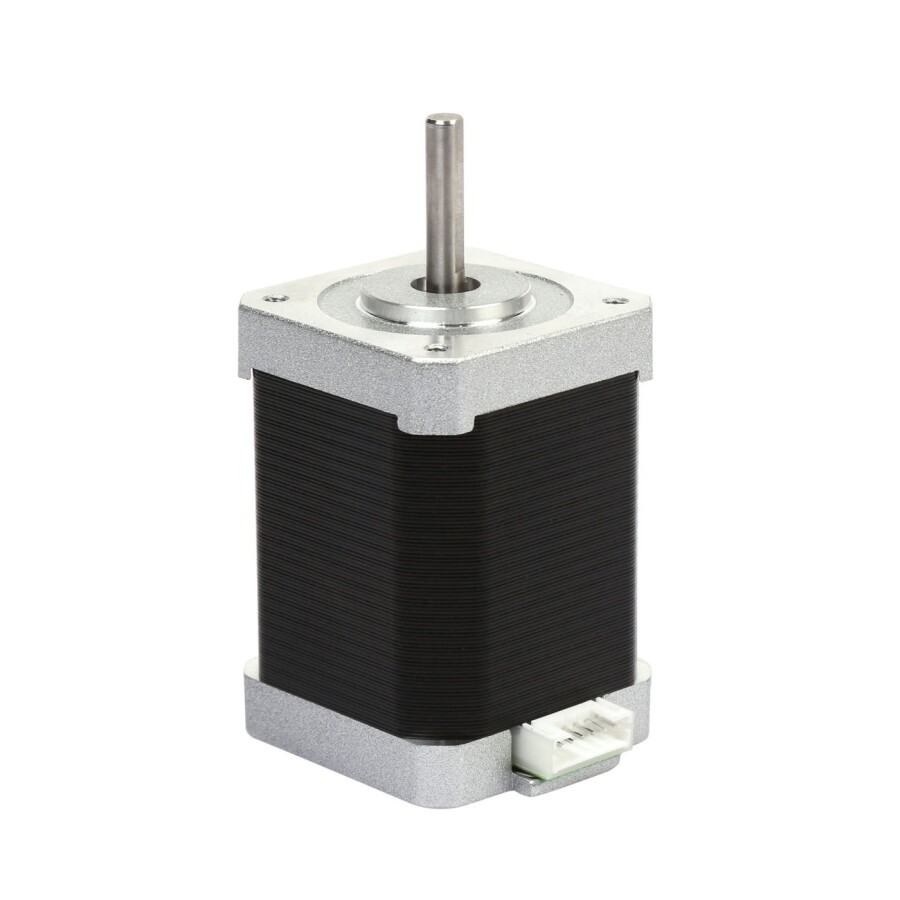

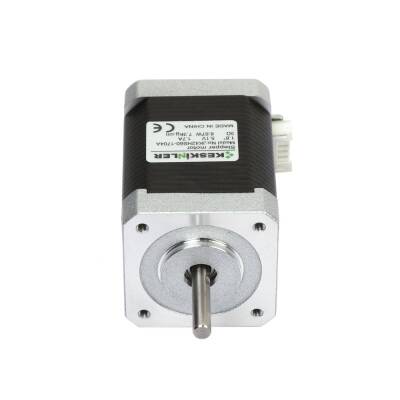

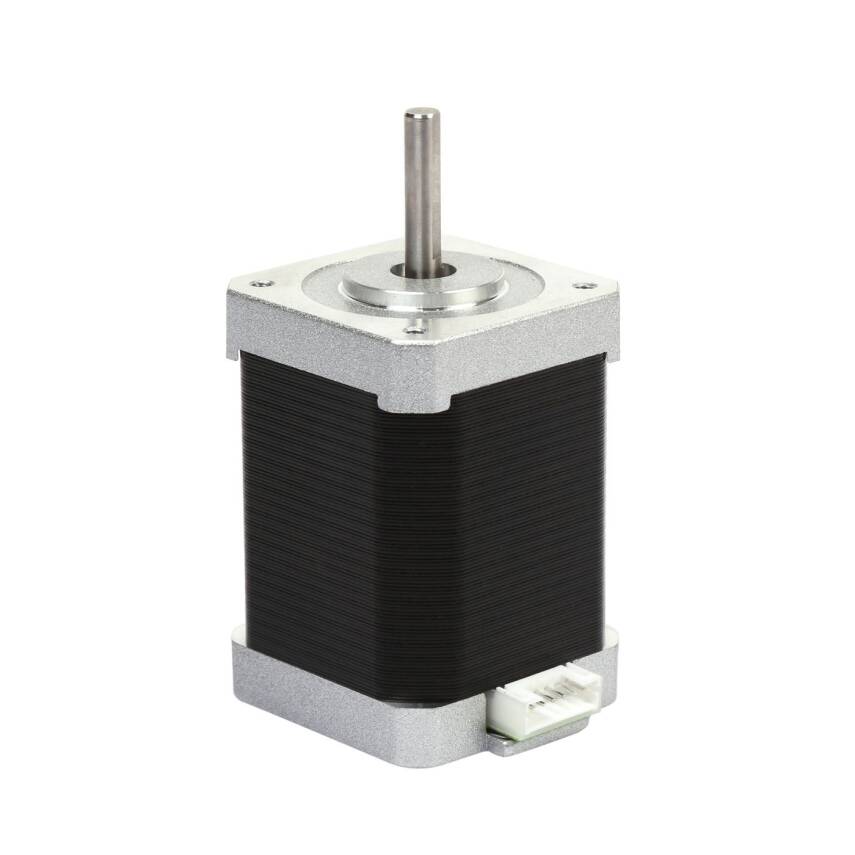

JK42HS60 NEMA17 Stepper Motor
Product Code : NEMA17.007
Reliable NEMA17 stepper motor designed for precise positioning and motion control in CNC machines, 3D printers, and automation systems.
1,372.00 TL + VAT
KDV Dahil : 1,646.40 TL
Out Of Stock
Notify me when its in stockJK42HS60 NEMA17 Stepper Motor
Product Description
The JK42HS60 NEMA17 stepper motor is designed for applications requiring precise positioning and reliable motion control. It is widely used in machine manufacturing, CNC machines, 3D printers, and industrial automation systems.
With its 1.8° step angle, the motor provides accurate positioning and stable motion performance. Its compact structure and reliable electrical characteristics make it suitable for demanding environments.
The NEMA17 standard frame size allows easy integration with a wide range of stepper motor drivers and mechanical systems.
Technical Specifications
Electrical Specifications
-
Motor Type: Stepper Motor
-
Model: JK42HS60
-
Number of Phases: 2
-
Step Angle: 1.8°
-
Voltage: 5.1 V
-
Peak Current: 1.7 A
-
Phase Resistance: 3 Ω
Mechanical Specifications
-
Motor Standard: NEMA17
-
Torque: 7.3 Kg·cm
-
Weight: 0.55 kg
Kablo Renkleri:
- Siyah: A
- Yeşil: C
- Kırmızı: B
- Mavi: D
Teknik Çizim:
