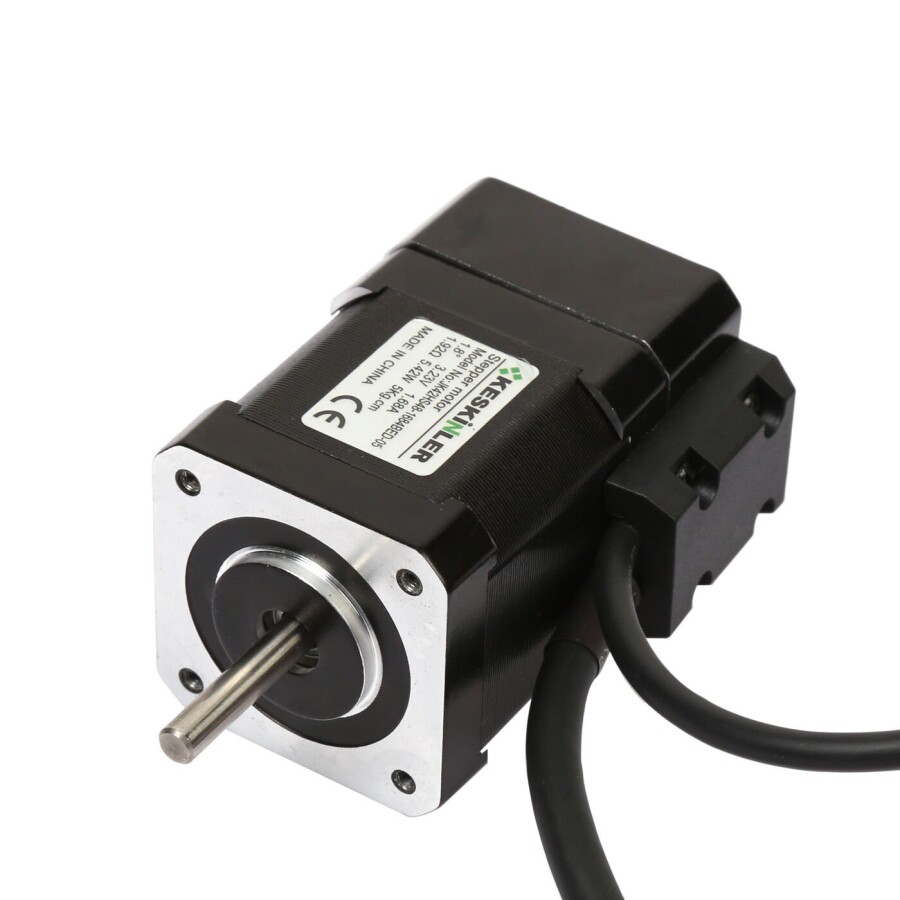

JK42HSN48 NEMA17 Encoder Stepper Motor

Product Description

The JK42HSN48 NEMA17 encoder stepper motor is designed for applications requiring precise positioning and reliable motion control. It is widely used in machine manufacturing, CNC systems, 3D printers, and industrial automation equipment.

Encoder stepper motors are also known as closed-loop stepper motors. Thanks to the encoder feedback system, the motor position is continuously monitored, providing more accurate and stable motion control.

With its compact NEMA17 frame size, the motor can be easily integrated with various stepper drivers and mechanical systems, making it ideal for precision motion applications.

Technical Specifications

Motor Specifications

• Motor Type: Encoder Stepper Motor

• Model: JK42HSN48

• Motor Standard: NEMA17

• Step Angle: 1.8°

• Voltage: 2.8 V

• Peak Current: 1.68 A

• Torque: 5 Kg·cm

• Weight: 0.34 kg

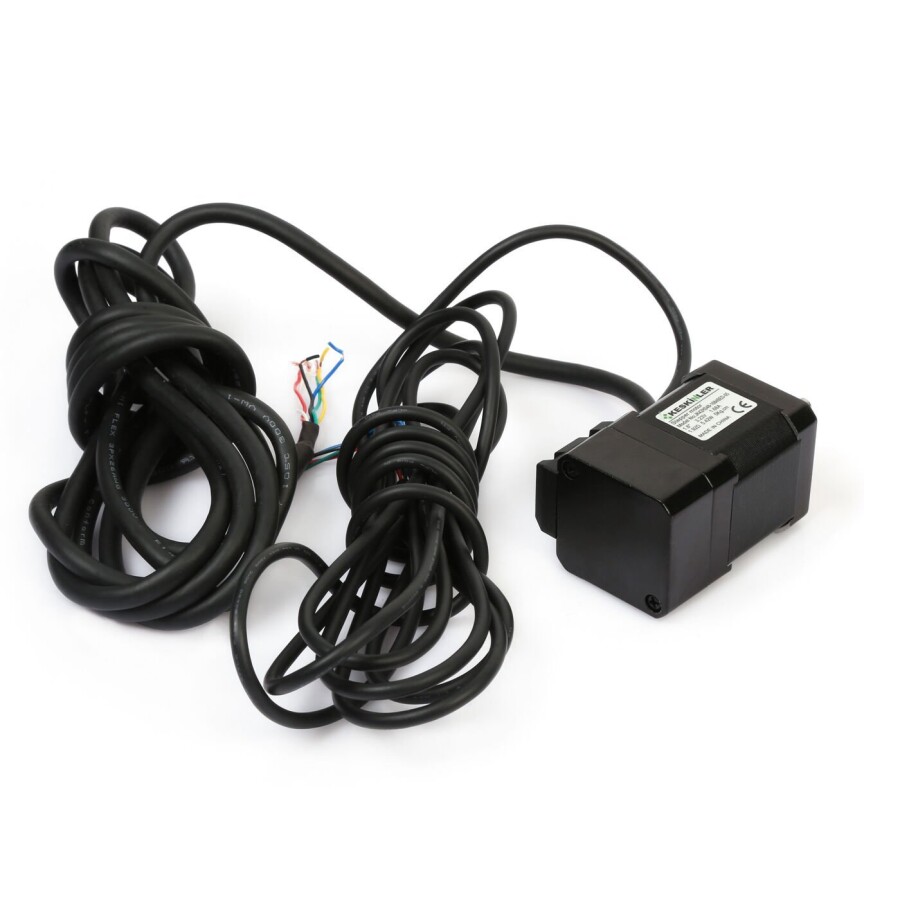

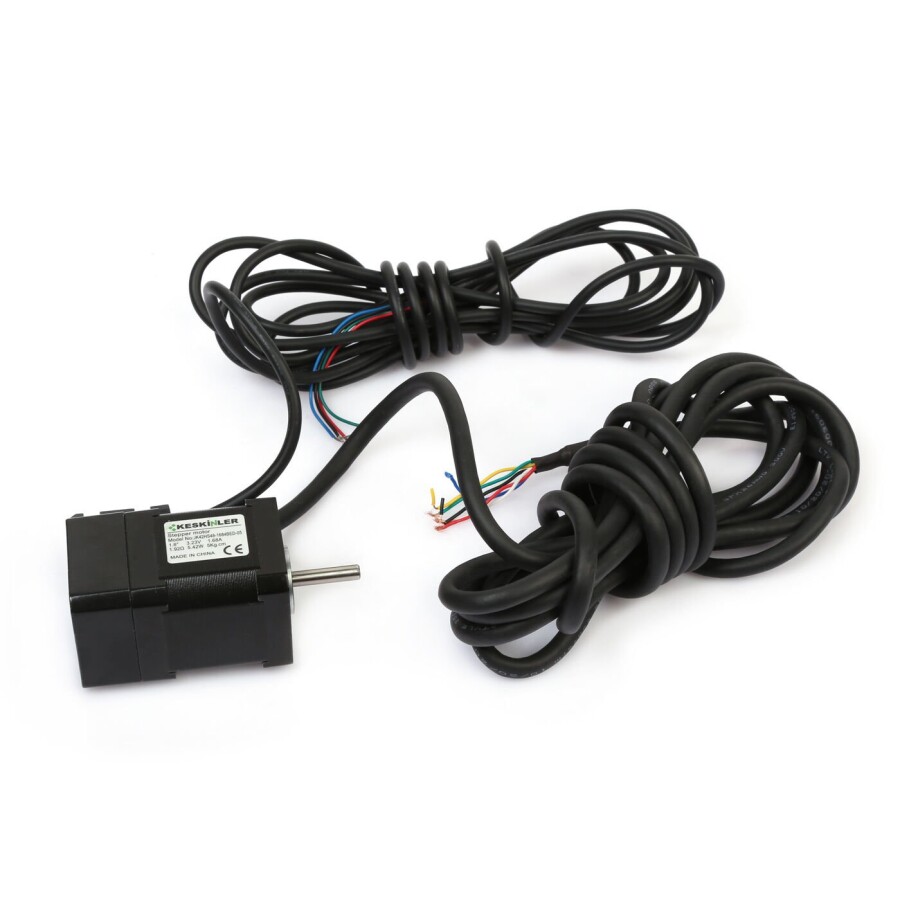

Motor Cable Colors

• Black: A

• Green: C

• Red: B

• Blue: D

Encoder Connection

• EA+: Black

• EA-: Blue

• EB+: Yellow

• EB-: Green

• Vcc: Red

• EGND: White
