JK86 220W BLDC Brushless Motor

Product Code : DCBLDC.002

48V BLDC motor with 220W power and approximately 3000 RPM nominal speed. Ideal for automation and motion control systems requiring efficiency and stability.

5,850.00 TL + VAT

KDV Dahil : 7,020.00 TL

Recommend It Price Alert

Yeni Ürünler

Toptan Satış

Mağazadan Satış

Aynı Gün Kargo

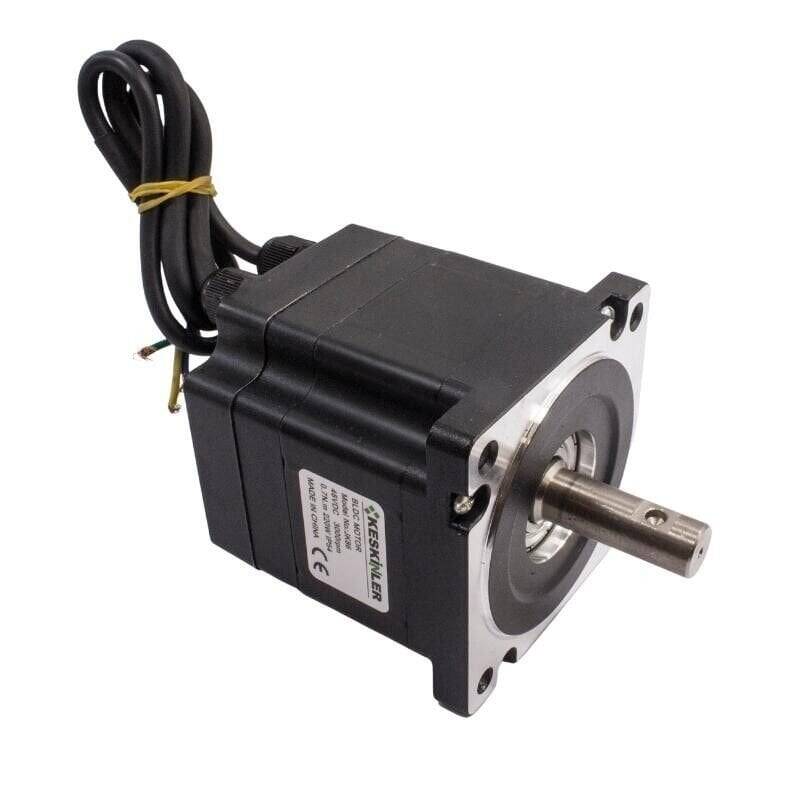

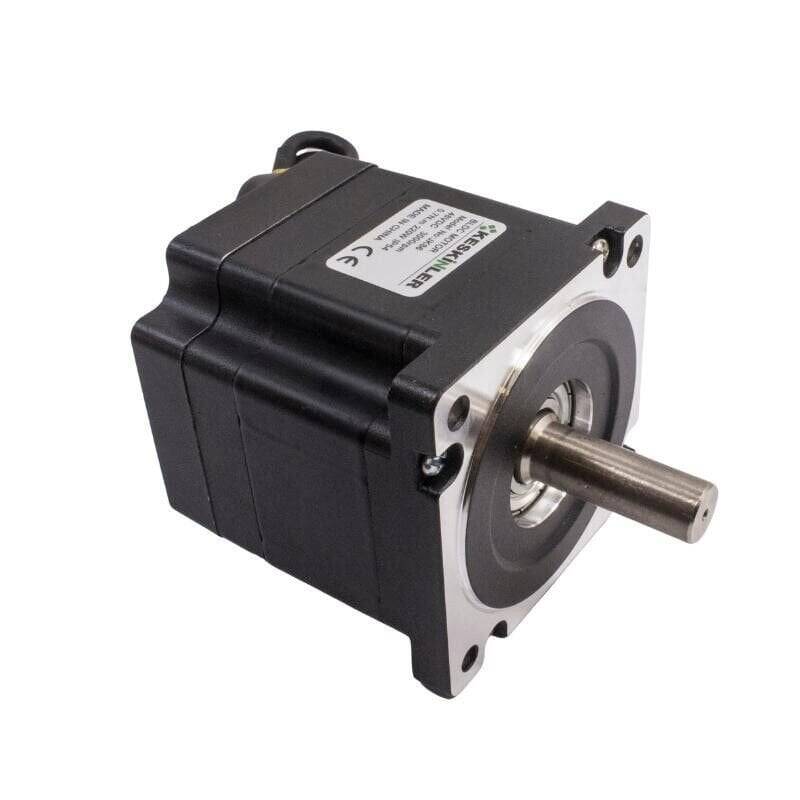

JK86 220W BLDC Brushless Motor

The JK86 220W BLDC Brushless Motor is a 48VDC brushless motor with a rotation speed of approximately 3700 rpm. It has 3 phases and 8 poles.

Features

Number of Phases: 3
Number of Poles: 8
Nominal Voltage: 48V
Nominal Rotation Speed: 3700 RPM (Recommended speed: 3000 RPM)
Nominal Current: 1.5A max.
Torque: 0.7 N.m
Output Power: 220W

Features

Voltaj

48V DC

Bağlantı Şeması

JK86-connection

Teknik Çizim

JK86-dimensions

Benzer Ürünler

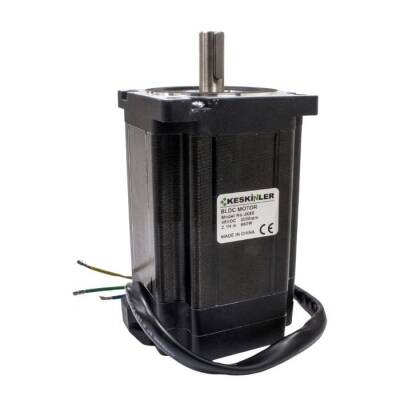

JK86 660W 48VDC BLDC Brushless Motor - Keskinler

JK86 660W 48VDC BLDC Brushless Motor

8,775.00 TL VAT

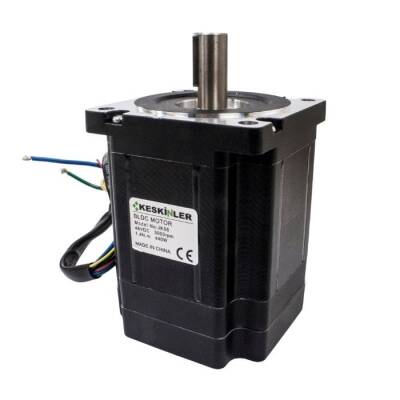

JK86 440W 48VDC BLDC Brushless Motor - Keskinler

JK86 440W 48VDC BLDC Brushless Motor

7,875.00 TL VAT

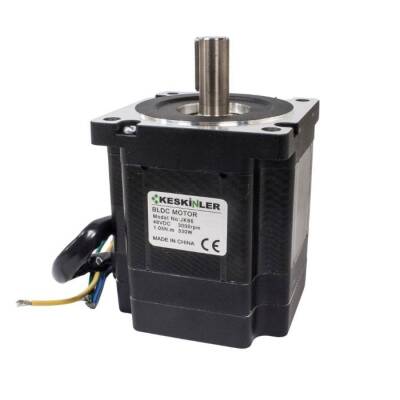

JK86 330W 48VDC BLDC Brushless Motor - Keskinler

JK86 330W 48VDC BLDC Brushless Motor

6,975.00 TL VAT

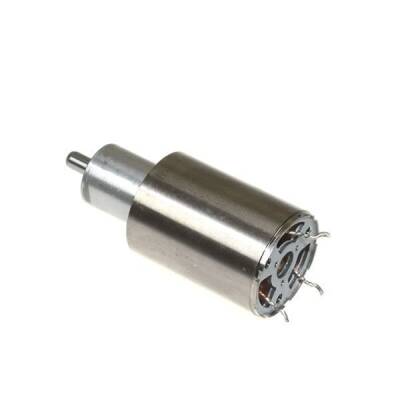

Brushless Motor DC 11.1V 250W 30000RPM - Keskinler
