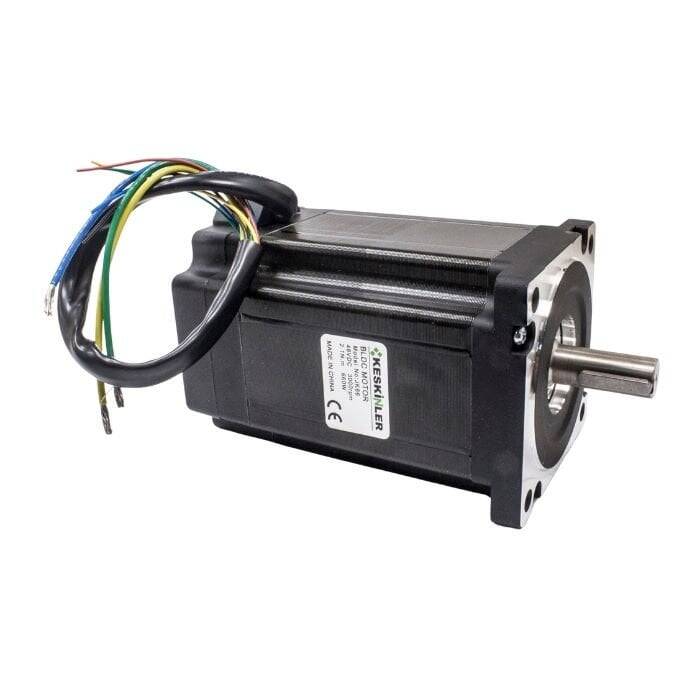

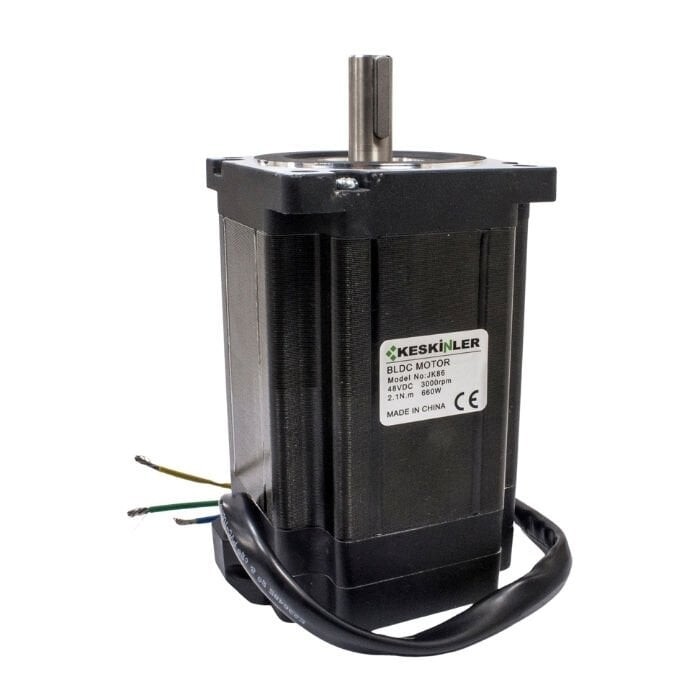

JK86 660W 48VDC BLDC Brushless Motor

Product Code : DCBLDC.005

48V BLDC motor with 660W power and approximately 3000 RPM nominal speed. Ideal for industrial systems requiring high power and torque.

8,775.00 TL + VAT

KDV Dahil : 10,530.00 TL

Recommend It Price Alert

Yeni Ürünler

Toptan Satış

Mağazadan Satış

Aynı Gün Kargo

JK86 660W 48VDC BLDC Brushless Motor

The JK86 660W 48VDC BLDC Brushless Motor is a 48VDC brushless motor with a rotation speed of approximately 3000rpm. It has 3 phases and 8 poles.

Features

Number of Phases: 3
Number of Poles: 8
Nominal Voltage: 48V
No-load Speed: 3700 RPM (Recommended speed: 3000 RPM)
No-load Current: 2.8A max.
Torque: 2.1 N.m
Output Power: 660W

Features

Voltaj

48V DC

Bağlantı Şeması

JK86-connection

Teknik Çizim

JK86-dimensions
