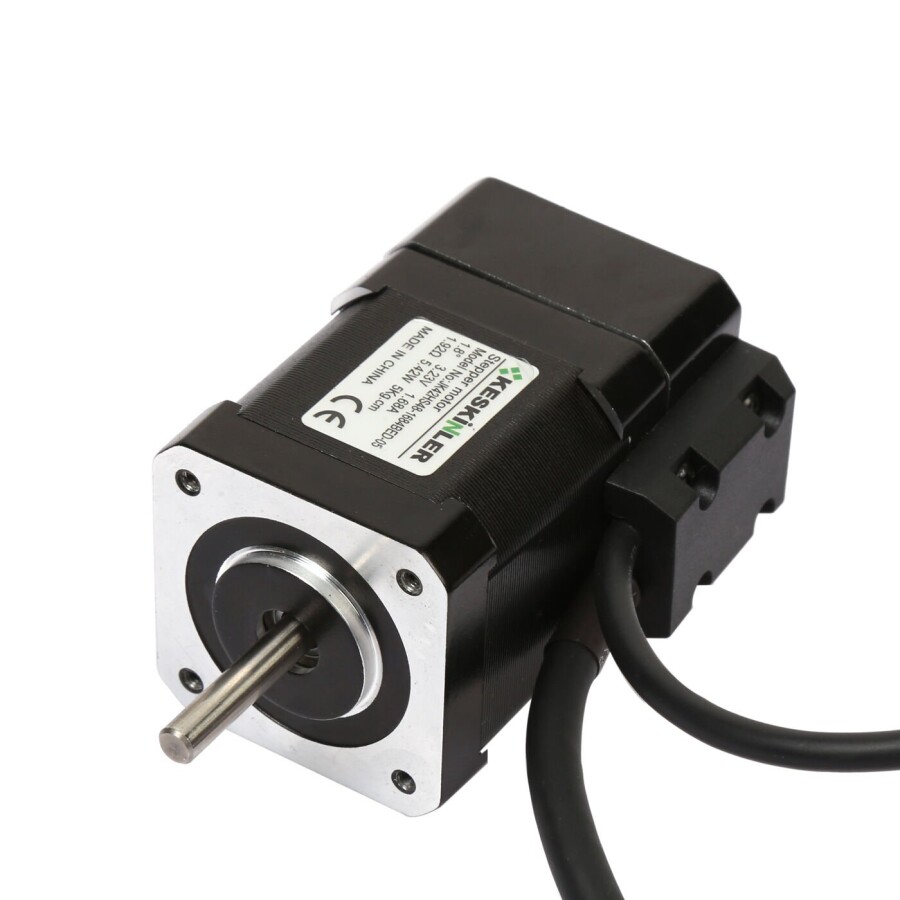

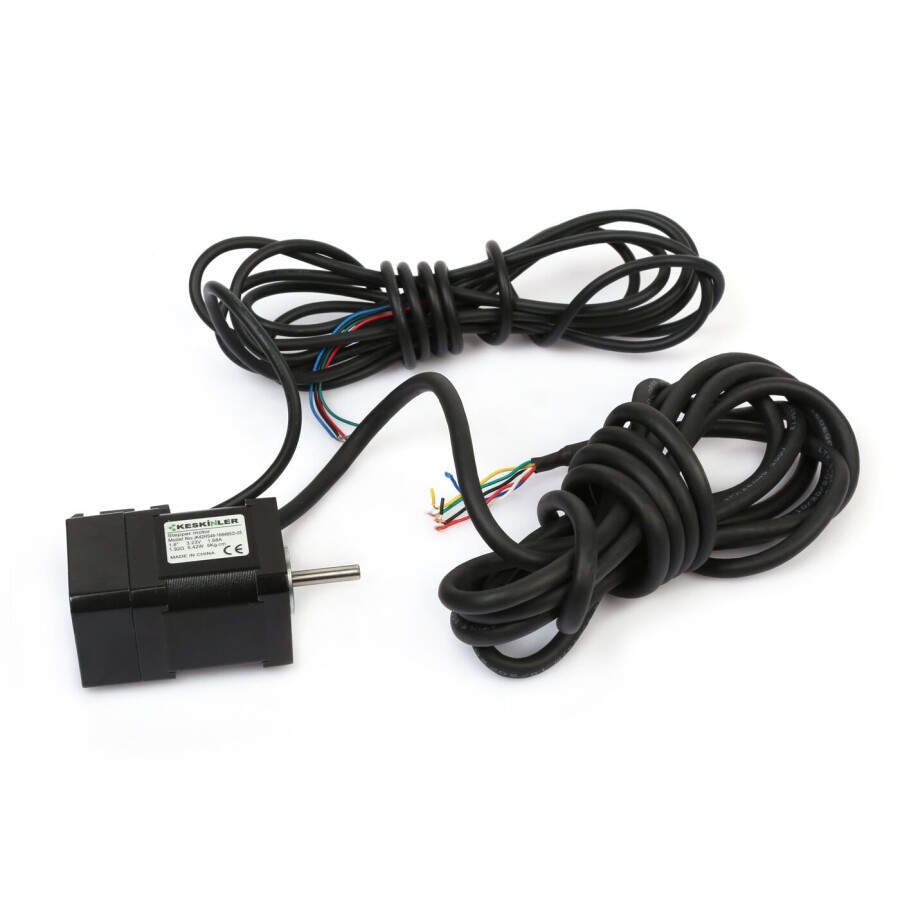

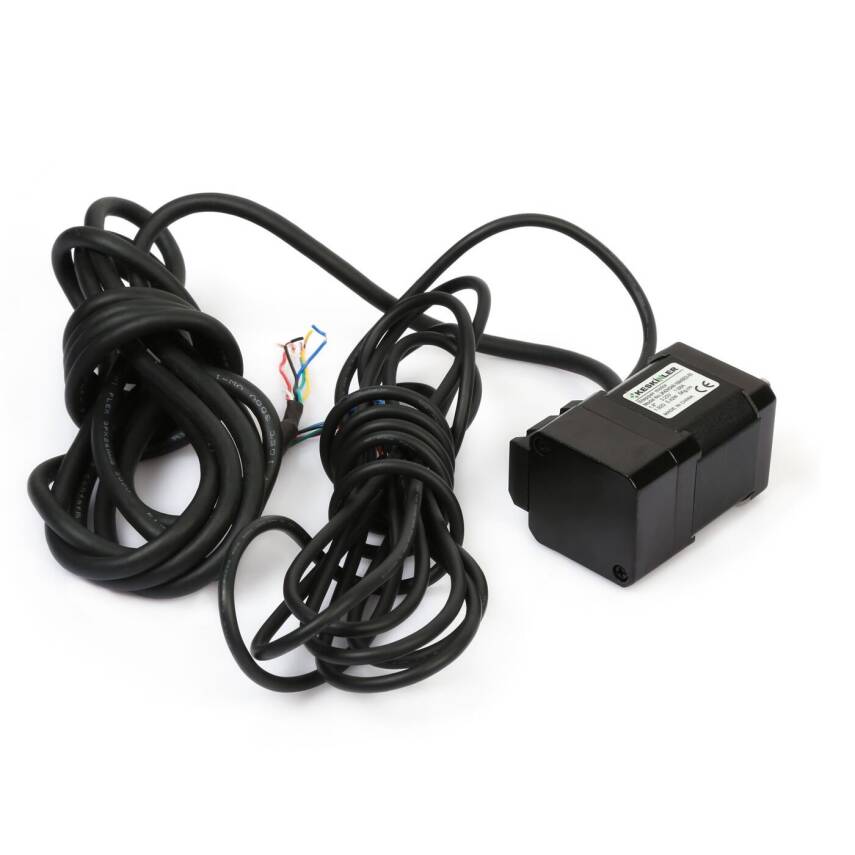

JK42HSN48 NEMA17 Stepper Motor with Encoder
The JK42HSN48 NEMA17 Stepper Motor with Encoder is a type of motor that can be used in projects requiring precise positioning, in machine manufacturing, and in various production machines. Encoder-equipped stepper motors are also known as closed-loop stepper motors.
Features:
- Angle Value: 1.8 degrees
- Voltage: 2.8 V
- Peak Current Value: 1.68 A
- Torque: 5 kg.cm
- Weight: 0.34 kg
Cable Colors:
- Black: A
- Green: C
- Red: B
- Blue: D
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
