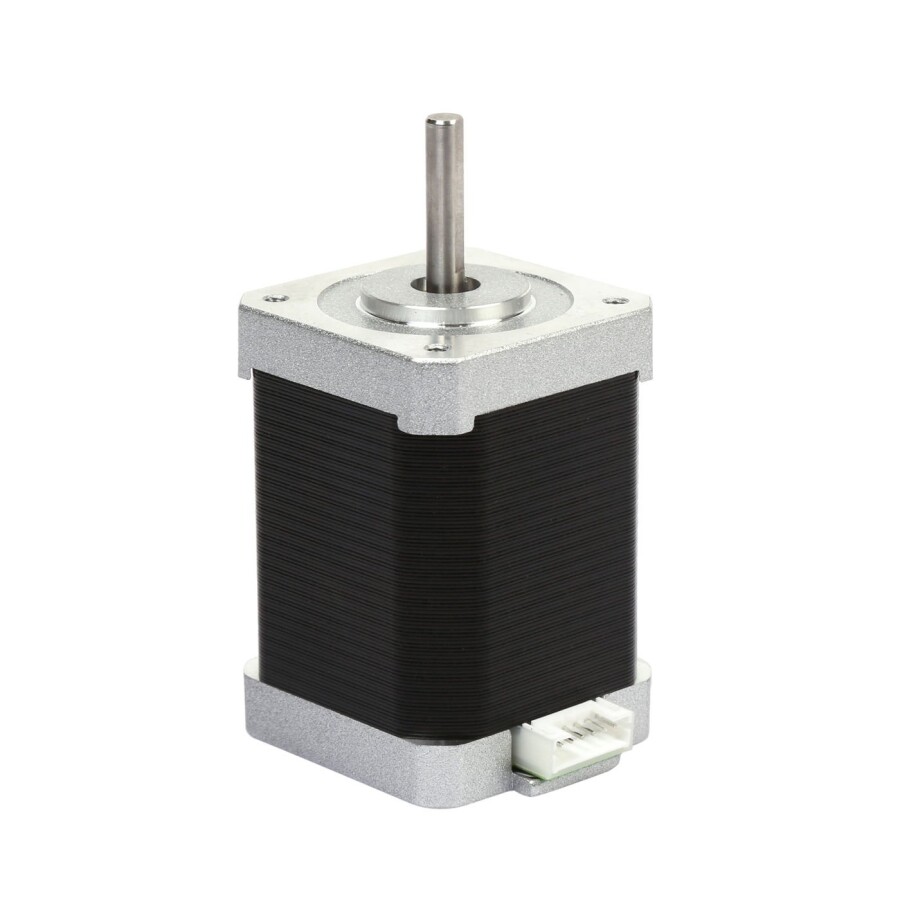

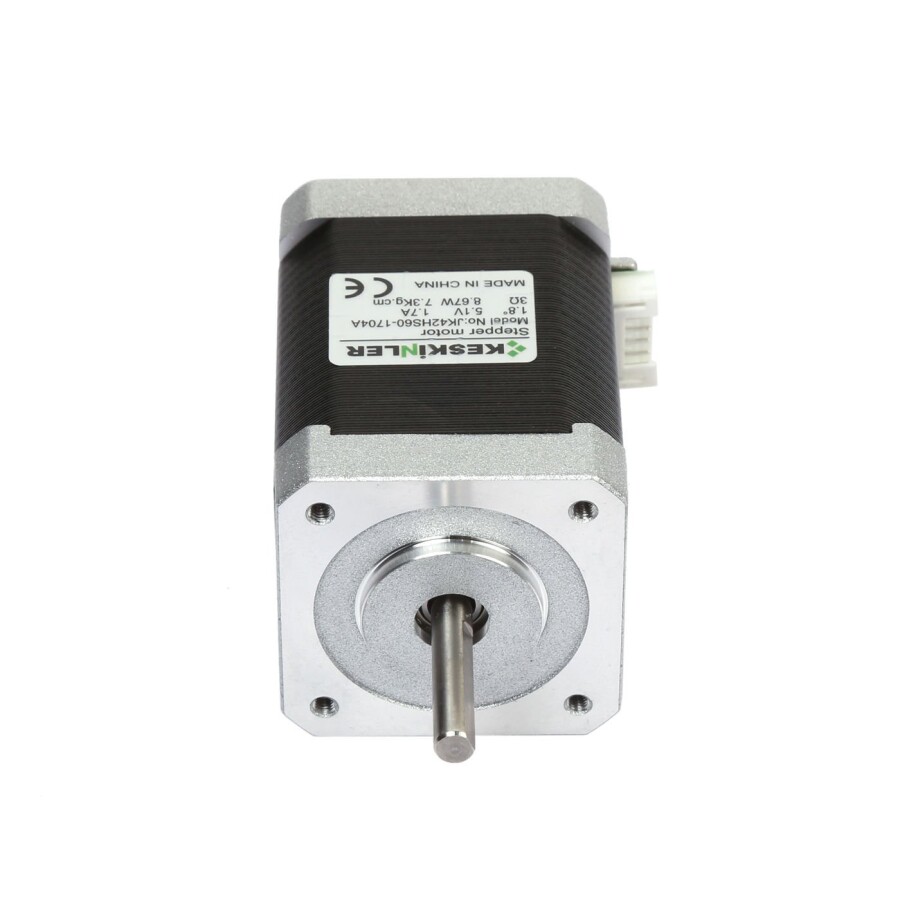

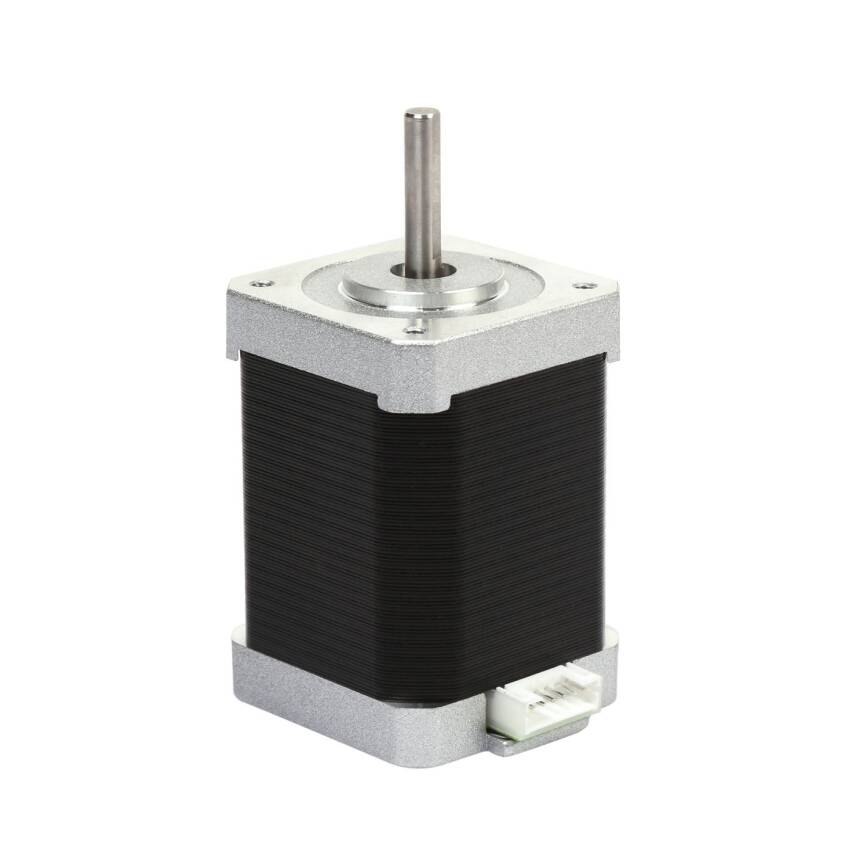

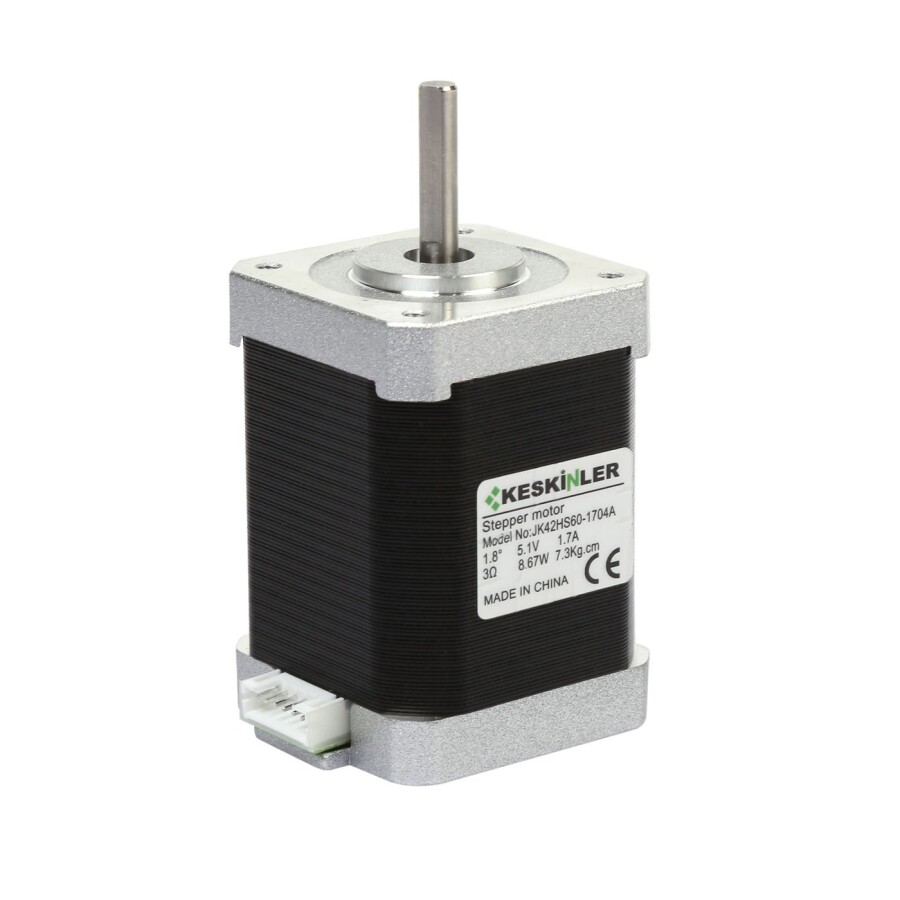

JK42HS60 NEMA17 Stepper Motor
The JK42HS60 NEMA17 Stepper Motor is a motor type that can be used in various production machines, especially in projects requiring precise positioning, in machine manufacturing, and in various production machines.
Features:
- Number of Phases: 2
- Angle Value: 1.8 degrees
- Voltage: 5.1V
- Peak Current Value: 1.7 A
- Phase Resistance: 3 Ohms
- Torque: 7.3 kg.cm
- Weight: 0.55 kg
Cable Colors:
- Black: A
- Green: C
- Red: B
- Blue: D
