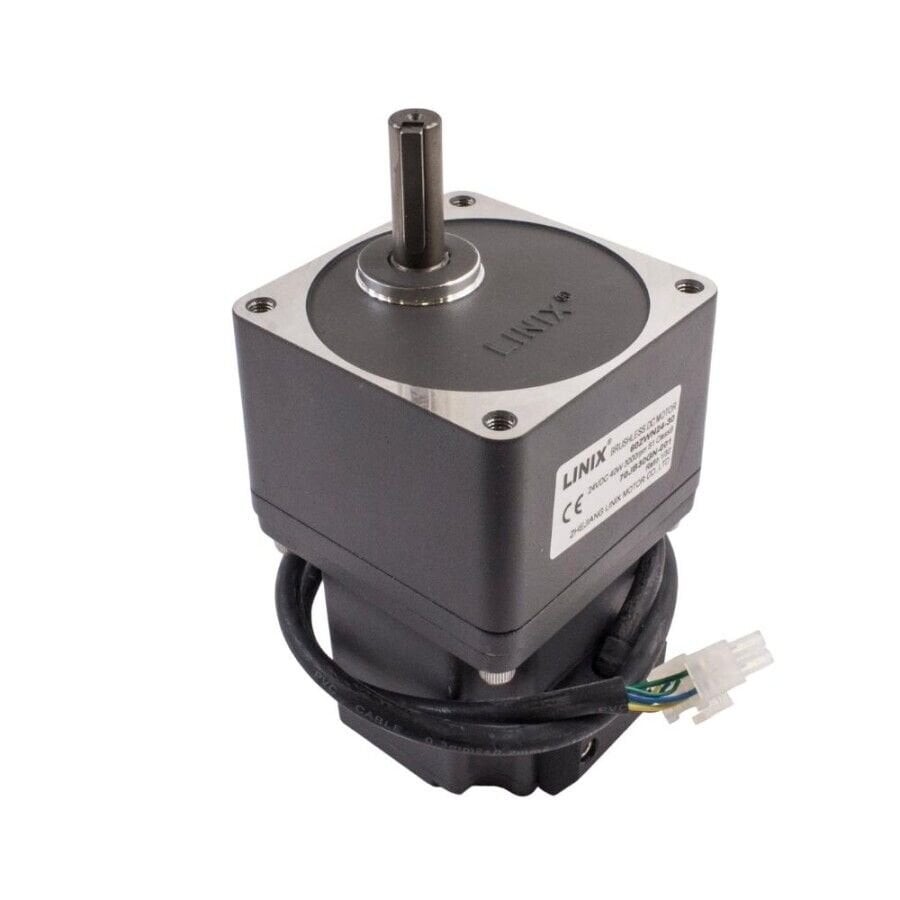

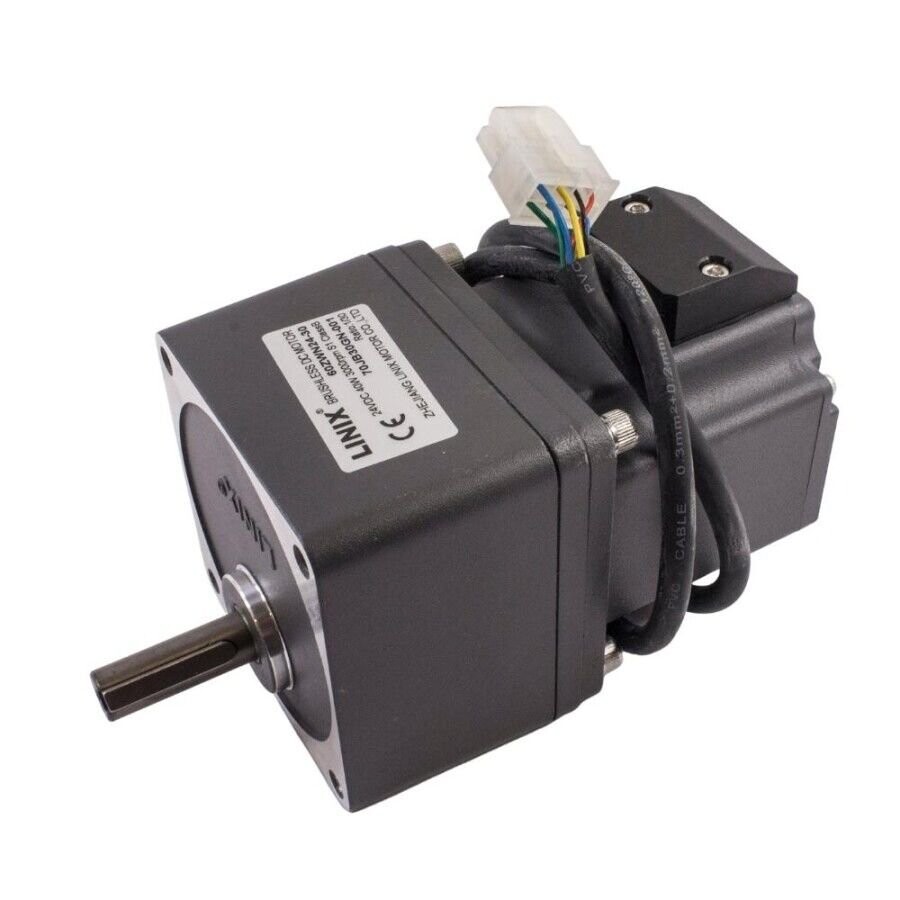

70JB60G1032 24V 30W 43RPM Geared Brushless DC Motor

70JB60G1032 24V 30W 43RPM Geared Brushless DC Motor

The 70JB60G1032 24V 30W 43RPM Geared Brushless DC Motor is a geared DC motor typically used in packaging machines, textile machines, livestock machines, industrial automation, and various other applications and projects. It operates on 24VDC. It is an ideal motor for high torque needs.

Features

• Operating Voltage: 24VDC
• Power: 30W
• No-Load Current: 0.5A
• Nominal Current: 2.2A
• Number of Phases: 3
• Number of Poles: 8
• Lower Motor Speed: 2600RPM
• Speed: 43RPM
• Nominal Torque: 6Nm
• Reduction Ratio: 1/60
• Shaft Diameter: 10mm
• Shaft Length: 29mm
• Dimensions: 70x70x80mm
• Weight: 0.42 kg
