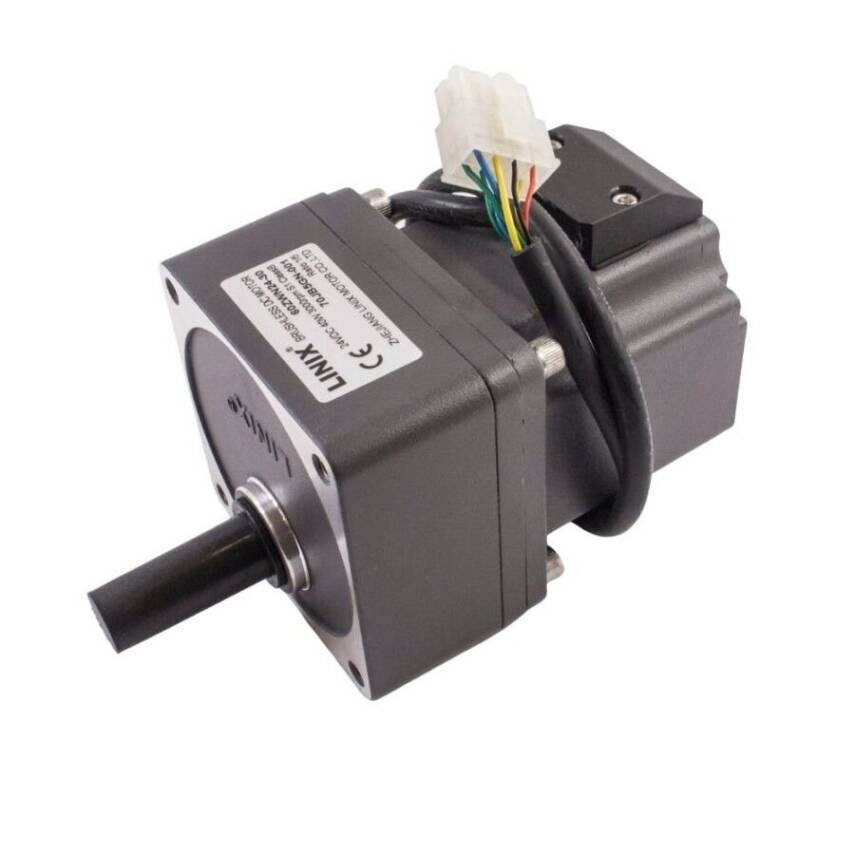

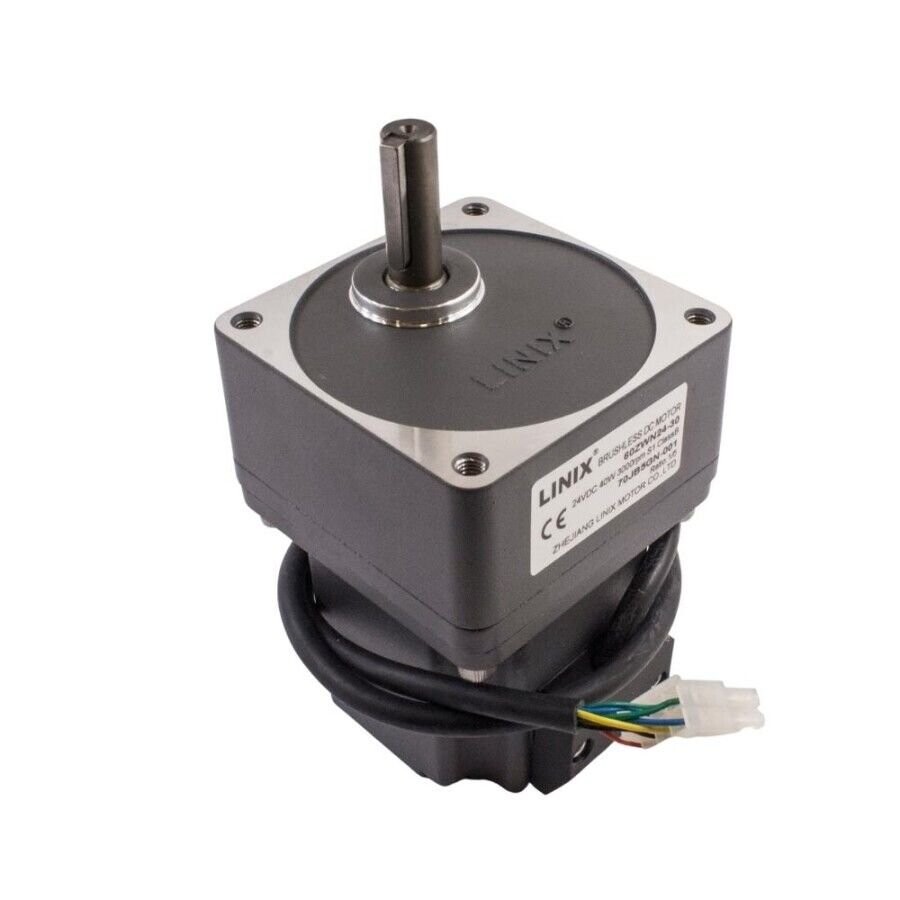

70JB5GN 24V 40W 600RPM Geared Brushless DC Motor

70JB5GN 24V 40W 600RPM Geared Brushless DC Motor

The 70JB5GN 24V 40W 600RPM Geared Brushless DC Motor is a geared DC motor typically used in packaging machines, textile machines, livestock machines, industrial automation, and various other applications and projects. It operates on 24VDC. It is an ideal motor for high torque needs.

Features

• Operating Voltage: 24VDC
• Power: 40W
• No-Load Current: 0.5A
• Nominal Current: 2.2A
• Number of Phases: 3
• Number of Poles: 8
• Lower Motor Speed: 3000RPM
• Speed: 600RPM
• Nominal Torque: 6Nm
• Reduction Ratio: 1/5
• Weight: 0.42 kg
