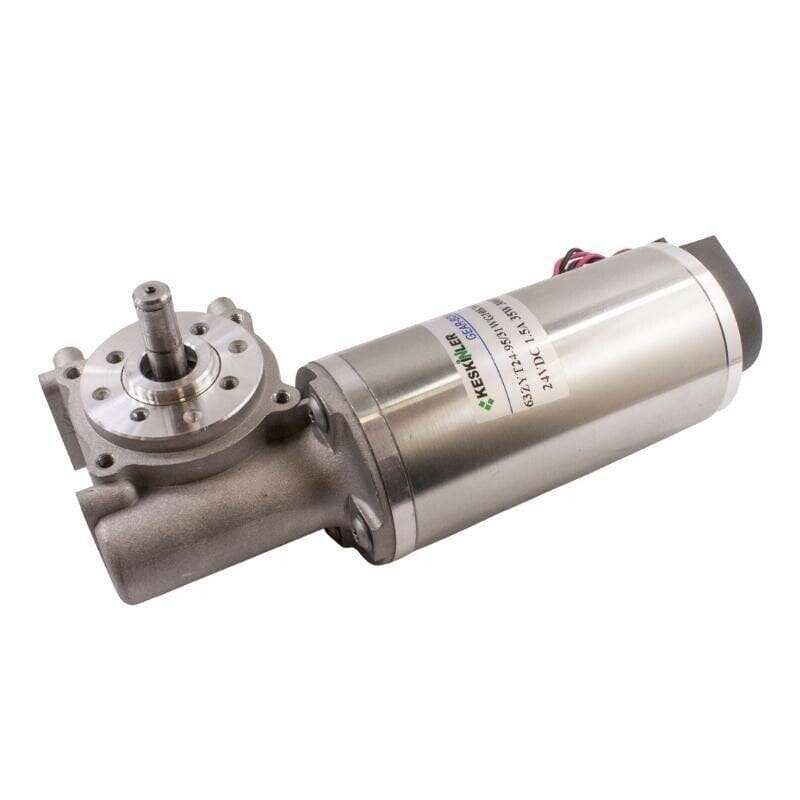

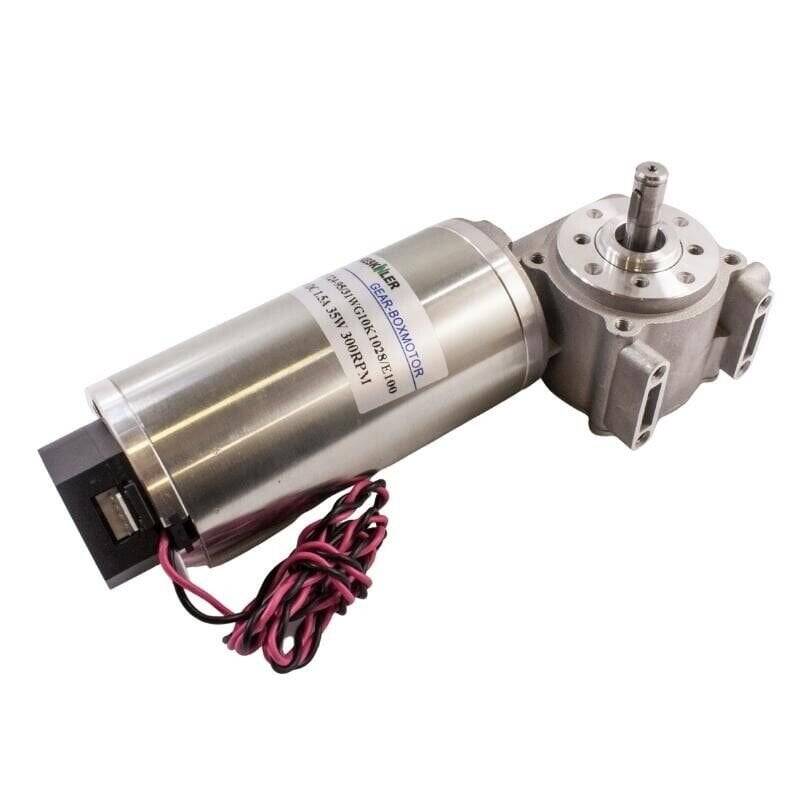

63ZYT24-95 24V 95W 300RPM Automatic Door Motor - With Encoder

63ZYT24-95 24V 95W 300RPM Automatic Door Motor - With Encoder

The 63ZYT24-95 24V 95W 300RPM Automatic Door Motor is a 24V DC motor with 95W power and 300 RPM. Commonly known as an automatic door motor, this product is suitable for general-purpose use in many applications. Ideal for use where high torque and high speed are required.

Pinout

• Red: +5V
• Black: Ground (-)
• Green and Yellow: Signal

Features

• Supply Voltage: 24VDC
• Current: 1.5A
• Power: 95W
• Speed: 300RPM
• Torque: 2.7 N.m
• Reduction Ratio: 10:1
