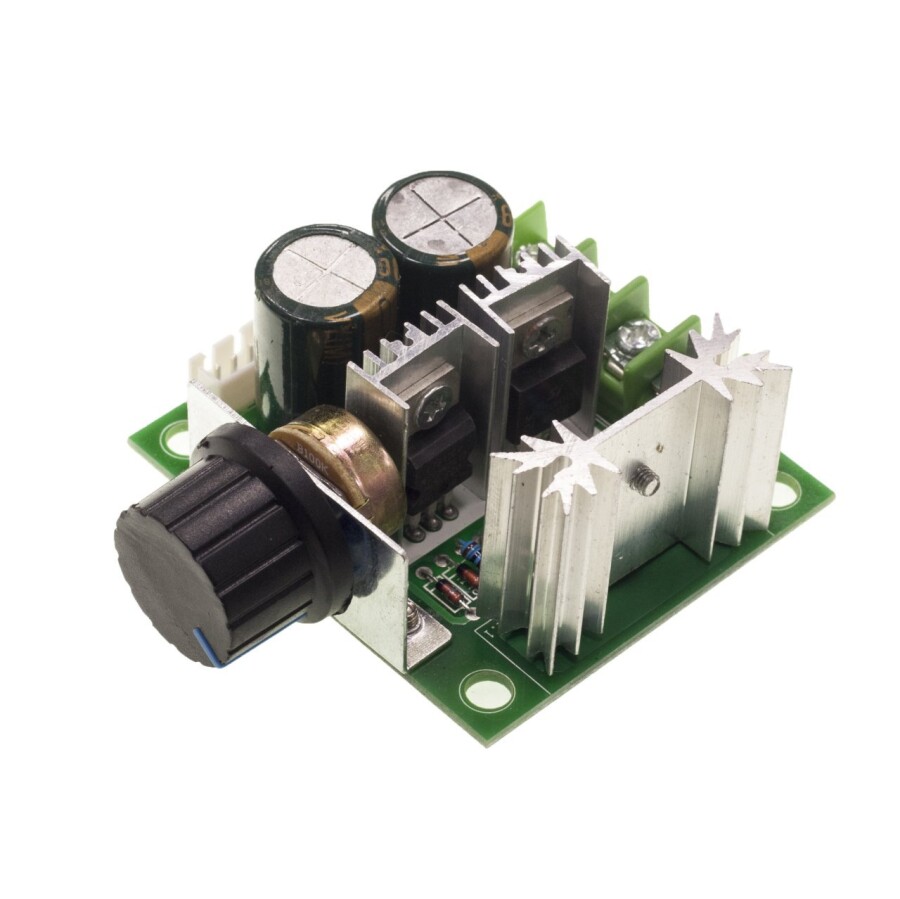

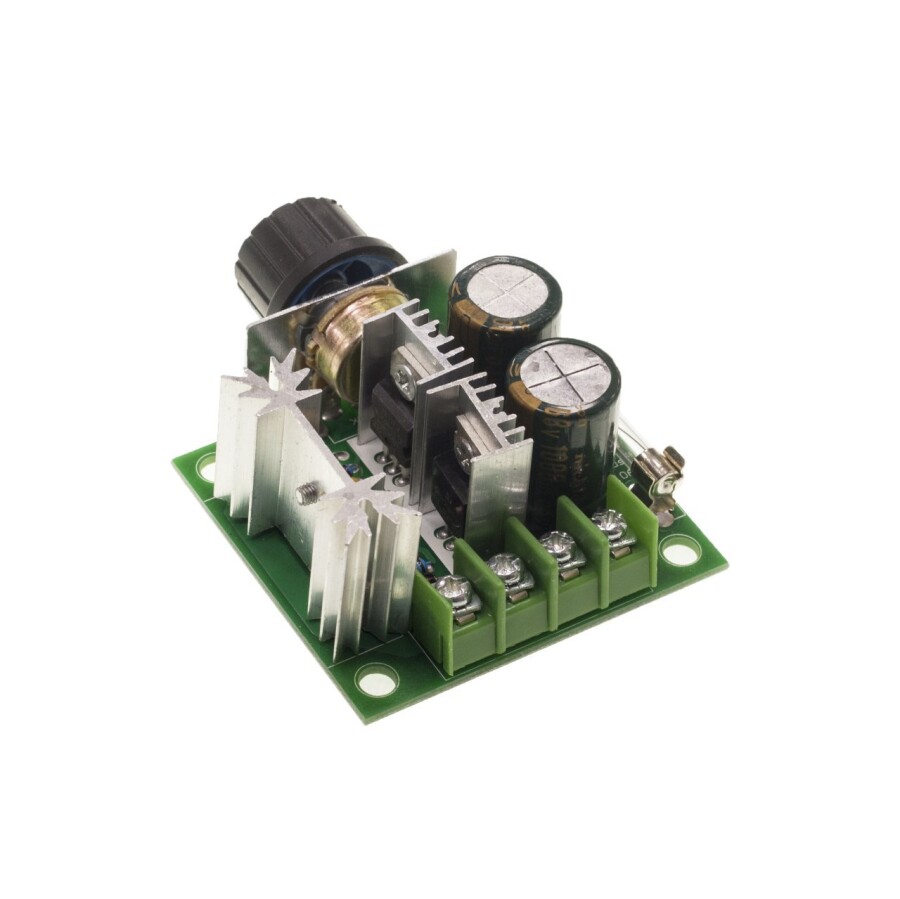

10 A DC MOTOR DRIVER

The DC Motor driver board allows you to control the speed of a DC motor using a fully adjustable (10% - 100%) Pulse Width Modulated (PWM) DC voltage.

It can deliver a maximum current of 10 amps. The circuit includes a 10A fuse, along with reverse power supply connection and overvoltage protection.

You can control the motor speed with this circuit board using a potentiometer, and drive multiple motors in one direction.

The motor speed controller can provide a continuous 8A current to your DC motor or other DC loads. The use of large heatsinks in the product ensures high efficiency.

The Morot driver board is widely used in projects due to its high performance and ease of use.

Technical Specifications

• Operating voltage: 12-40V
• Operating power: 0.01 - 400W
• Idle current draw: 0.02A
• PWM pulse width modulation range: 10% -100%
• PWM Frequency: 13 KHz
• Dimensions: 73 x 60 x 27 mm
• Reverse voltage and overcurrent protection
