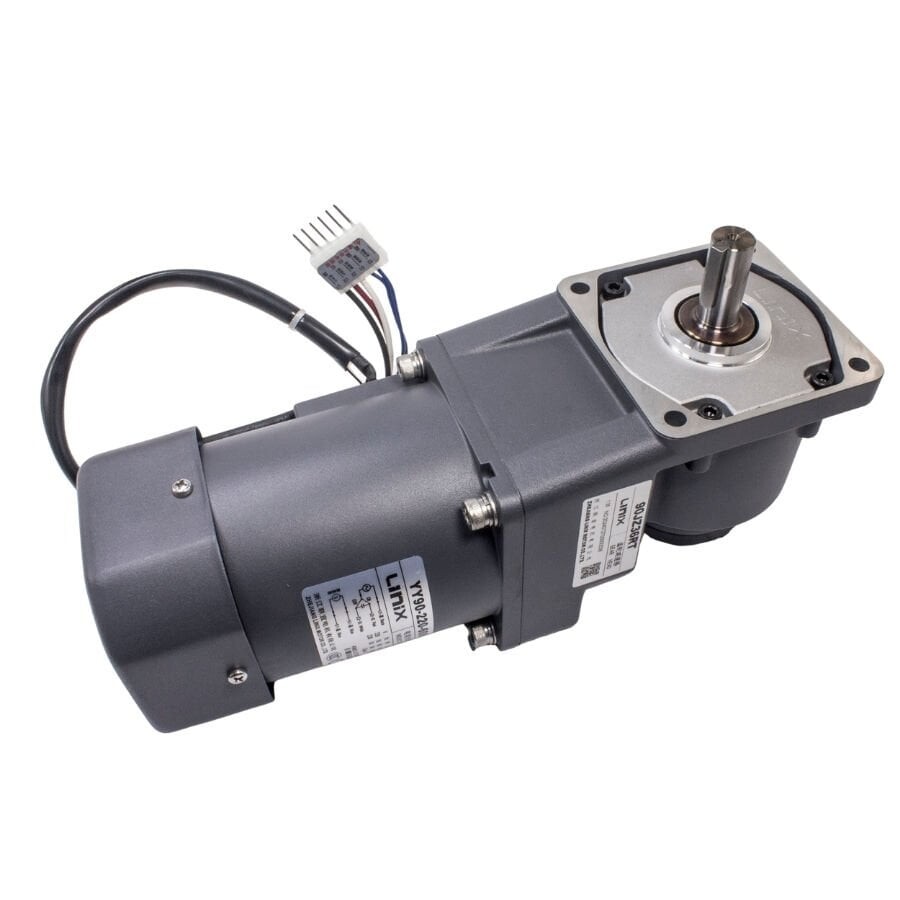

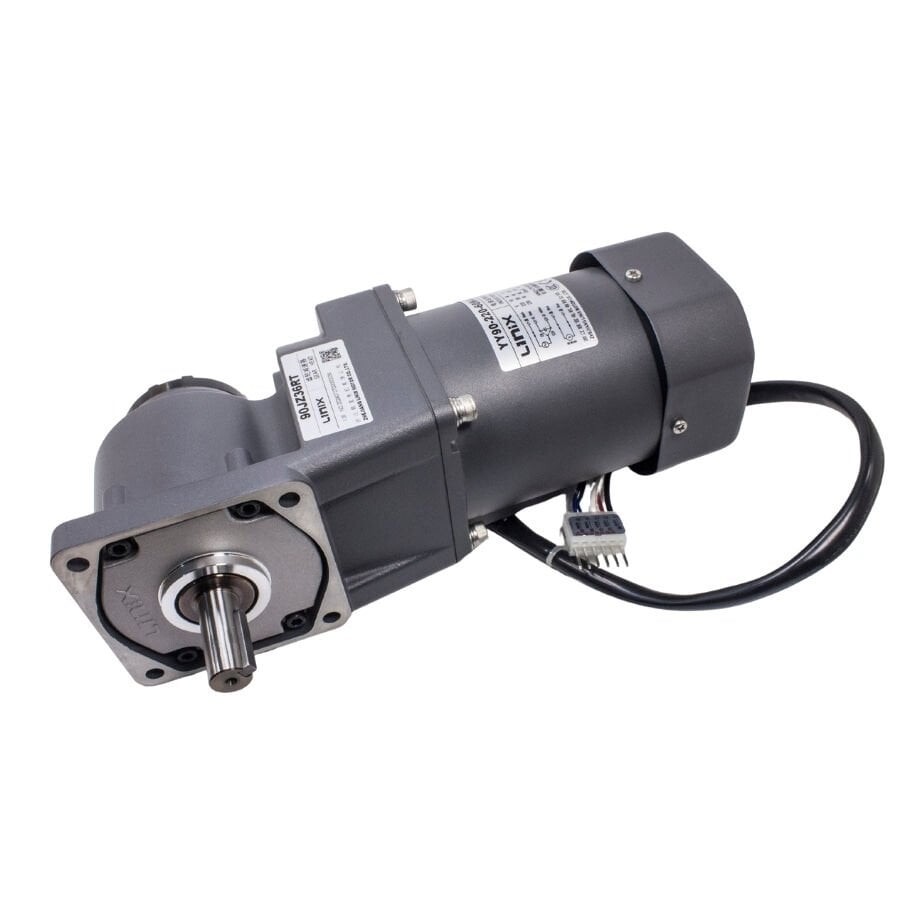

YY90-220-60 220V 60W 37.5RPM 90C AC Motor
The YY90-220 is a 60-watt motor with an L-shaped gearhead and a 90mm diameter, frequently preferred in industrial applications and machine manufacturing. The technical drawings and speed information for the product are provided below. You can contact us for other transfer options and bulk purchases.
The L reducer allows you to save space. Suitable for use in various projects.
A CBB61 4uF 450VAC capacitor is included with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.47A
- Lower Motor Speed: 1350 RPM
- Rotation Speed: 37.5 RPM
- Shaft Diameter: 15.7mm
- Shaft Length: 25mm
- Reducer Diameter: 90mm
