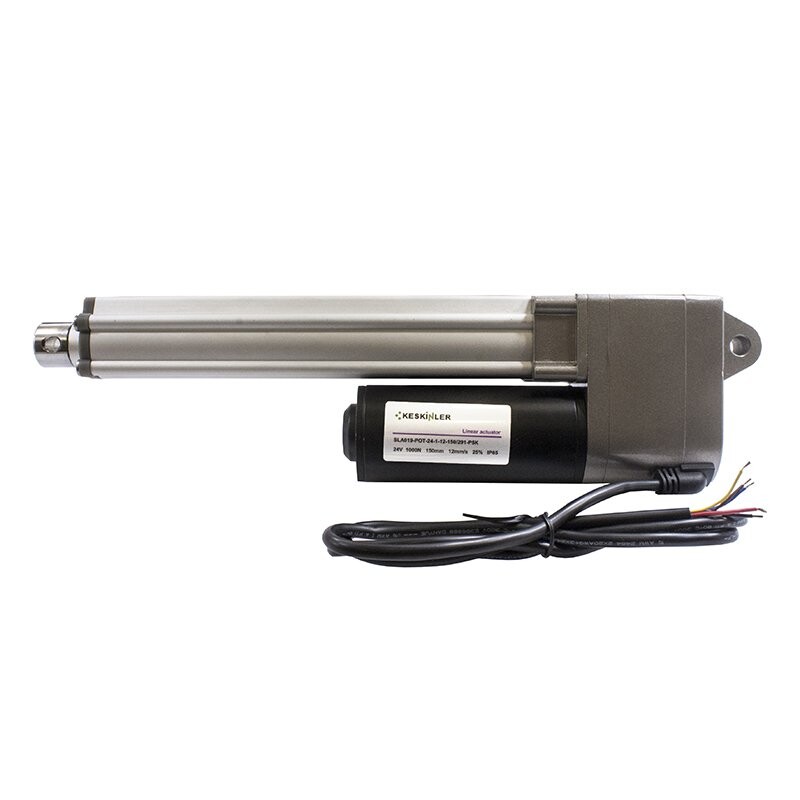

SLA019 24V 150mm 1000N Linear Actuator with Scale
The SLA019 Linear Actuator with Scale is a linear motor especially suitable for use in areas where precise positioning is required. It is a product suitable for positioning using a potentiometer connected to the output terminals or with the help of a PLC.
Features:
- Supply Voltage: 24V DC
- No-Load Speed: 12mm/s
- Load Speed: 8mm/s
- No-Load Current: <1A
- Load Current: <3A
- Stroke Length: 150mm
- Push-Pull Force: 1000N
- Operating Temperature Range: -20 ~ 65°C
- Protection: IP65
- Noise: <55dB
