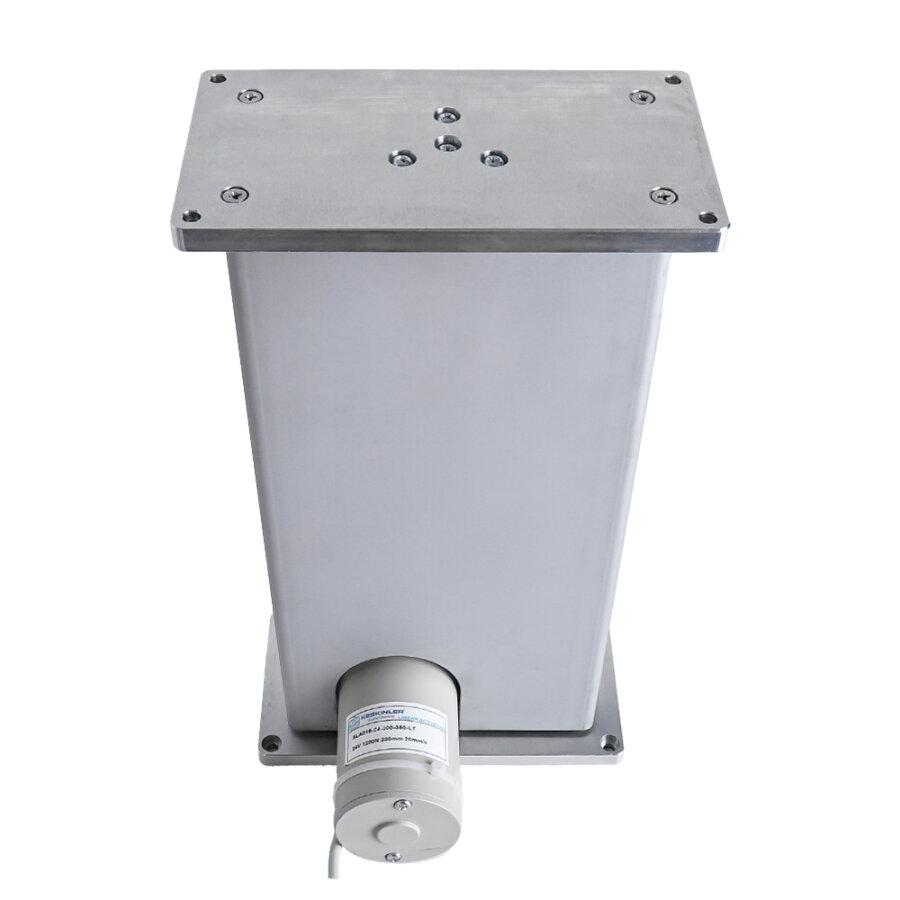

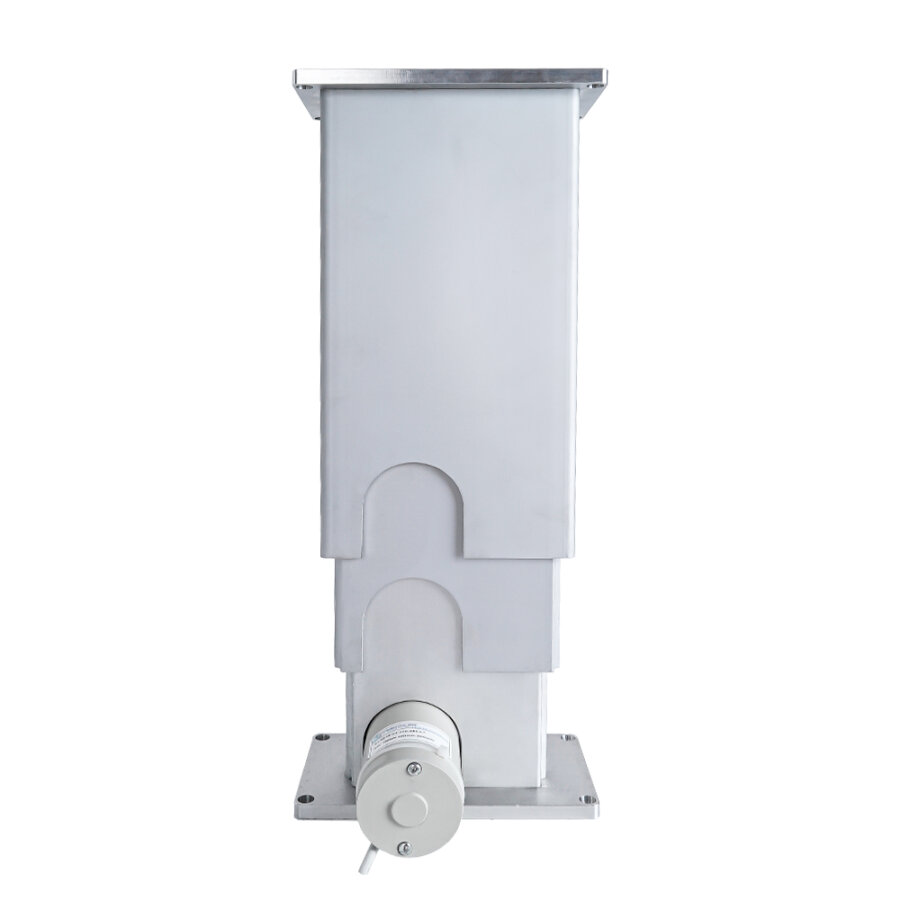

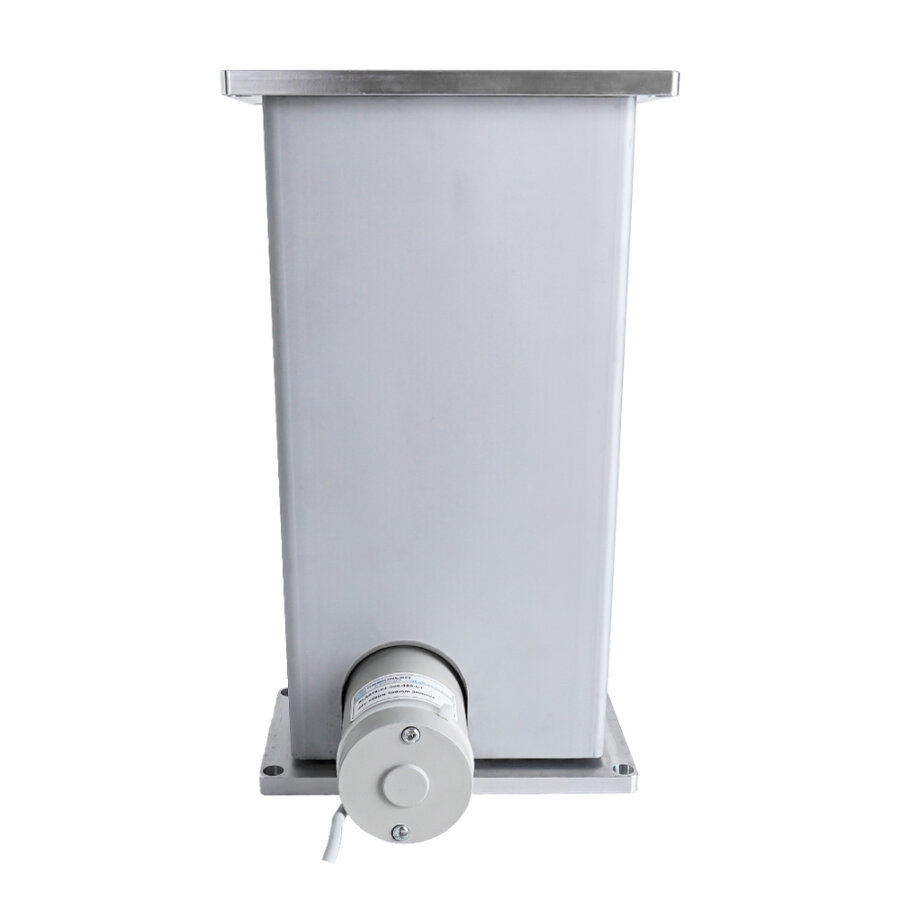

SLA018B 24V 200mm 1200N Column Motor

SLA018B 24V 200mm 1200N Column Motor

The SLA018B 24V 200mm 1200N Column Motor is a high-performance vertical lifting unit suitable for a wide range of applications, from adjustable furniture systems to medical devices, from industrial lifting mechanisms to automation projects.

The motor features an integrated limit switch that ensures safe stopping at the end of its stroke.

With its 1200N lifting capacity, 200mm stroke, powerful 24V DC motor, and column structure, it offers a reliable solution for professional applications.

Application Areas

• Medical bed systems
• Height-adjustable tables
• Industrial automation machines
• Laboratory devices
• Furniture mechanisms
• Home and office automation projects
• Electric television lifting columns
• CNC – Platform lifting applications

Features

• Voltage: 24V DC
• Load Capacity: 1200N
• Speed: 20 mm/s
• Stroke: 200 mm
• Protection Class: IP20
• Duty Cycle: 10% (2 min ON – 18 min OFF)
• Operating Temperature: –15°C ~ +45°C
