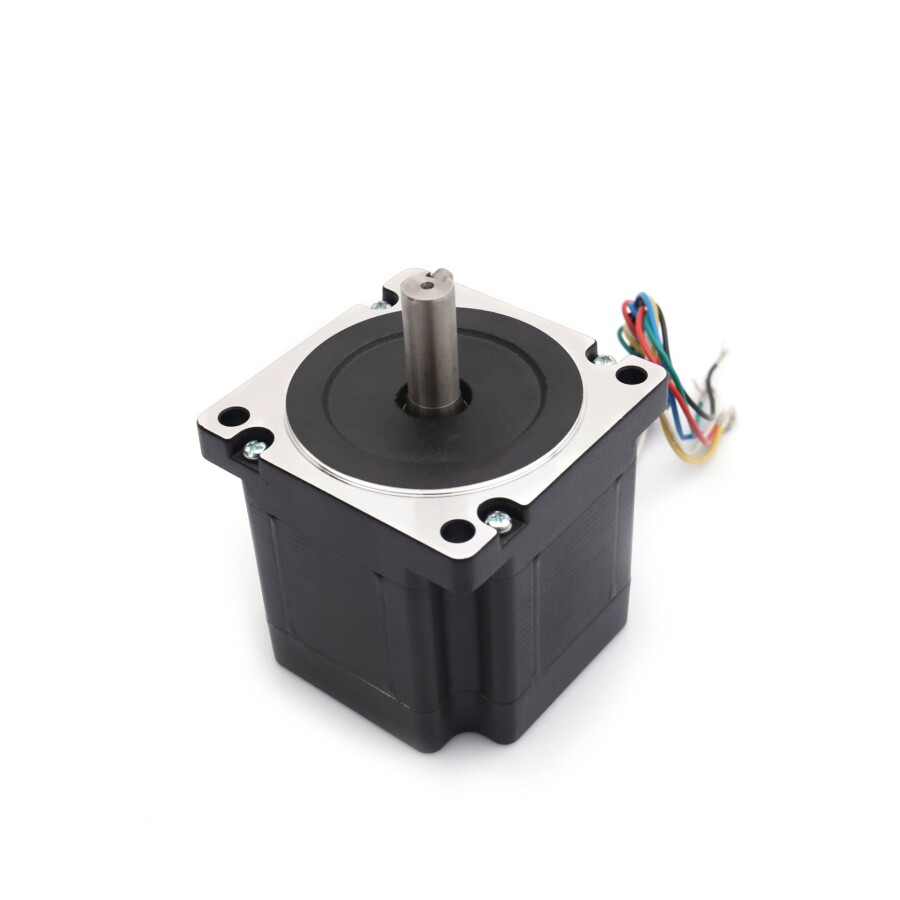

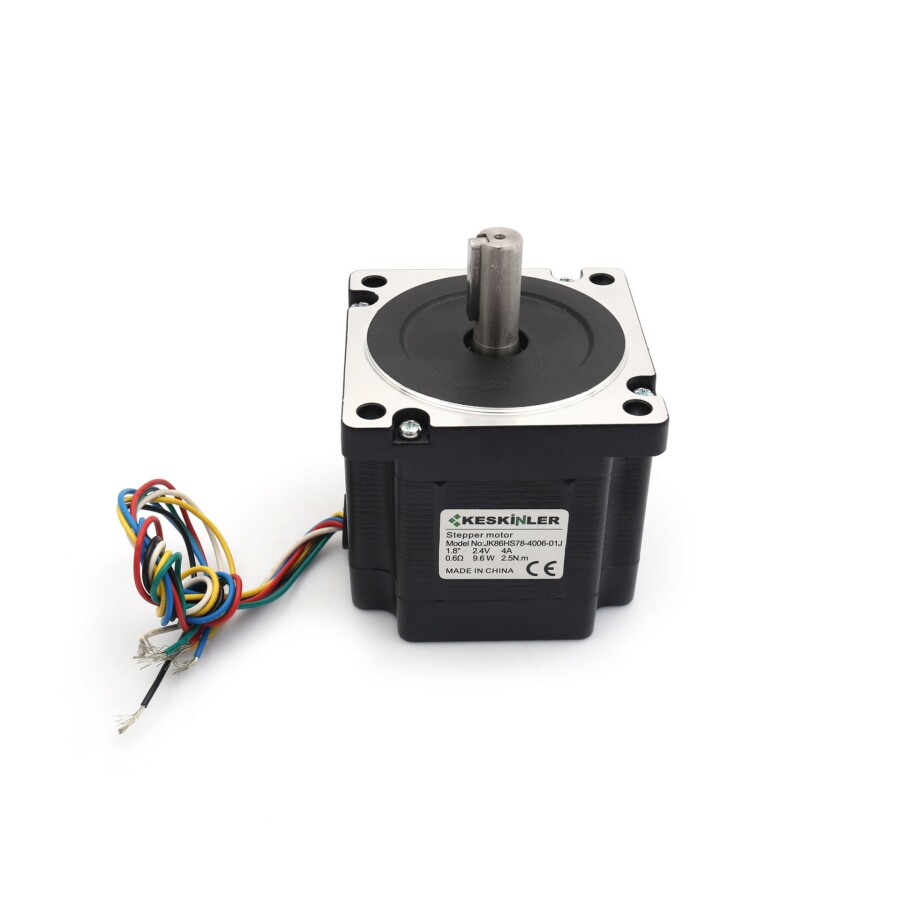

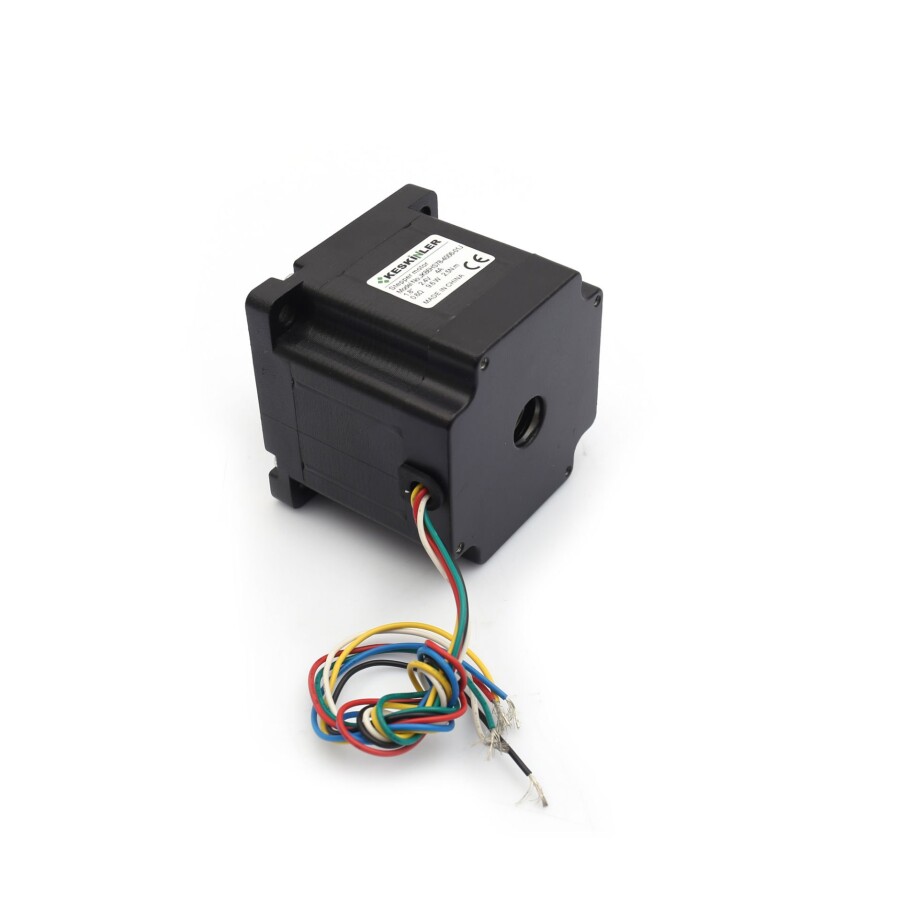

JK86HS78 NEMA34 Stepper Motor

Product Description

The JK86HS78 NEMA34 stepper motor is designed for projects that require precise positioning and reliable motion control. It can be widely used in machine manufacturing, production equipment, and various industrial automation systems.

With a 1.8° step angle, the motor provides accurate positioning and smooth operation. Its robust mechanical structure and stable performance make it suitable for demanding industrial environments.

The standard NEMA34 frame size ensures compatibility with a wide range of stepper motor drivers and mechanical systems, allowing easy integration into CNC machines and automation equipment.

Key Features

• Standard NEMA34 frame size

• 1.8° precision step angle

• 4A peak current capacity

• Stable and reliable motion control

• Suitable for industrial applications

Application Areas

• CNC machines

• Industrial automation systems

• Robotics platforms

• Linear motion systems

• Machine manufacturing and production equipment

Technical Specifications

Electrical Specifications

• Motor Type: Stepper Motor

• Model: JK86HS78

• Number of Phases: 4

• Step Angle: 1.8°

• Voltage: 2.4V

• Peak Current: 4 A

• Phase Resistance: 0.6 Ω

Mechanical Specifications

• Motor Standard: NEMA34

• Torque: 2.5 Kg·cm

• Weight: 2.3 kg

Motor Cable Colors

• Red: A

• White: O

• Green: C

• Yellow: B

• Black: O-

• Blue: D
