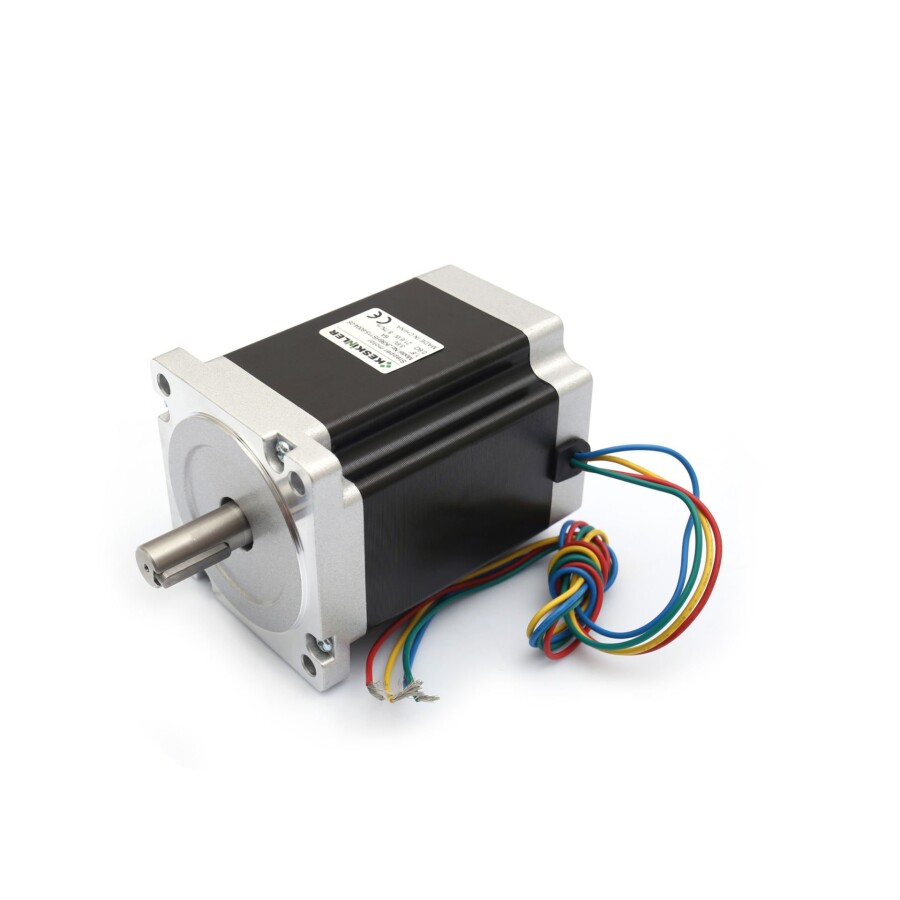

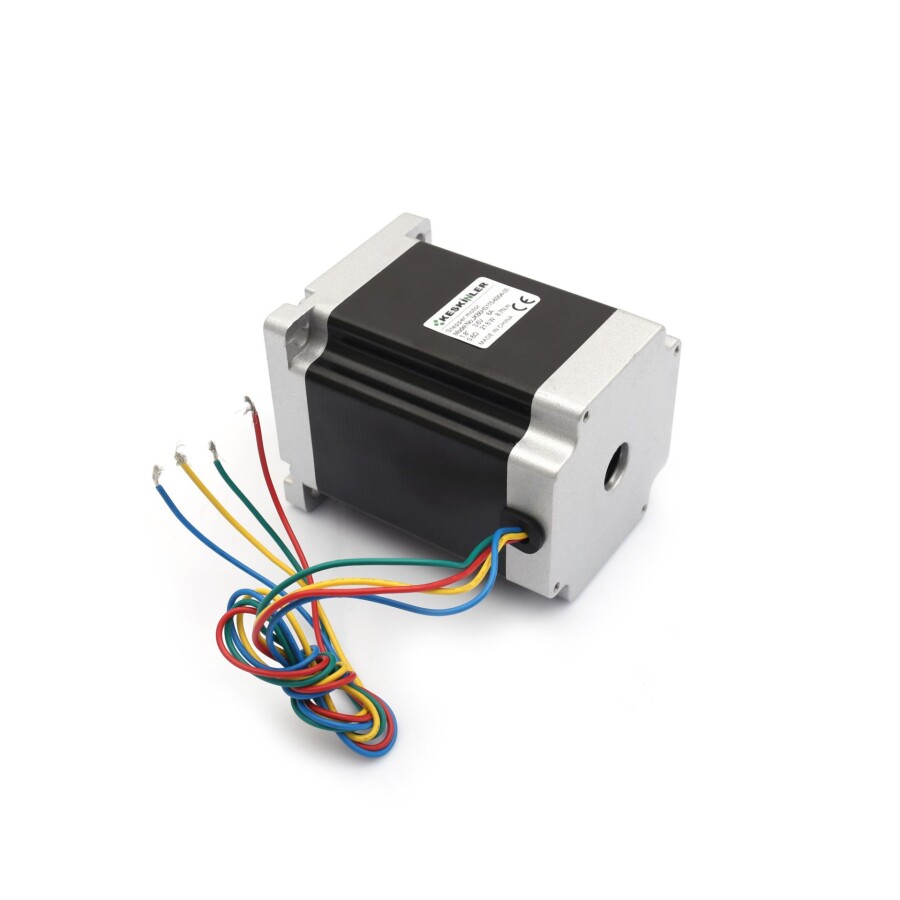

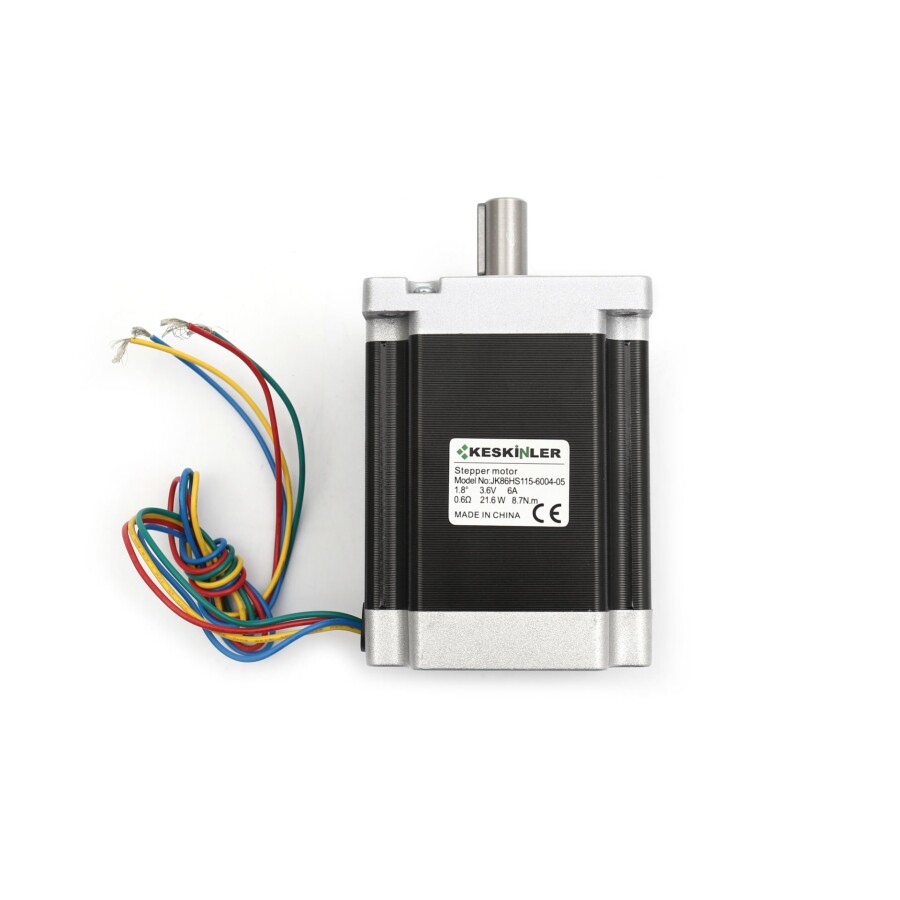

JK86HS115 NEMA34 Stepper Motor

Product Description

The JK86HS115 NEMA34 stepper motor is designed for applications requiring precise positioning and reliable motion control. It is widely used in machine manufacturing, CNC systems, and industrial automation equipment.

With a 1.8° step angle, the motor provides accurate positioning and smooth motion performance. Its robust construction and stable operating characteristics make it suitable for demanding industrial environments.

The standard NEMA34 frame size ensures easy compatibility with a wide range of stepper drivers and mechanical systems, making integration into various machines and automation systems simple and efficient.

Key Features

• Standard NEMA34 frame size

• 1.8° precision step angle

• 6A peak current capacity

• Reliable and stable motion control

• Designed for industrial applications

Application Areas

• CNC machines

• Industrial automation systems

• Robotics platforms

• Linear motion systems

• Machine manufacturing and production equipment

Technical Specifications

Electrical Specifications

• Motor Type: Stepper Motor

• Model: JK86HS115

• Number of Phases: 2

• Step Angle: 1.8°

• Voltage: 3.6V

• Peak Current: 6 A

• Phase Resistance: 0.6 Ω

Mechanical Specifications

• Motor Standard: NEMA34

• Torque: 8.7 Kg·cm

• Weight: 3.8 kg

Motor Cable Colors

• Red: A

• Green: C

• Yellow: B

• Blue: D
