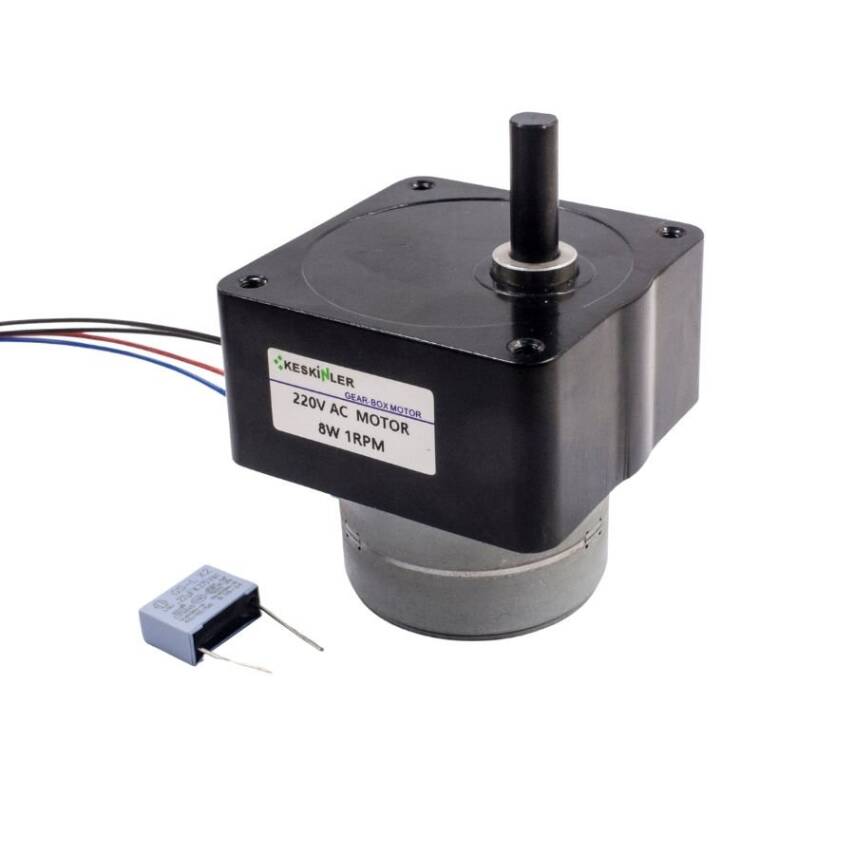

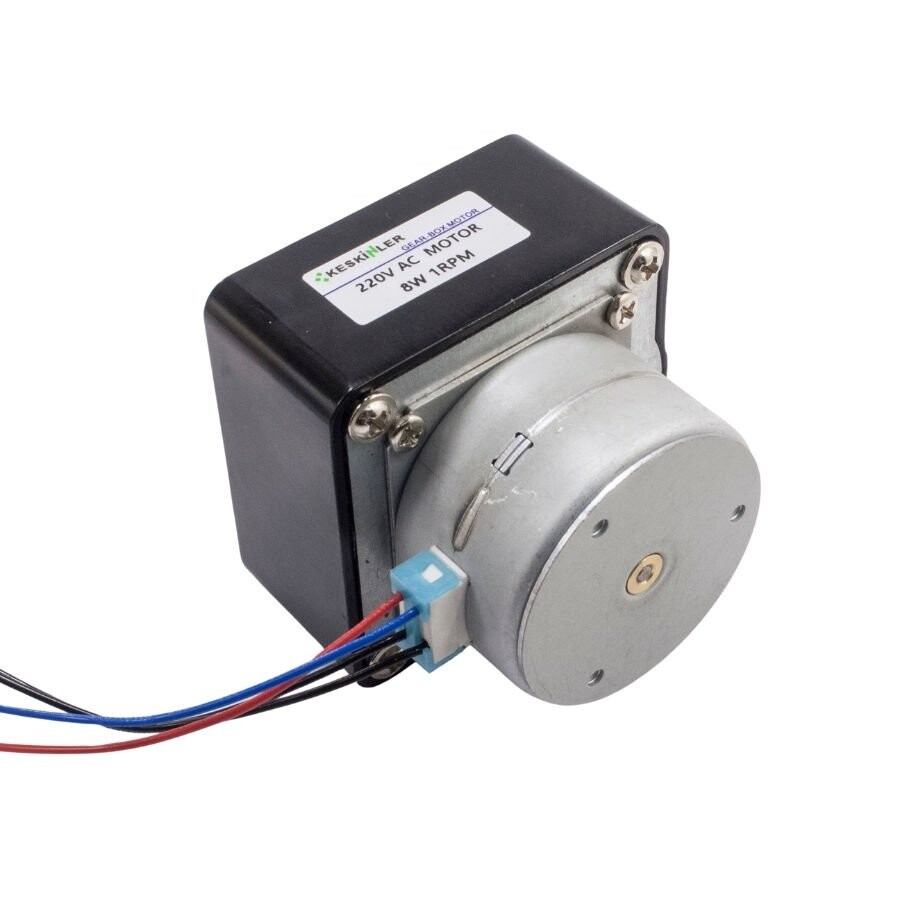

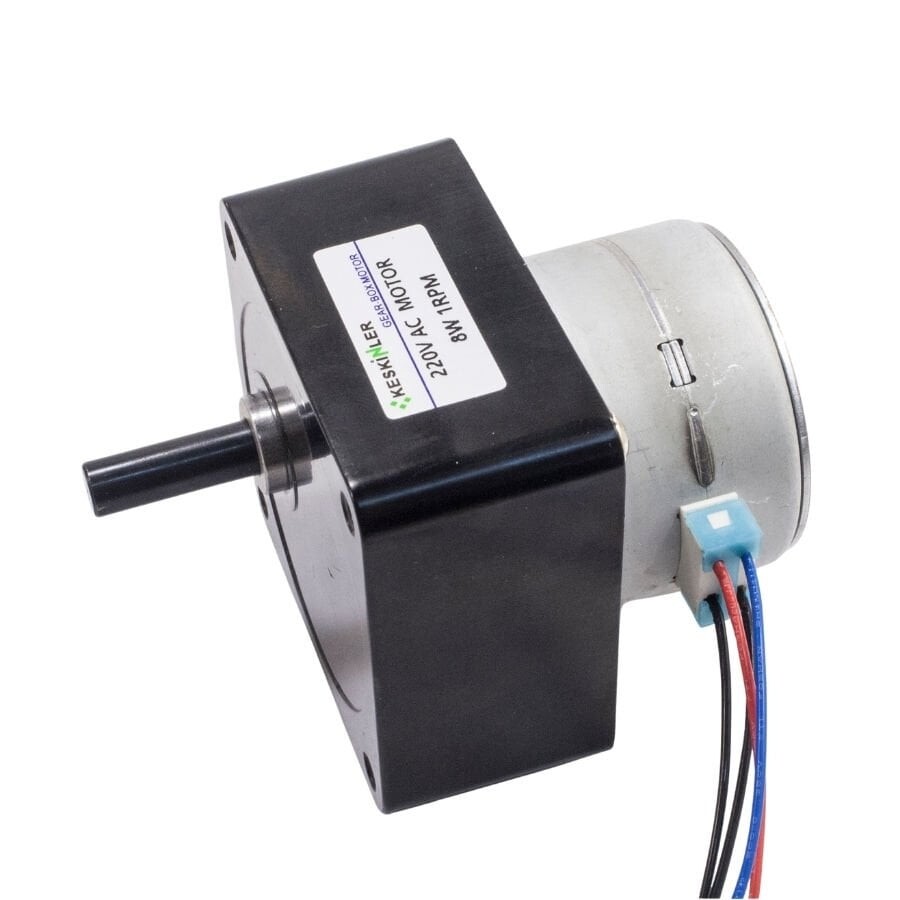

KTYZ-50 1RPM 8W 220V AC Synchronous Motor
The KTYZ-50 1RPM 8W 220V AC Synchronous Motor is a widely used 220V AC synchronous motor with a long life and a wide range of applications. It is generally used in rotary machines.
It is a low power consumption, high torque, low noise, small size, lightweight, and easy-to-use synchronous motor.
Technical Specifications
- Operating voltage range: 220V / 240V
- Speed: 1RPM
- Torque: 11 N.M
- Frequency: 50 HZ
- Noise: <40dB
- Total length: 64 mm
- Motor diameter: 65 mm
- Shaft diameter: 8 mm (with D shaft)
- Shaft length: 19 mm
