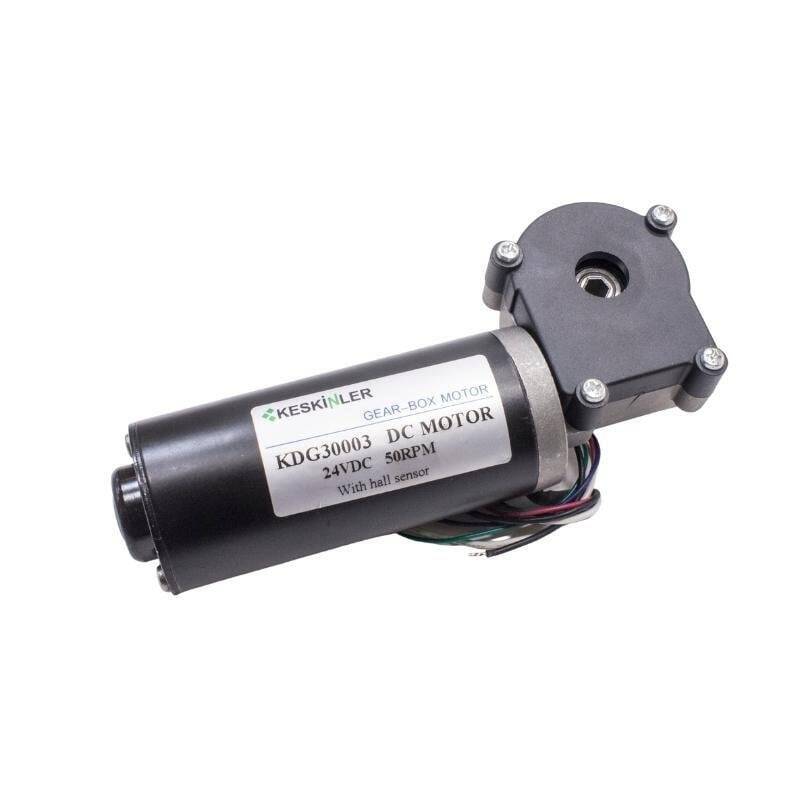

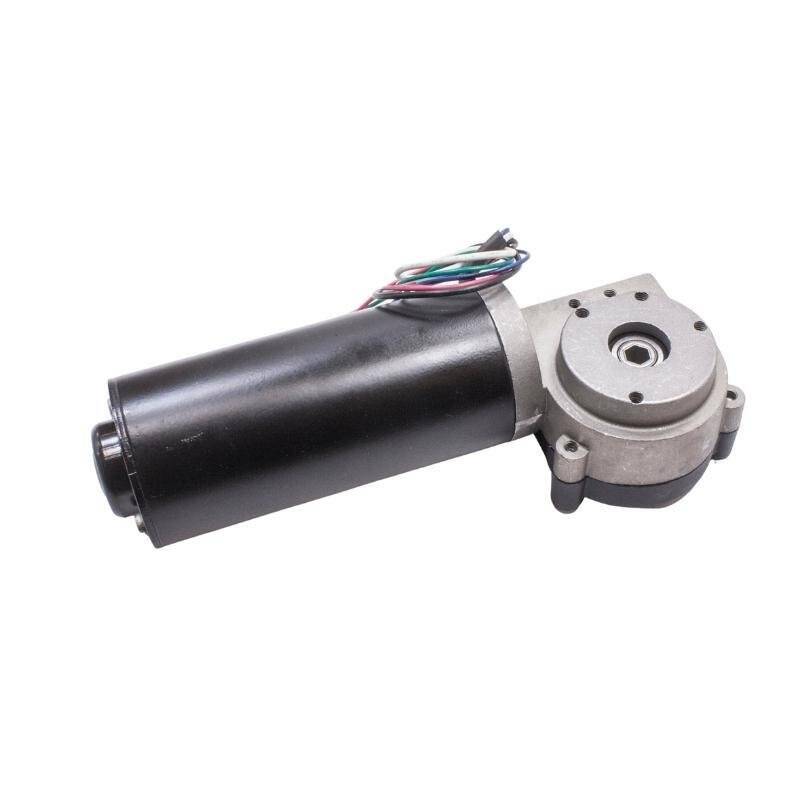

KDG30003 24V 50RPM DC Motor
The KDG30003 is a product with a standard hexagonal hole in the reducer section, allowing you to mount the appropriate shaft and perform various projects. You can also make a linear motor with this DC motor.
Features:
- Voltage: 24VDC
- Speed: 50 RPM
- Current: 0.6A Max.
- Hi-Pot Test: 550VAC/0.5mA/3S;
- Insulation Class: B
- Screw Loosening Force: 7kg.fcm
- Noise: 48dB max (test distance 30cm)
- Performance Specification (2-pole magnetic ring)
Cable Connections:
- White: +
- Black: -
- Red: VCC
- Green: GND
- Blue: OUT
