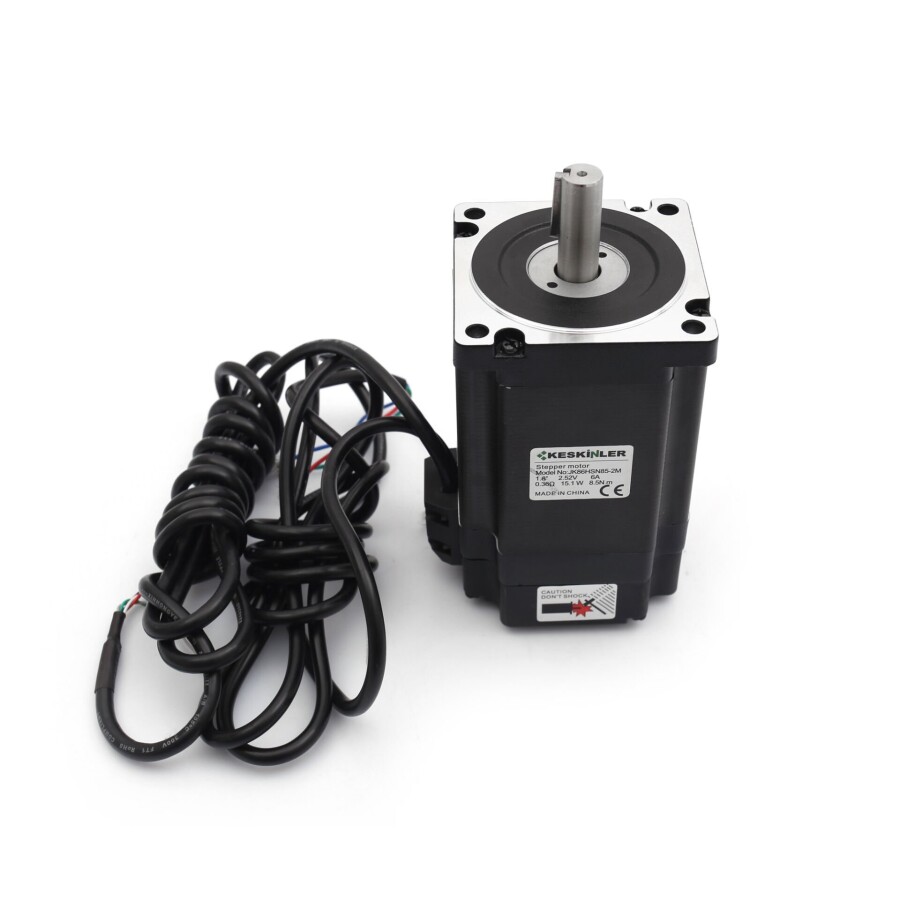

JK86HSN85 NEMA34 Stepper Motor and Driver with Encoder
The JK86HSN85 NEMA34 Stepper Motor with Encoder is a type of motor that can be used in projects requiring precise positioning, in machine manufacturing, and in various production machines. Stepper motors with encoders are also known as closed loop stepper motors.

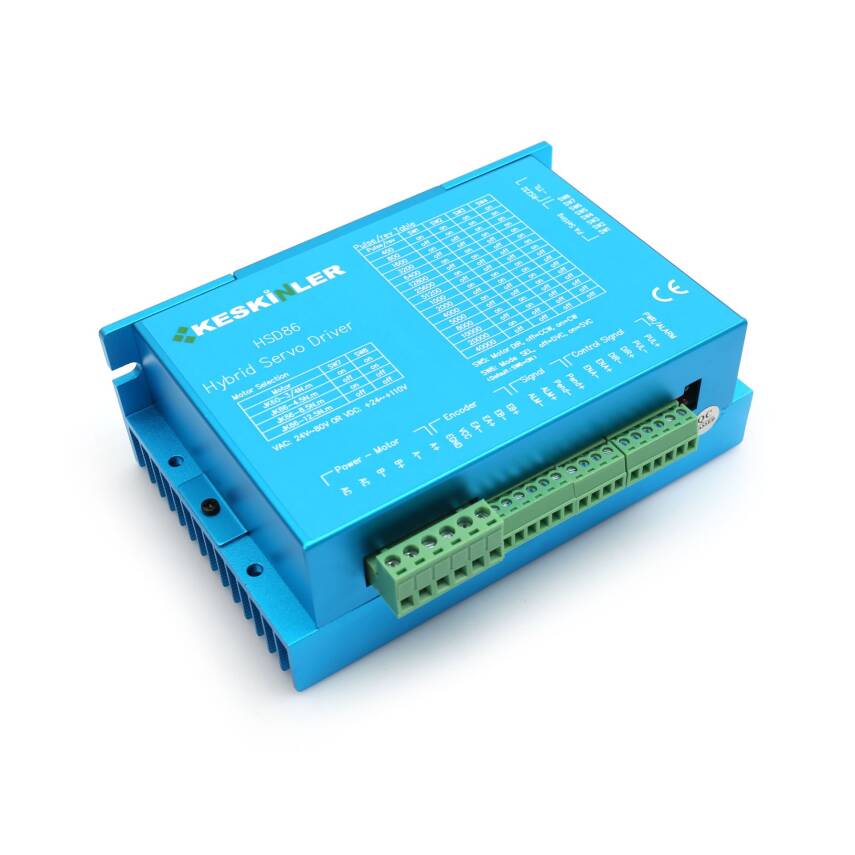

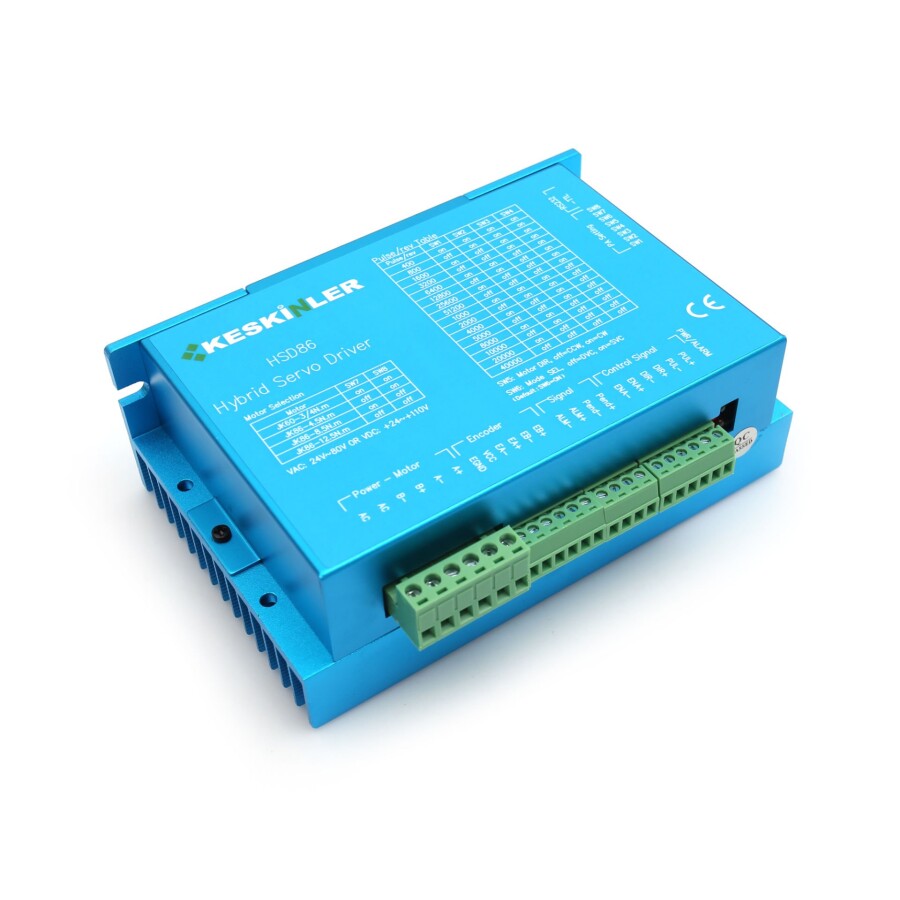

This stepper motor is sold with its driver.
Features:
- Angle Value: 1.8 degrees
- Voltage: 2.52 V
- Peak Current Value: 6 A
- Torque: 8.5 N.m
- Weight: 4.2 kg

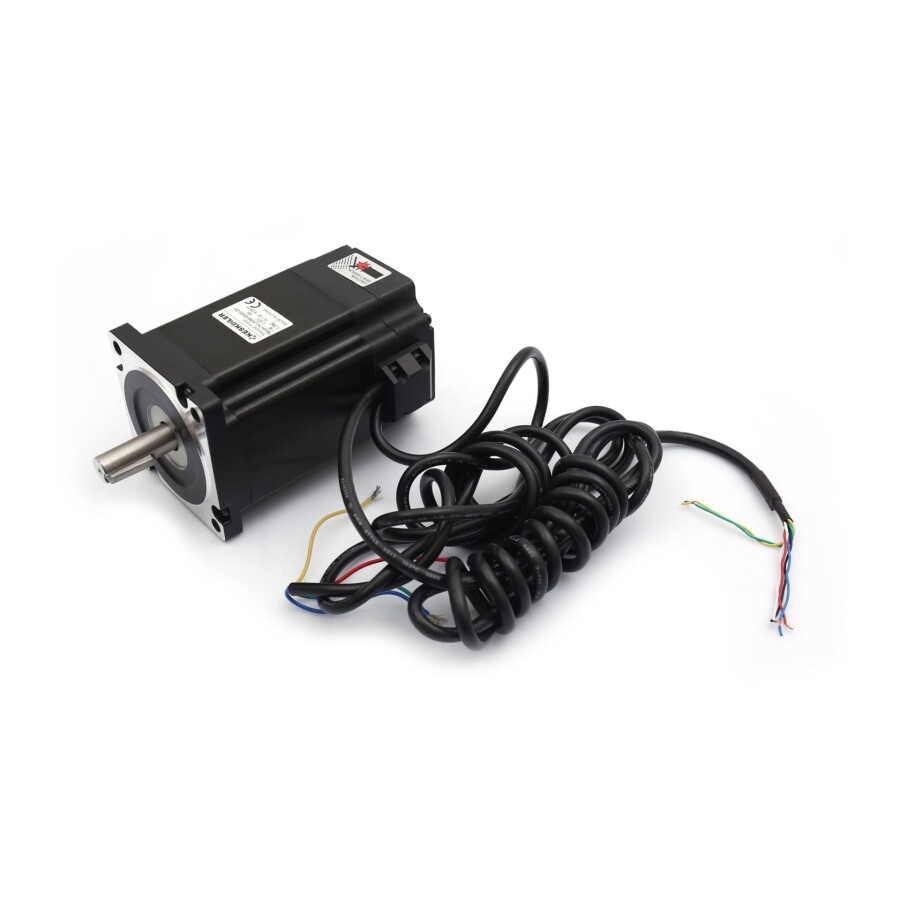

Cable Colors:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
