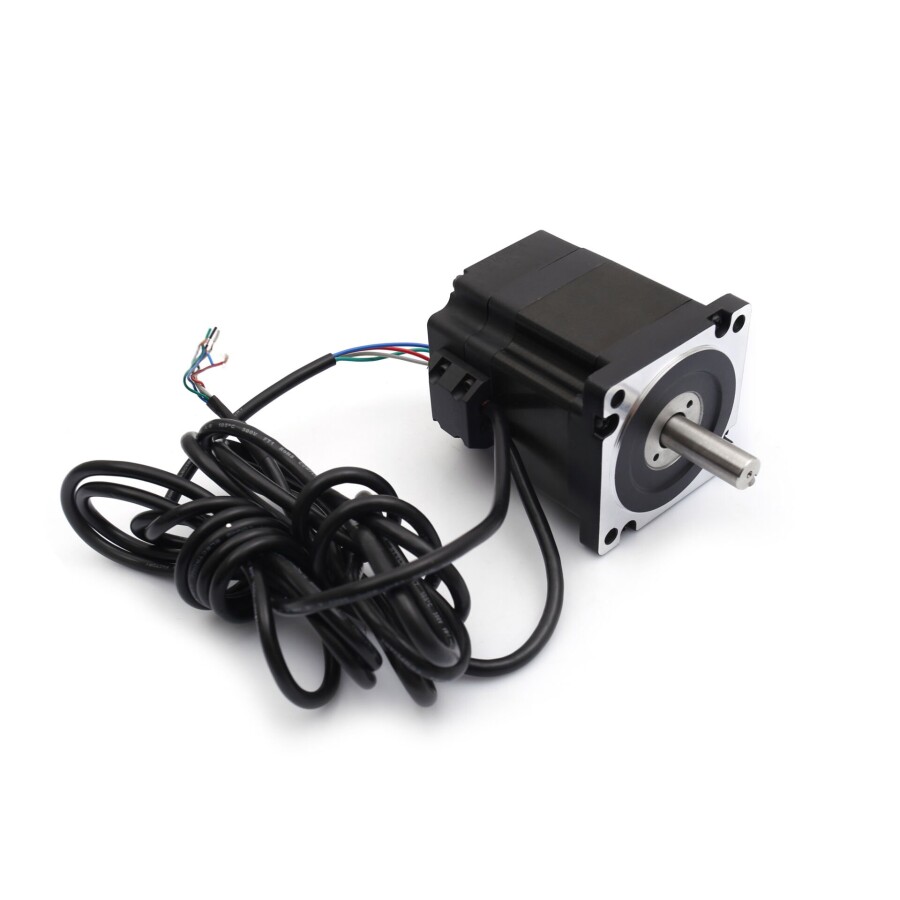

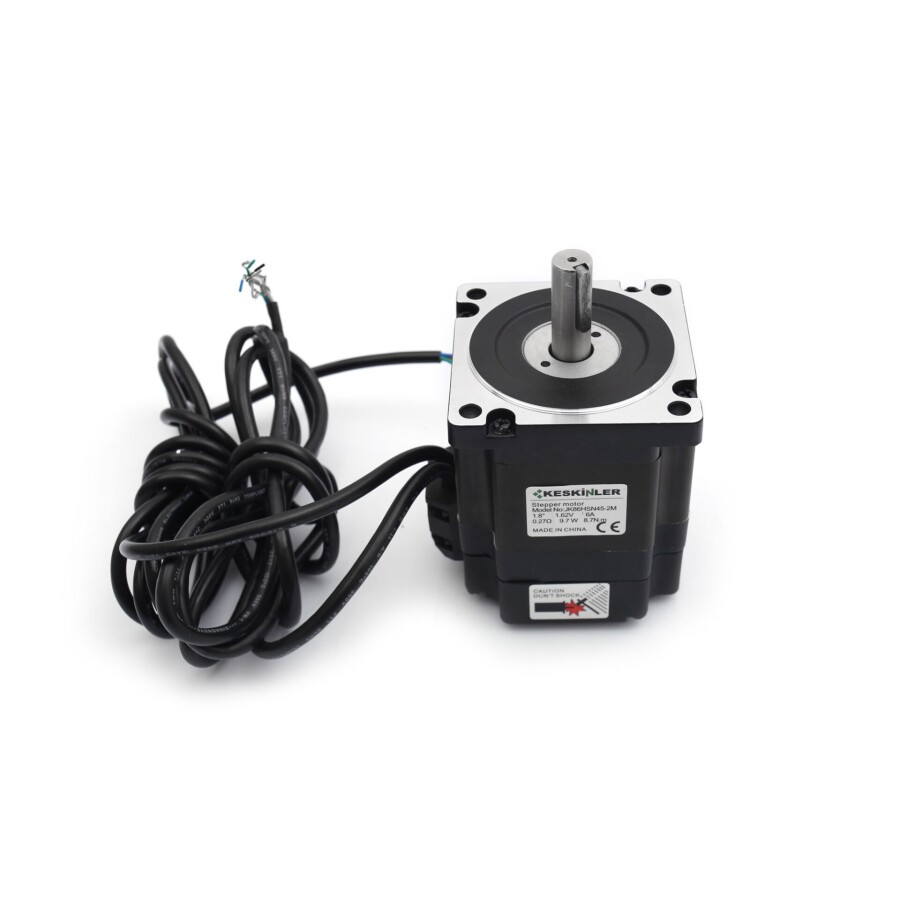

JK86HSN45 NEMA34 Encoder Stepper Motor and Driver

Product Description

The JK86HSN45 NEMA34 encoder stepper motor and driver set is designed for industrial motion control applications requiring high precision and reliable performance.

With its integrated encoder, the motor continuously monitors position and provides real-time feedback, enabling accurate closed-loop motion control and improved system stability.

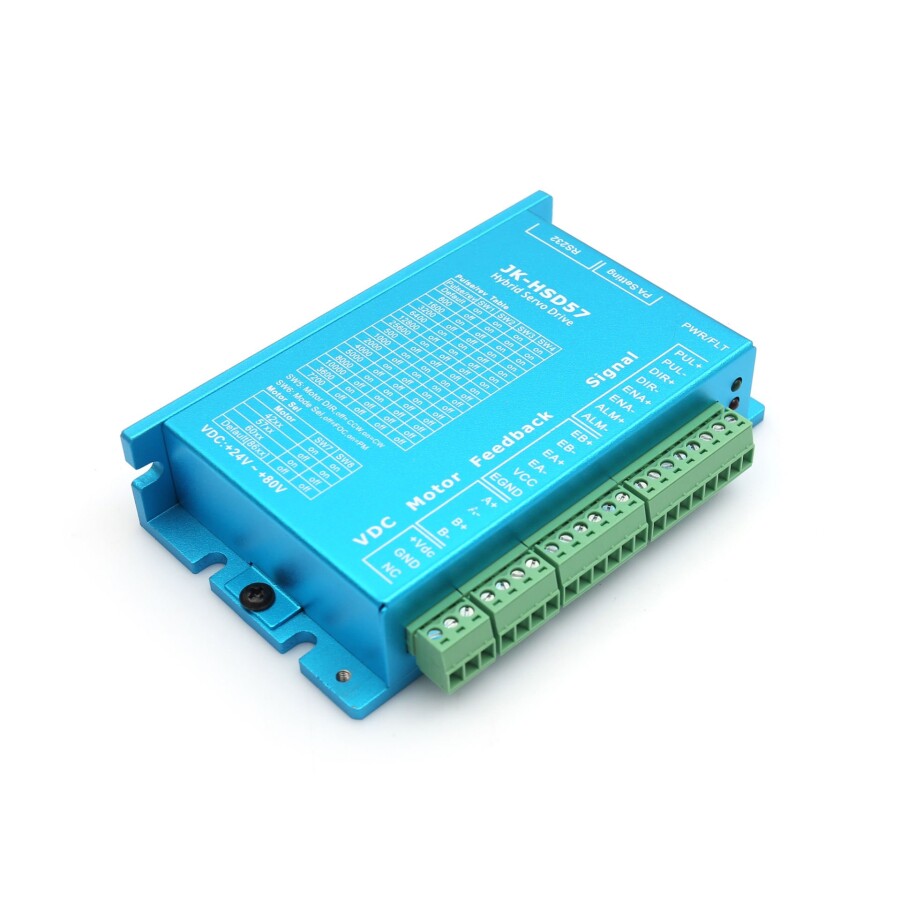

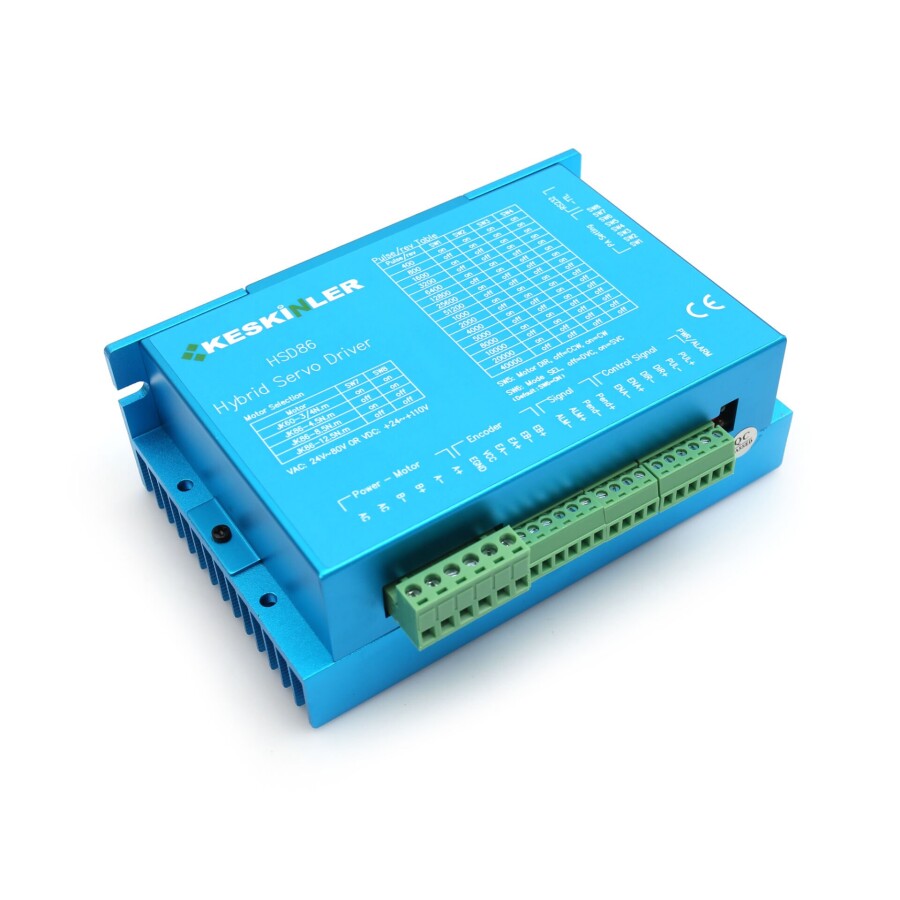

This stepper motor is sold together with its compatible driver, ensuring full system compatibility and simplifying installation.

With a 1.8° step angle and 4.6 N·m torque output, it delivers powerful and precise motion control for CNC machines, robotics systems, and industrial automation equipment.

Key Features

• NEMA34 encoder stepper motor

• Sold as a complete motor and driver set

• Closed-loop motion control system

• 4.6 N·m high torque output

• 1.8° precision step angle

• Designed for industrial applications

Application Areas

• CNC machines

• Industrial automation systems

• Robotics platforms

• Precision positioning systems

• Closed-loop motion control applications

Technical Specifications

Motor Specifications

• Motor Type: Encoder Stepper Motor

• Model: JK86HSN45

• Motor Standard: NEMA34

• Step Angle: 1.8°

• Voltage: 1.62V

• Peak Current: 6 A

• Torque: 4.6 N·m

• Weight: 2.3 kg

Motor Cable Colors

• Red: A+

• Green: A-

• Yellow: B+

• Blue: B-

Encoder Connection

• EA+: Black

• EA-: Blue

• EB+: Yellow

• EB-: Green

• Vcc: Red

• EGND: White
