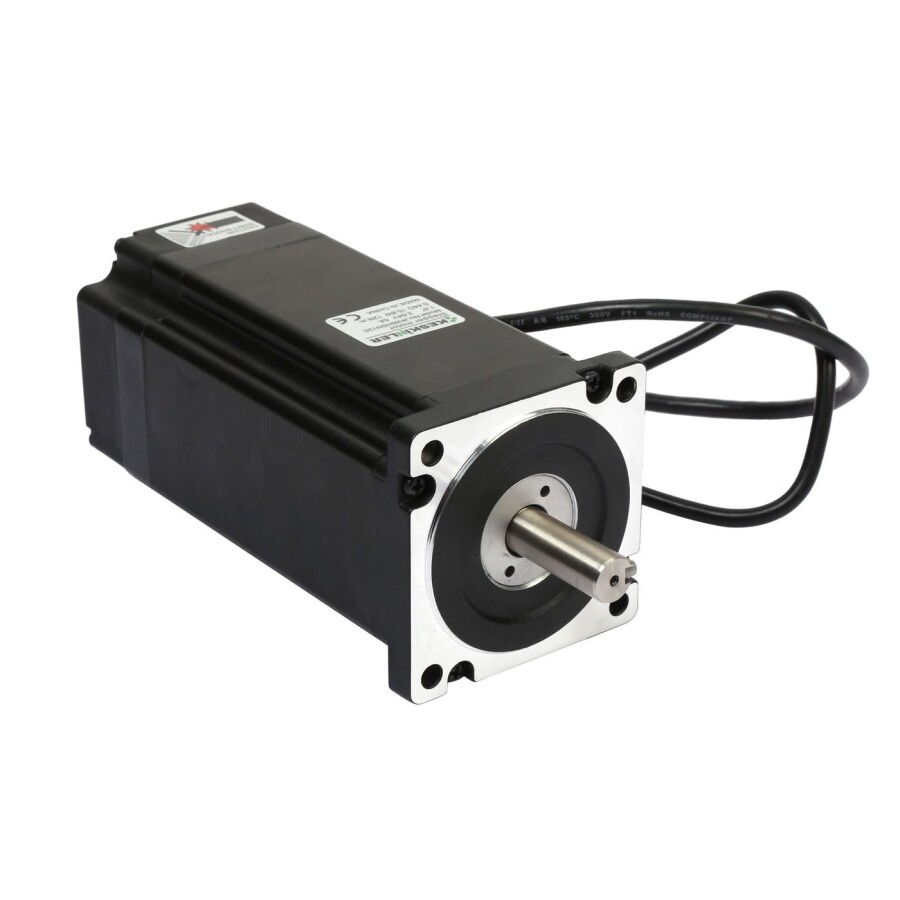

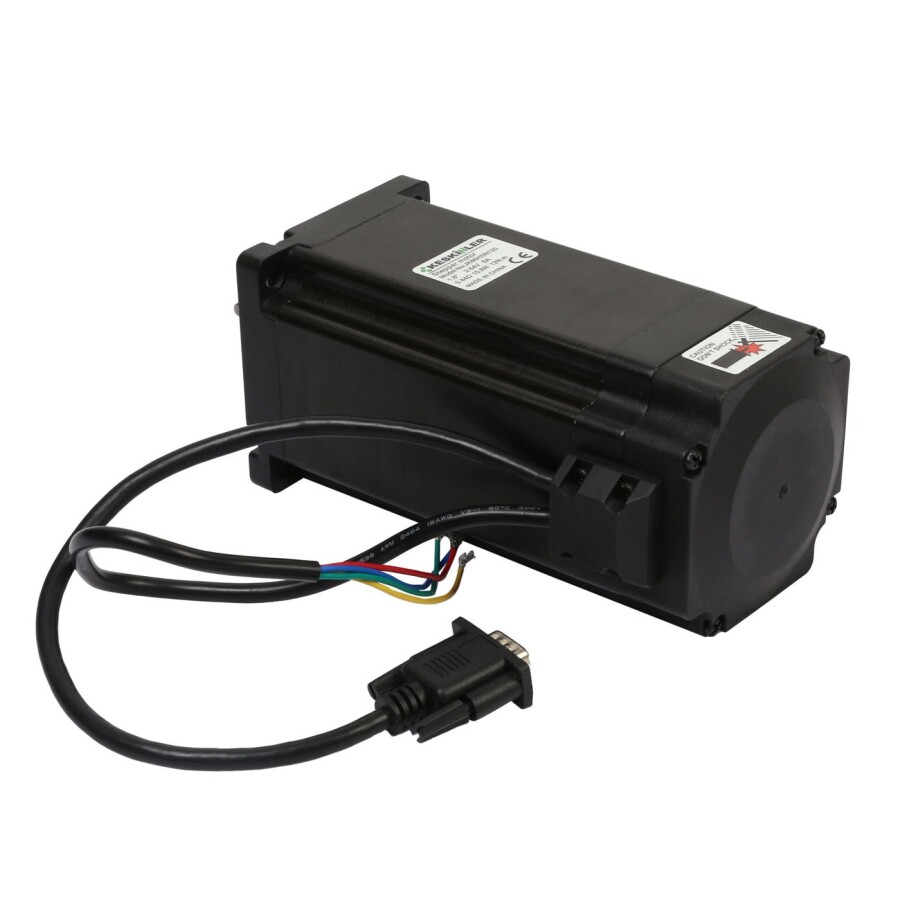

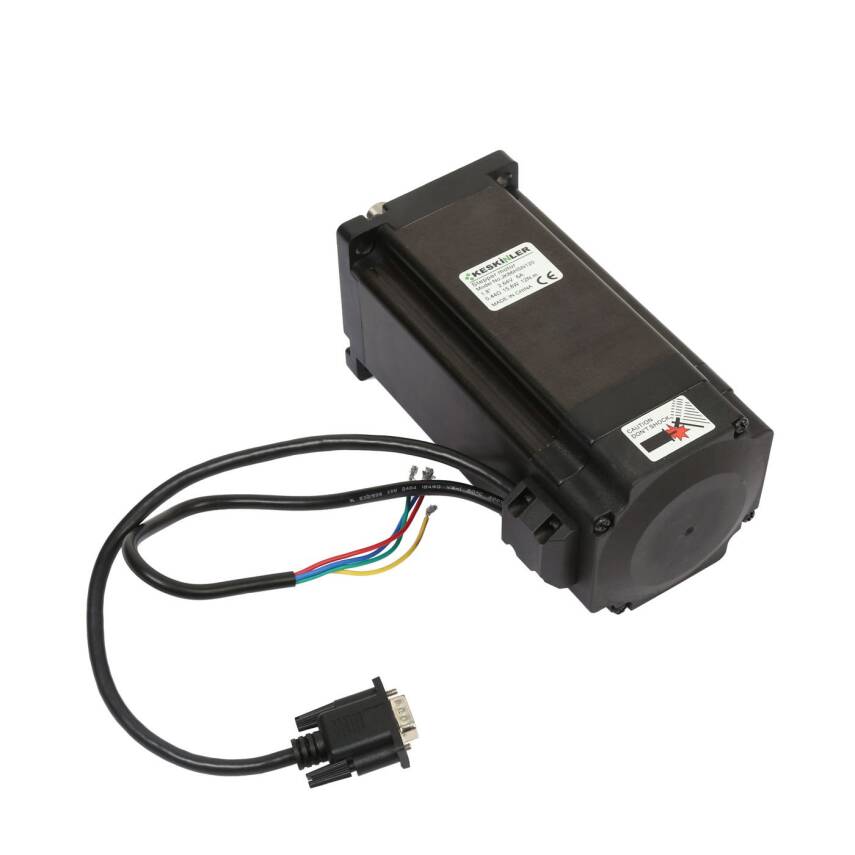

JK86HSN120 NEMA34 Stepper Motor with Encoder
The JK86HSN120 NEMA34 Stepper Motor with Encoder is a type of motor that can be used in projects requiring precise positioning, in machine manufacturing, and in various production machines. Stepper motors with encoders are also known as closed loop stepper motors.
Features:
- Angle Value: 1.8 degrees
- Voltage: 2.64 V
- Peak Current Value: 6 A
- Torque: 12 N.m
- Weight: 5.6 kg
Cable Colors:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
