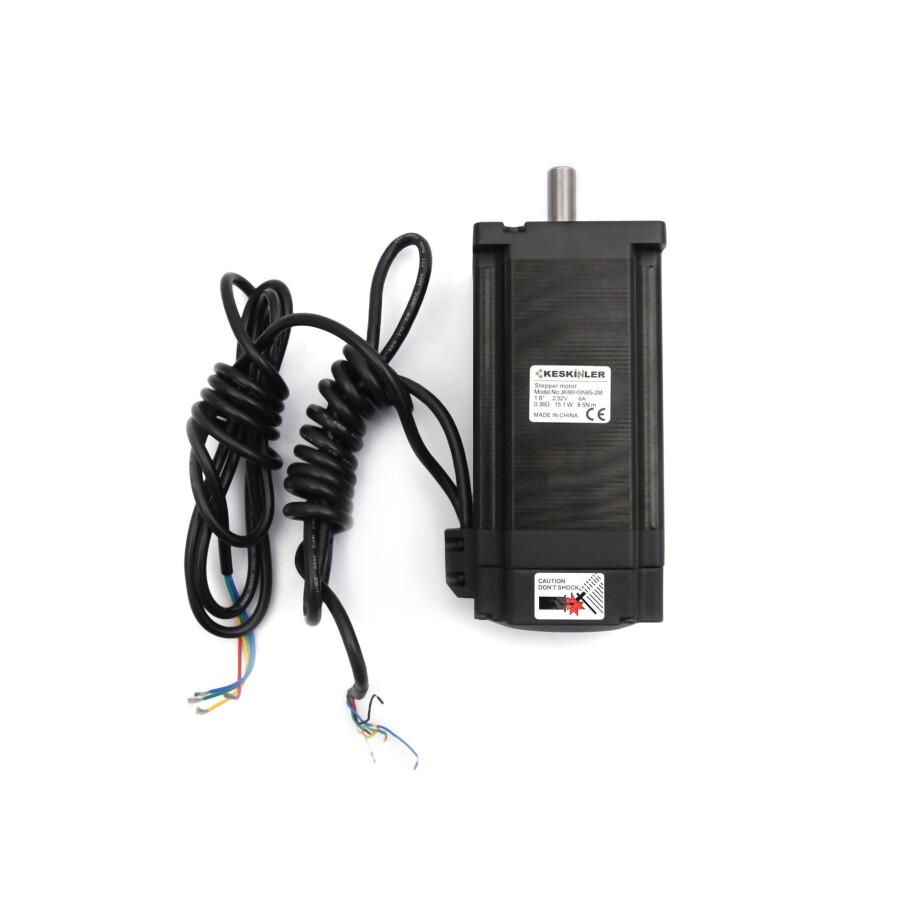

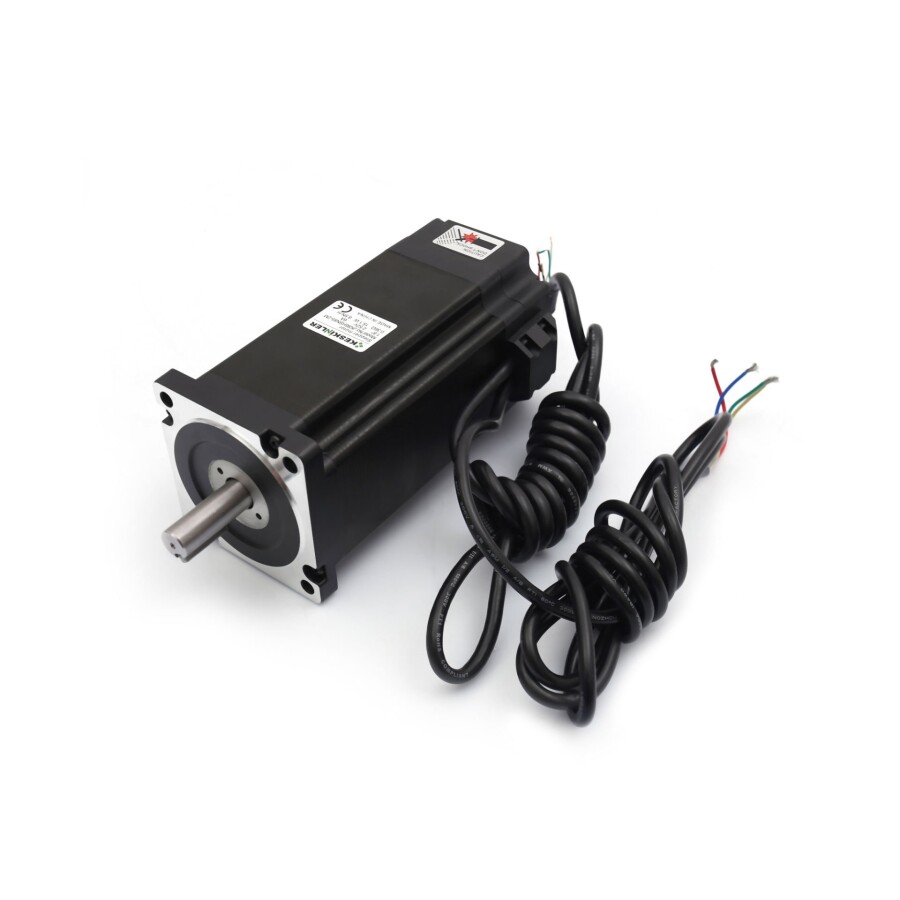

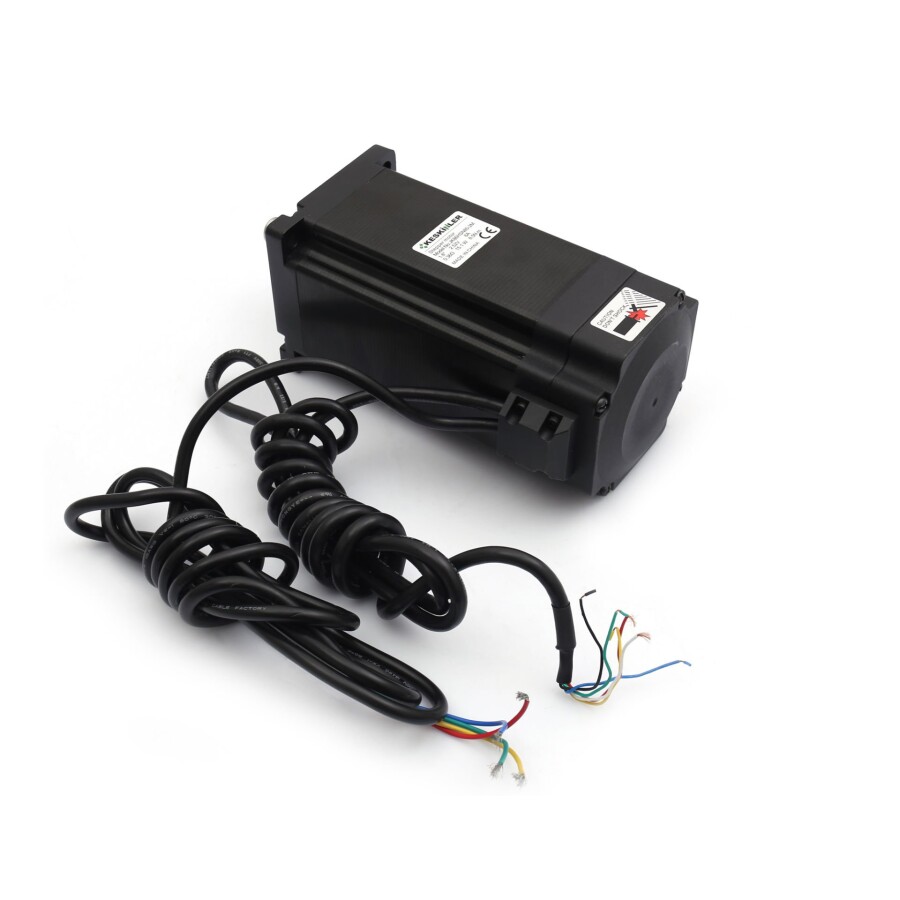

JK86HSN120 NEMA34 Stepper Motor and Driver with Encoder
The JK86HSN120 NEMA34 Stepper Motor with Encoder is a type of motor that can be used in projects requiring precise positioning, in machine manufacturing, and in various production machines. Encoder-equipped stepper motors are also known as closed-loop stepper motors.

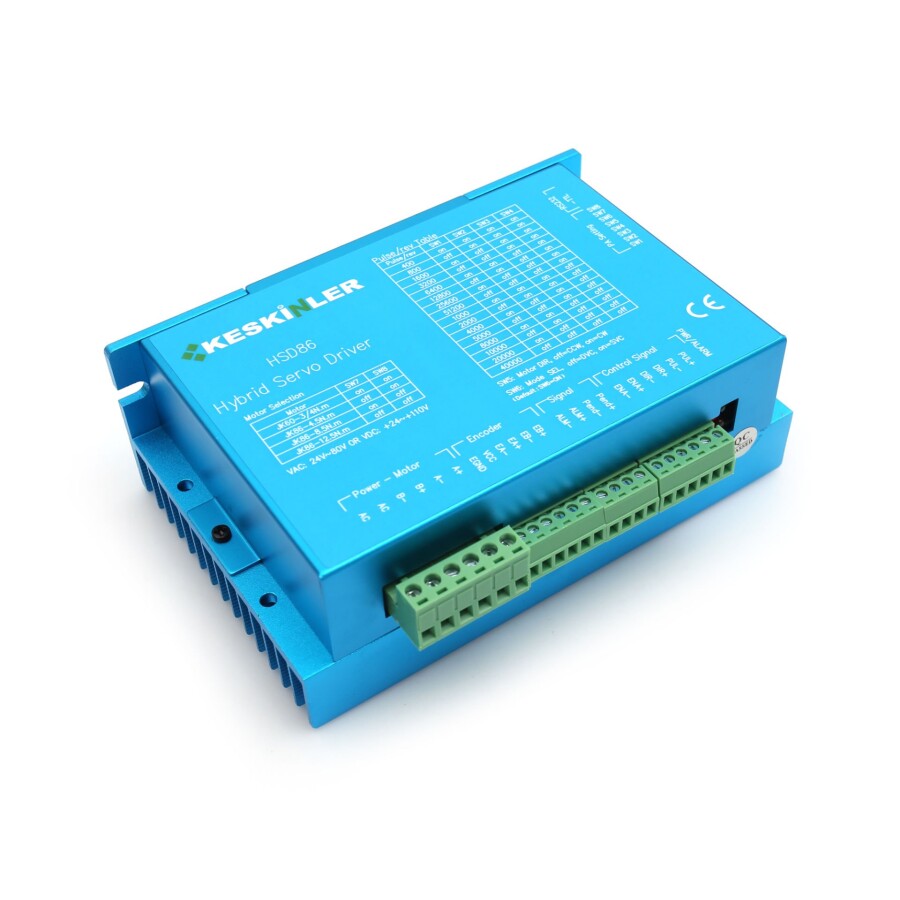

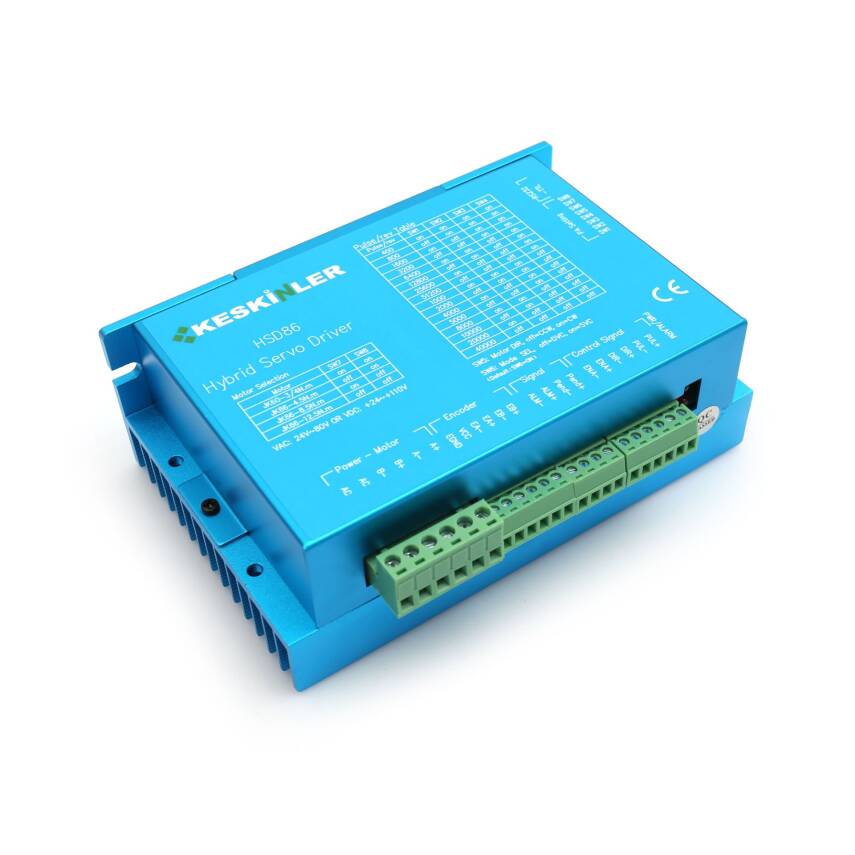

This stepper motor is sold with its driver.
Features:
- Angle Value: 1.8 degrees
- Voltage: 2.64 V
- Peak Current Value: 6 A
- Torque: 12 N.m
- Weight: 5.6 kg
Cable Colors:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
