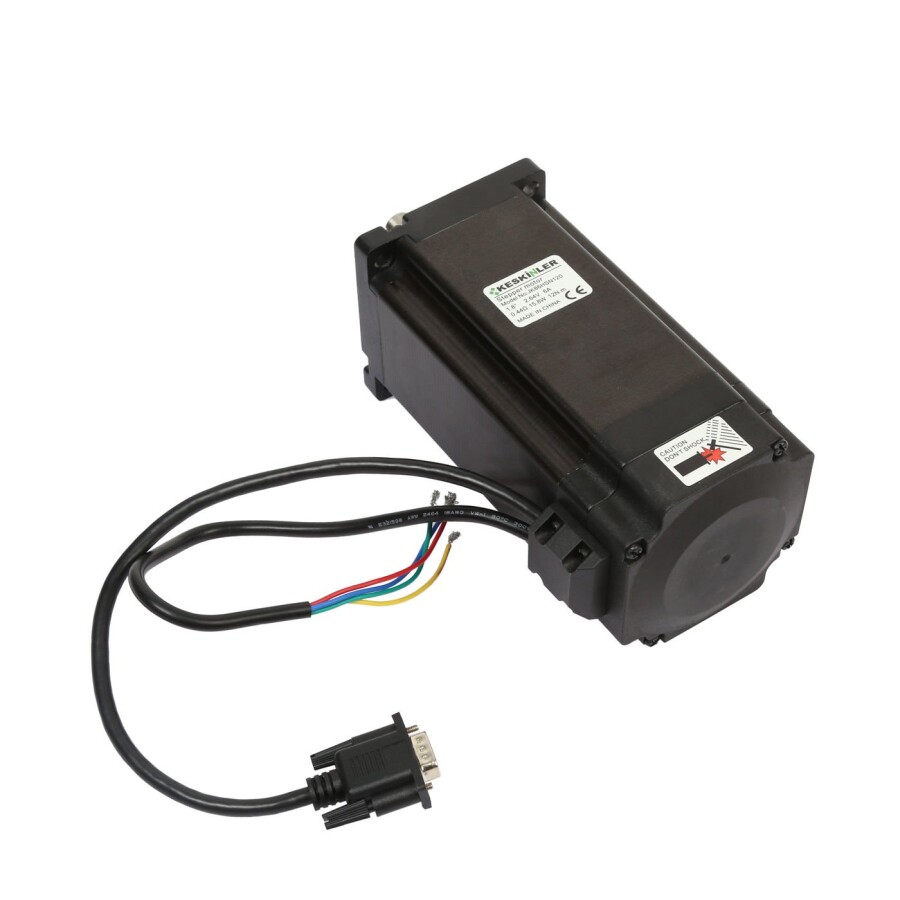

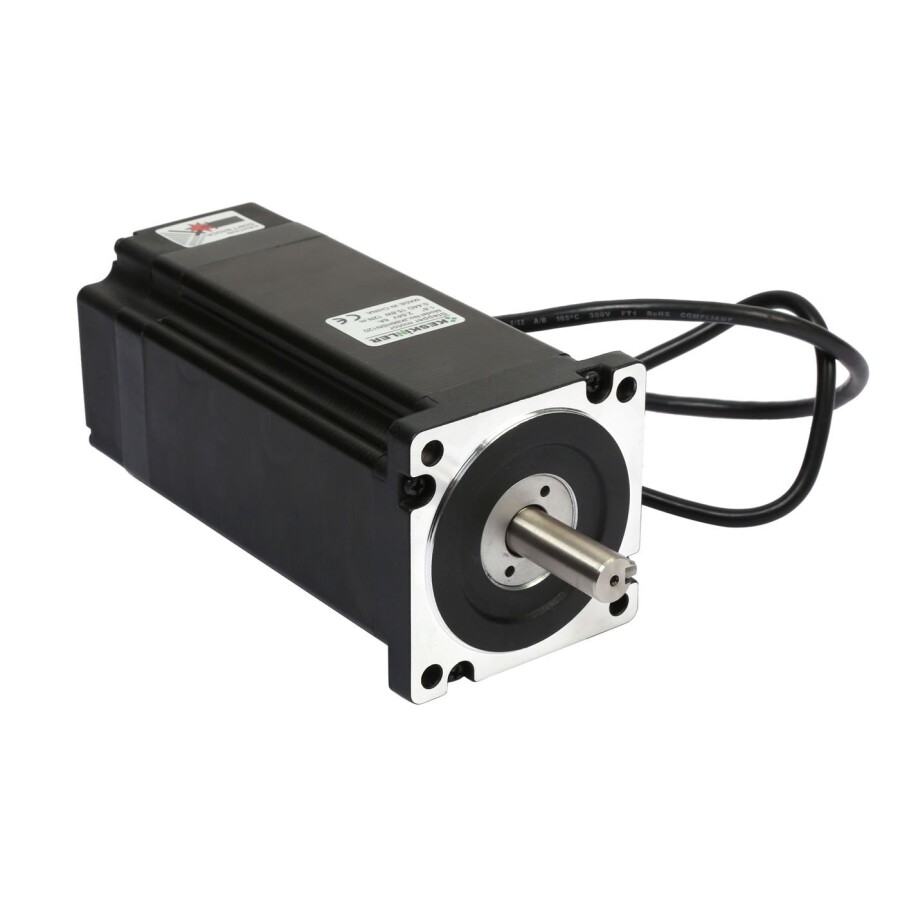

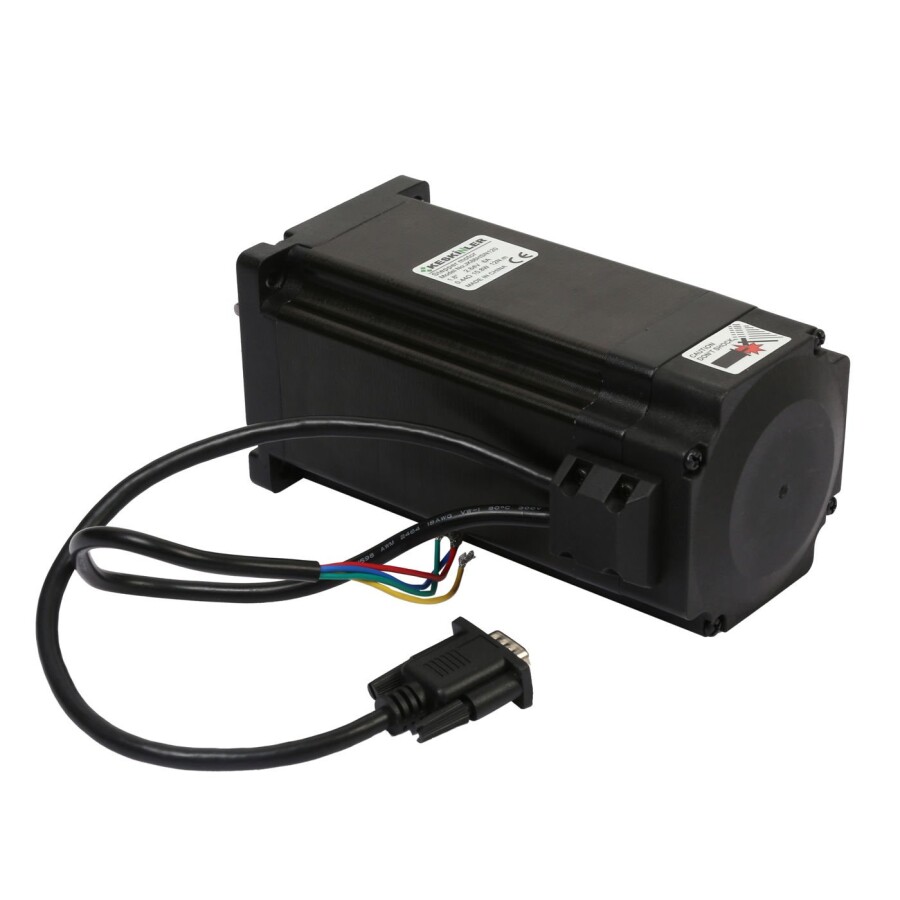

JK86HSN120 NEMA34 Encoder Stepper Motor – Socket Type
Product Code : NEMA34.009
High-performance NEMA34 encoder stepper motor with socket connector designed for precise closed-loop motion control applications.
12,005.00 TL + VAT
KDV Dahil : 14,406.00 TL
Out Of Stock
Notify me when its in stockJK86HSN120 NEMA34 Encoder Stepper Motor – Socket Type
Product Description
The JK86HSN120 NEMA34 encoder stepper motor is designed for industrial motion control systems requiring high precision and position feedback.
Its integrated encoder continuously monitors motor position, enabling more stable and reliable motion control in closed-loop systems.
The socket connector design simplifies wiring and installation, reducing setup time and improving system reliability. With its standard NEMA34 frame size, the motor can be easily integrated into CNC machines, robotics platforms, and industrial automation equipment.
Key Features
-
Standard NEMA34 frame size
-
Integrated encoder feedback system
-
Socket connector design
-
High-precision motion control
-
Durable construction for industrial environments
Application Areas
-
CNC machines
-
Industrial automation systems
-
Robotics platforms
-
Precision positioning systems
-
Closed-loop motion control applications
Features:
- Angle Value: 1.8 degrees
- Voltage: 2.64 V
- Peak Current Value: 6 A
- Torque: 12 N.m
- Weight: 5.6 kg
Cable Colors:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
Teknik Çizim:
