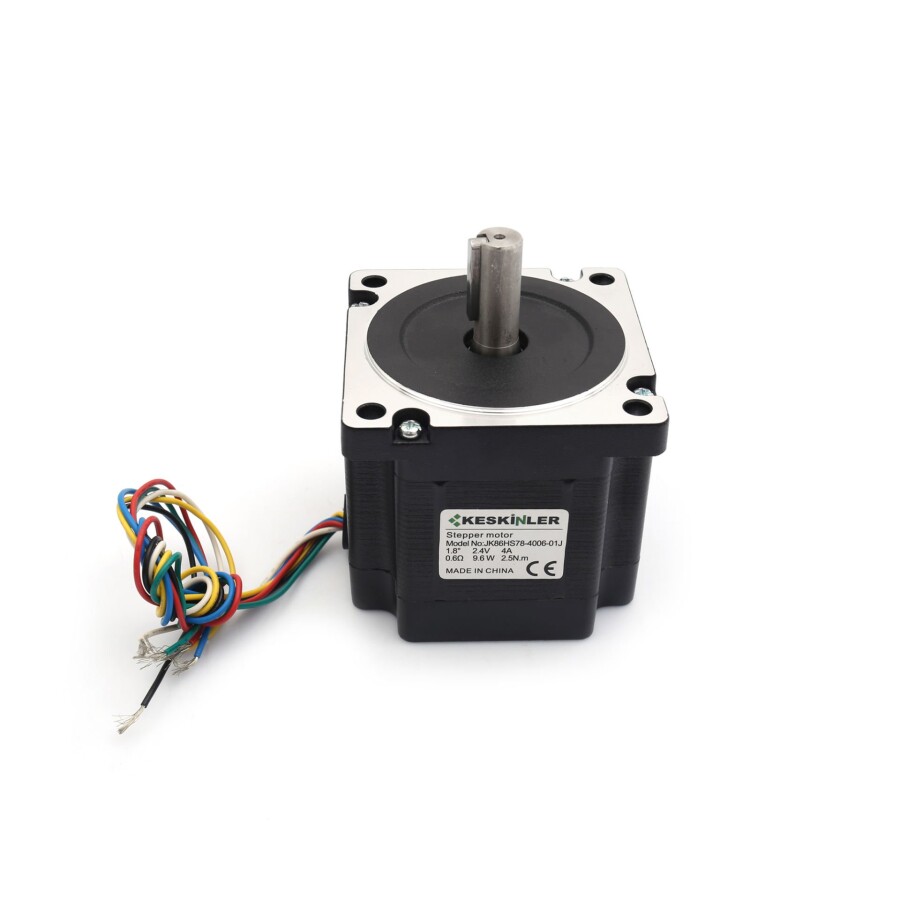

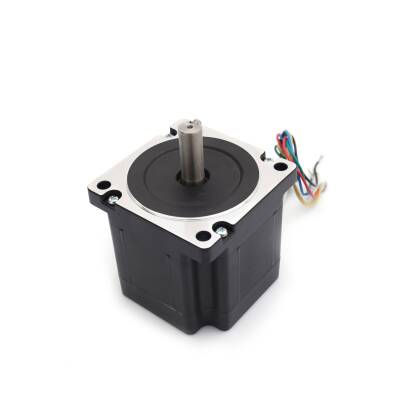

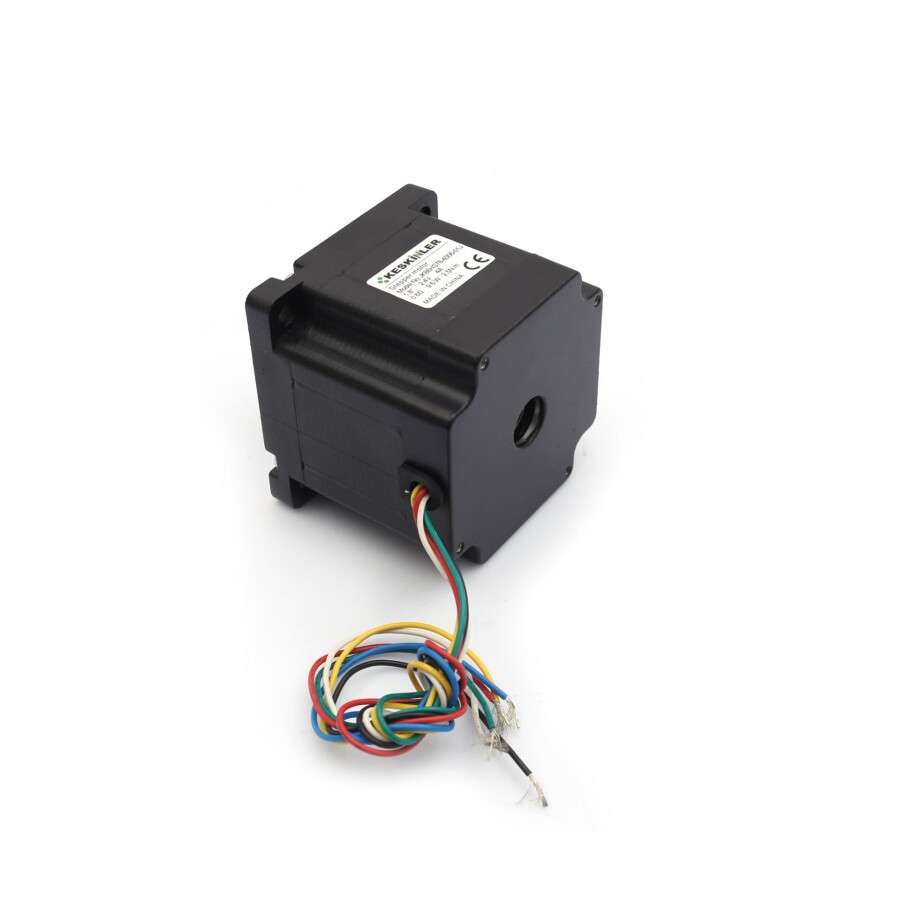

JK86HS78 NEMA34 Stepper Motor
The JK86HS78 NEMA34 Stepper Motor is a motor type that can be used in various production machines, especially in projects requiring precise positioning, in machine manufacturing, and in various production machines.
Features:
- Number of Phases: 4
- Angle Value: 1.8 degrees
- Voltage: 2.4V
- Peak Current Value: 4 A
- Phase Resistance: 0.6 Ohm
- Torque: 2.5 kg.cm
- Weight: 2.3 kg
Cable Colors:
- Red: A
- White: O
- Green: C
- Yellow: B
- Black: O-
- Blue: D
