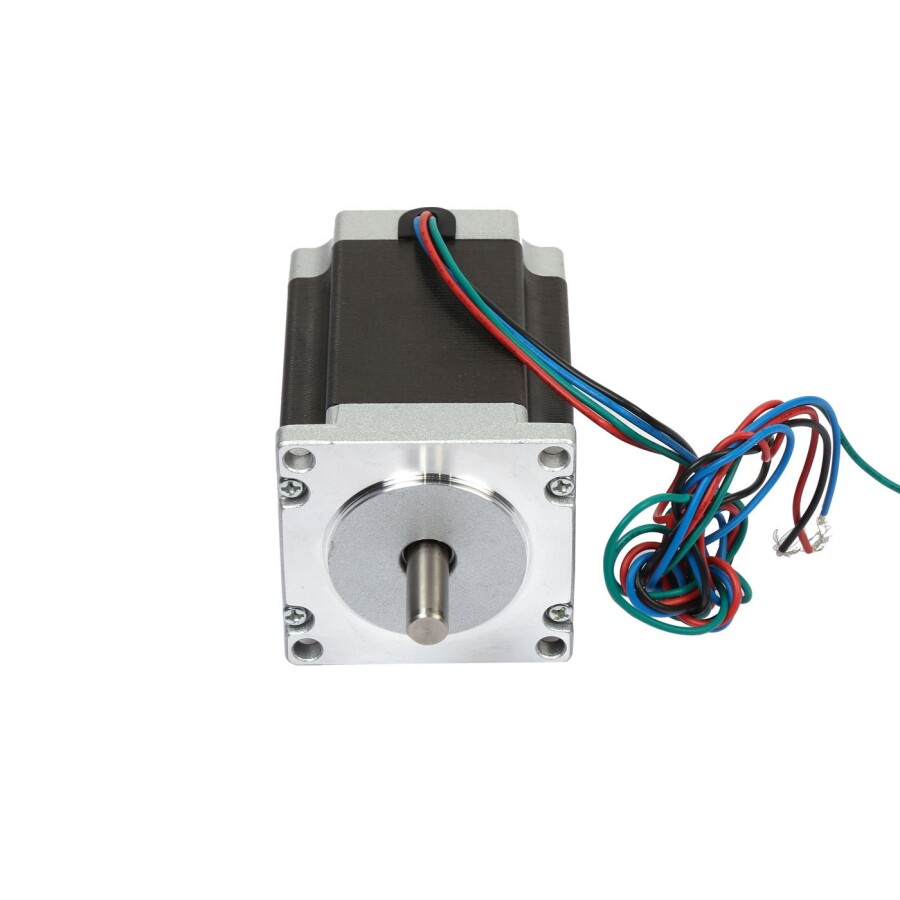

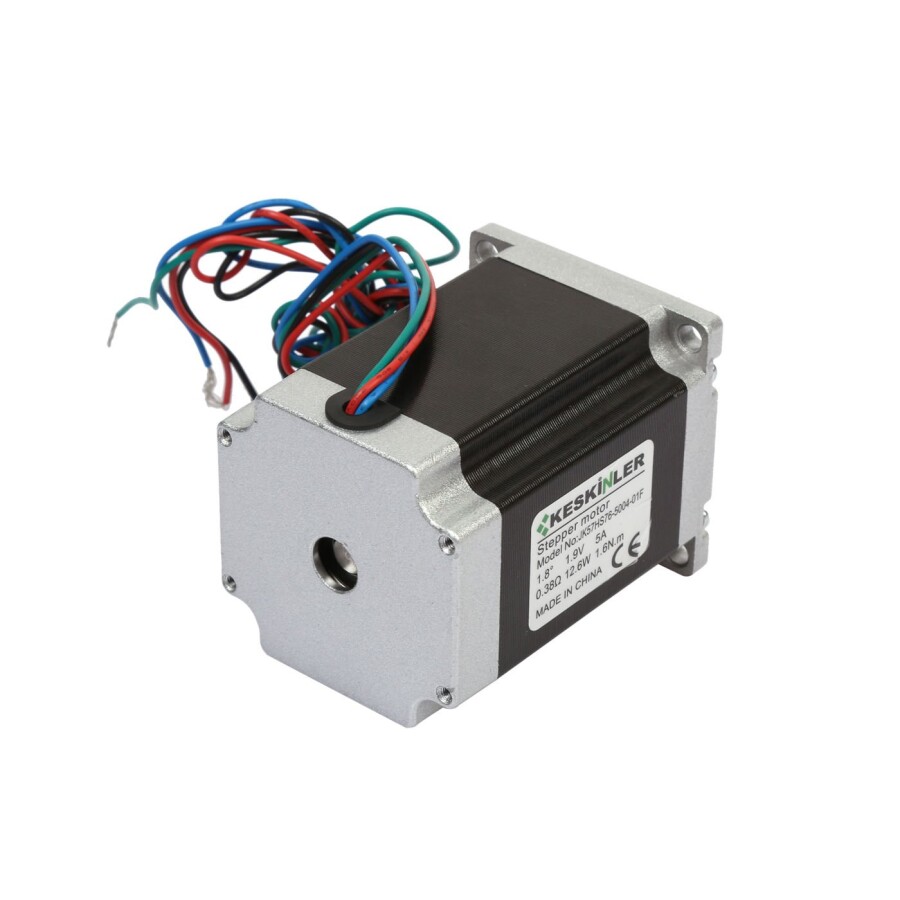

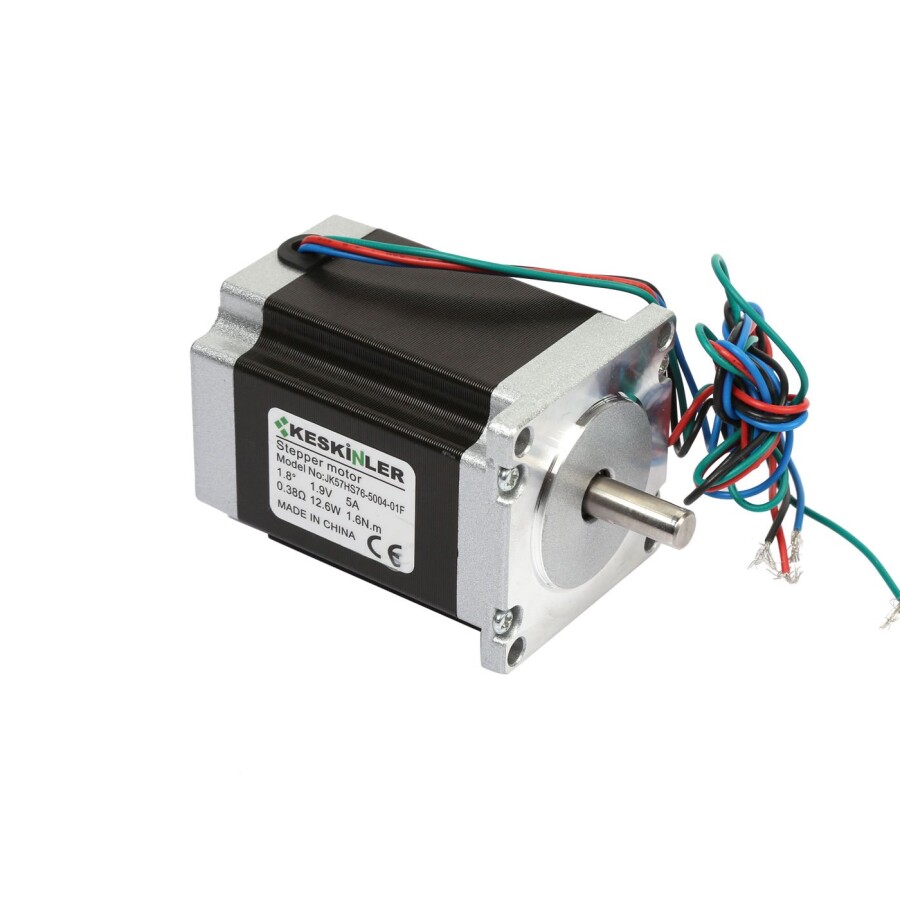

JK57HS76-5004 NEMA23 Stepper Motor
The JK57HS76-5004 NEMA23 Stepper Motor is a motor type that can be used in various production machines, especially in projects requiring precise positioning, in machine manufacturing, and in various production machines.
Features:
- Number of Phases: 2
- Angle Value: 1.8 degrees
- Voltage: 1.9V
- Peak Current Value: 5 A
- Phase Resistance: 0.38 Ohm
- Torque: 23 kg.cm
- Weight: 1.1 kg
Cable Colors:
- Red: A
- Blue: C
- Black: B
- Green: D
A and C are common, B and D are common.
