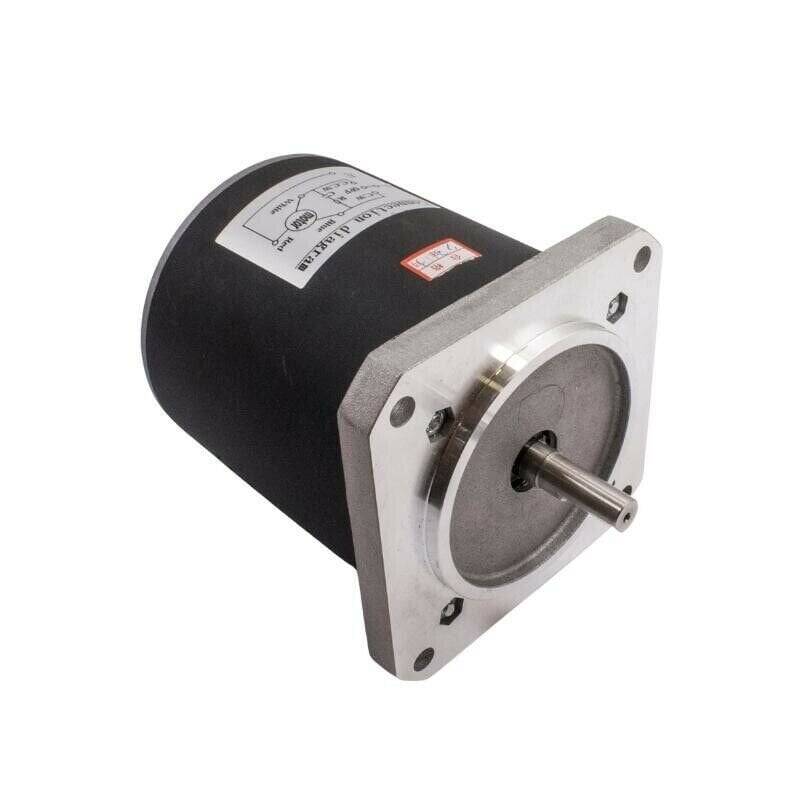

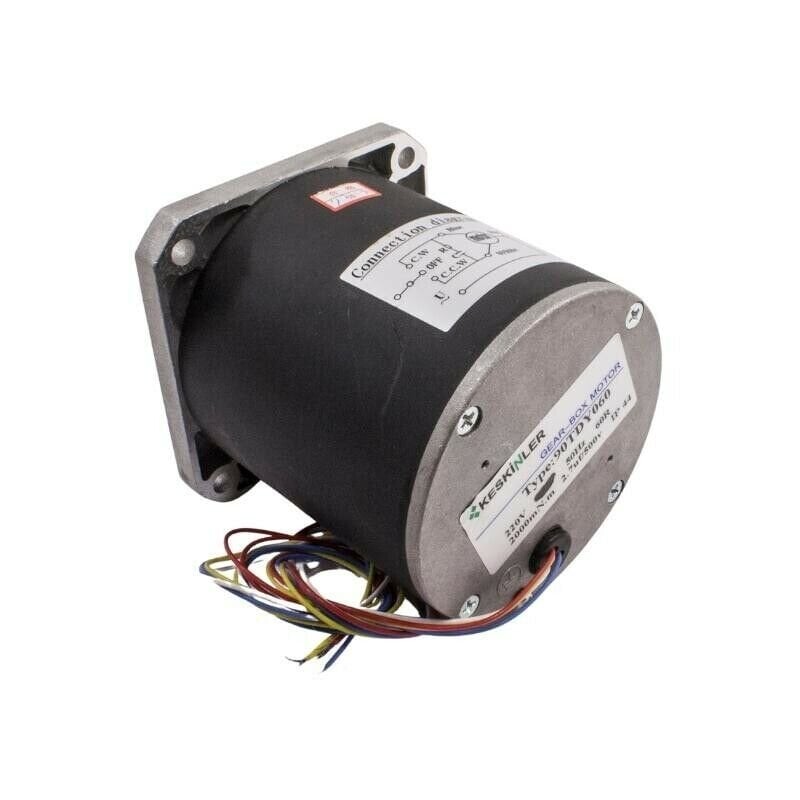

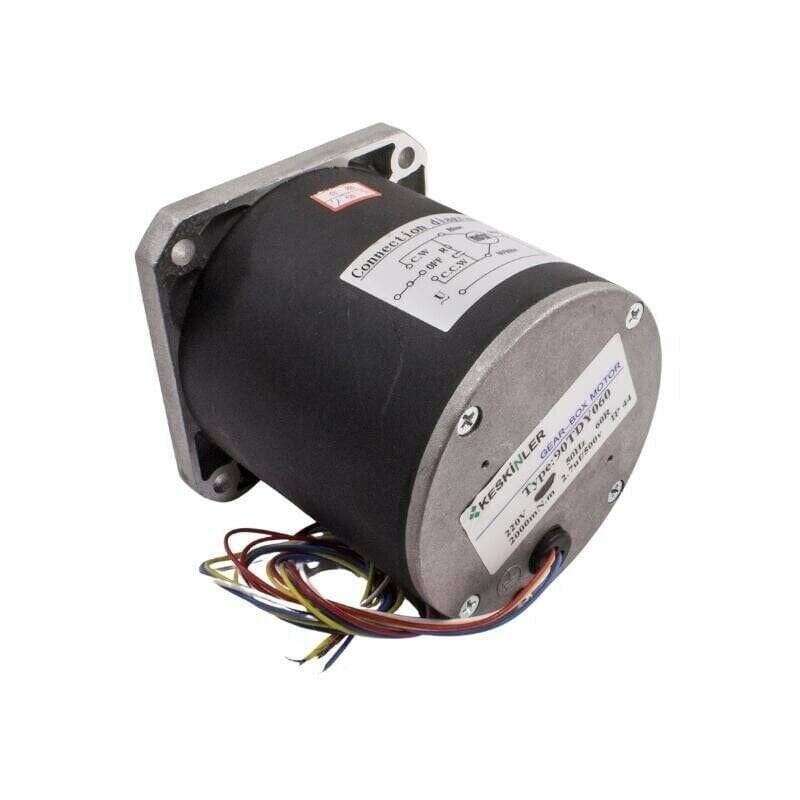

90TDY060 220V 60RPM AC Synchronous Motor

Product Code : ACSCN.021

A 220V AC synchronous motor offering 60 RPM fixed speed, 70W power, and high torque for industrial and automation applications.

12,150.00 TL + VAT

KDV Dahil : 14,580.00 TL

Out Of Stock

Notify me when its in stock

Recommend It Price Alert

Yeni Ürünler

Toptan Satış

Mağazadan Satış

Aynı Gün Kargo

90TDY060 220V 60RPM AC Synchronous Motor

90TDY060 220V 60RPM AC Synchronous Motor, High torque and low noise. Permanent magnet 220V AC synchronous motor.

Technical Specifications

Supply Voltage: 220V AC
No-load Current: 0.35A
Frequency: 50Hz
RPM: 60
Power: 70W
Nominal Torque: 2400 mN.m
Motor Diameter: 70 mm
Shaft Diameter: 9 mm (D-Shaft)
Shaft Length: 27 mm
Frame Size: 95x94 mm
Body Diameter: 90mm
Length: 108mm
Hole Distance: 75mm
Hole Diameter: 6mm
Weight: 2.8 kg

Features

Voltaj

220V AC

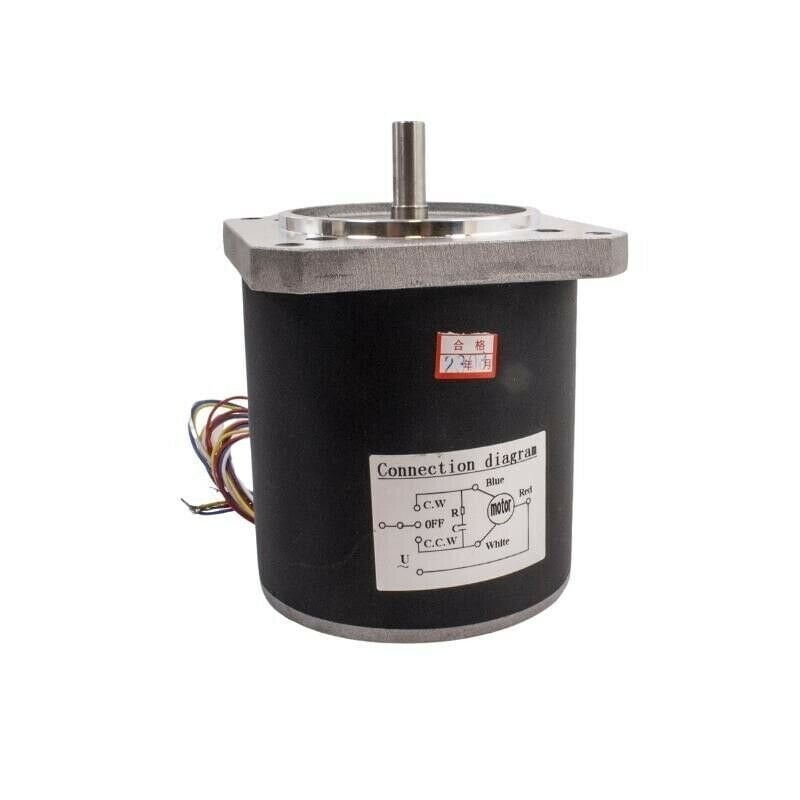

Bağlantı Şeması

90tdy60-connection

Parametre Tablosu

90tdy060-techical-parameters
