DXG NEMA11 200mm Linear Motion Module

DXG NEMA11 200mm Linear Motion Module

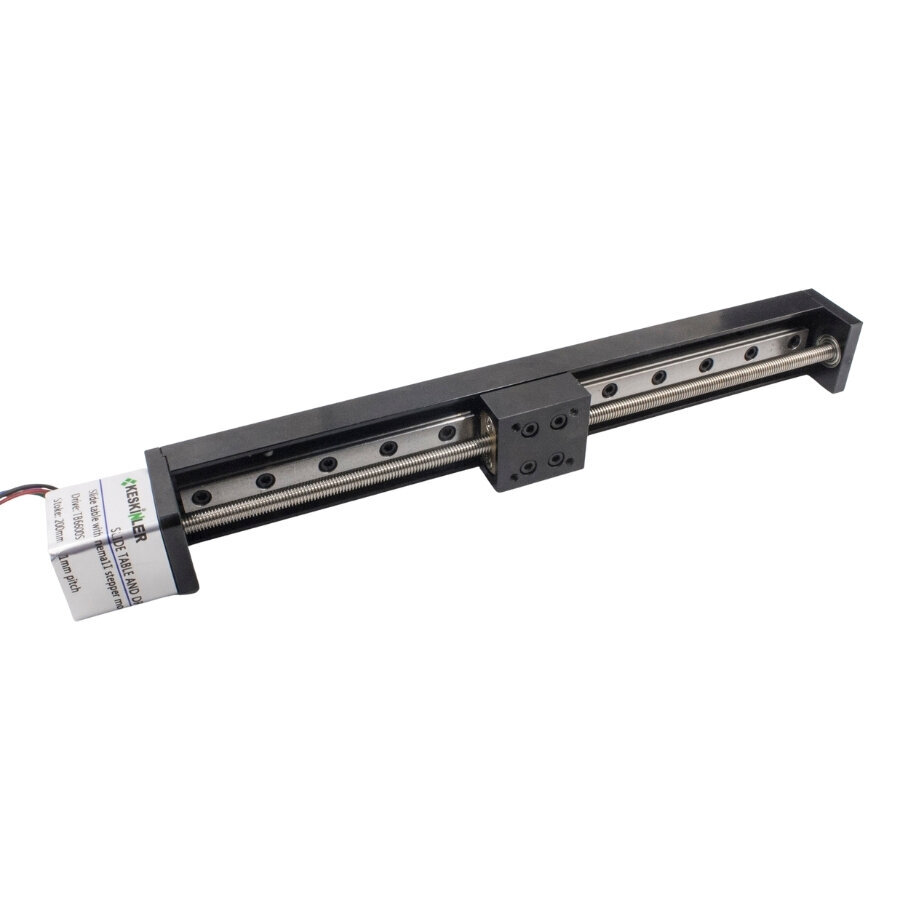

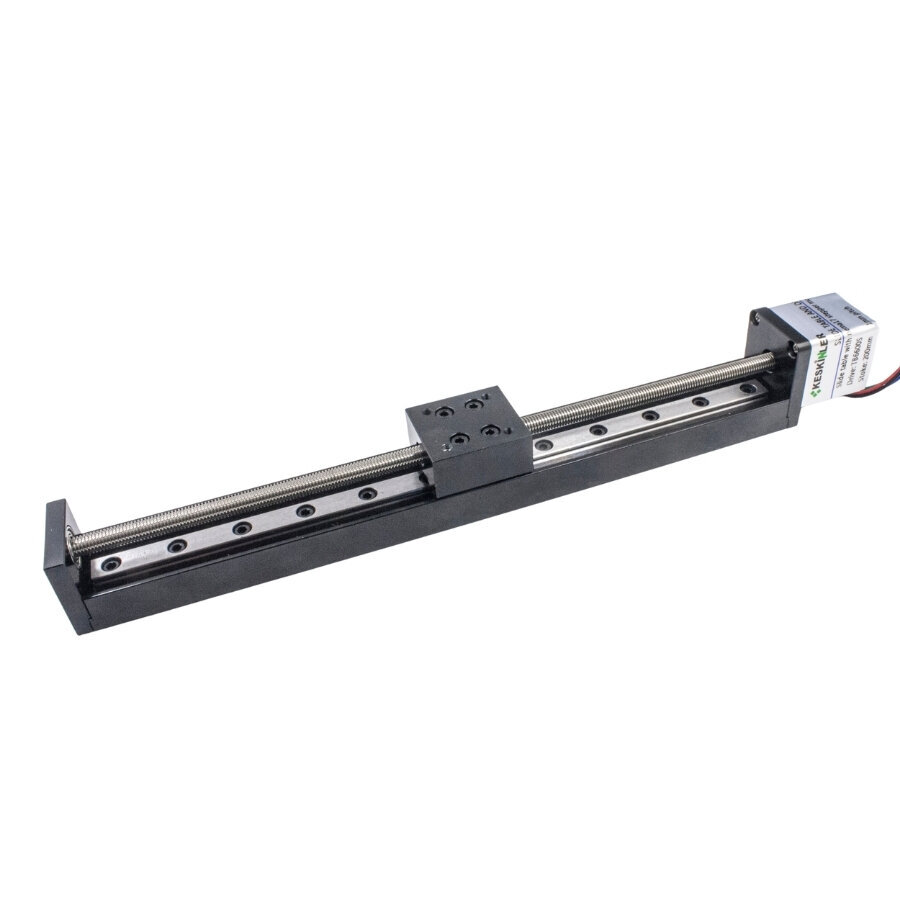

The DXG NEMA11 200mm Linear Motion Module is a linear motion module that can be used in DIY CNC routers and where optical measurement and fine adjustment are required. Its built-in stepper motor allows for precise positioning.

Features

• DXG Nema11 Stepper Motor
• Stroke: 200mm
• Ball Screw;
  • Diameter: 6mm
  • Pitch: 1mm
• Speed: 0-8 mm/s adjustable
• Load Capacity;
  • Horizontal Plane: 5KG
  • Vertical Plane: 1KG
• Torque: 0.07Nm
• Current: 0.6A
