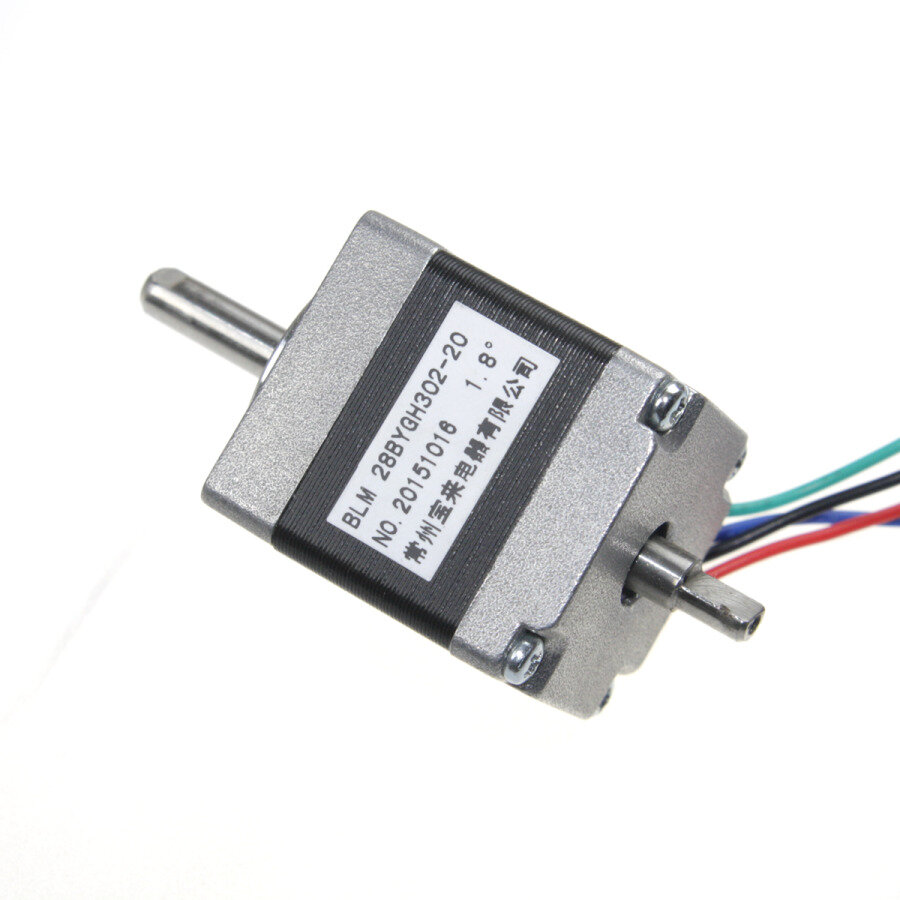

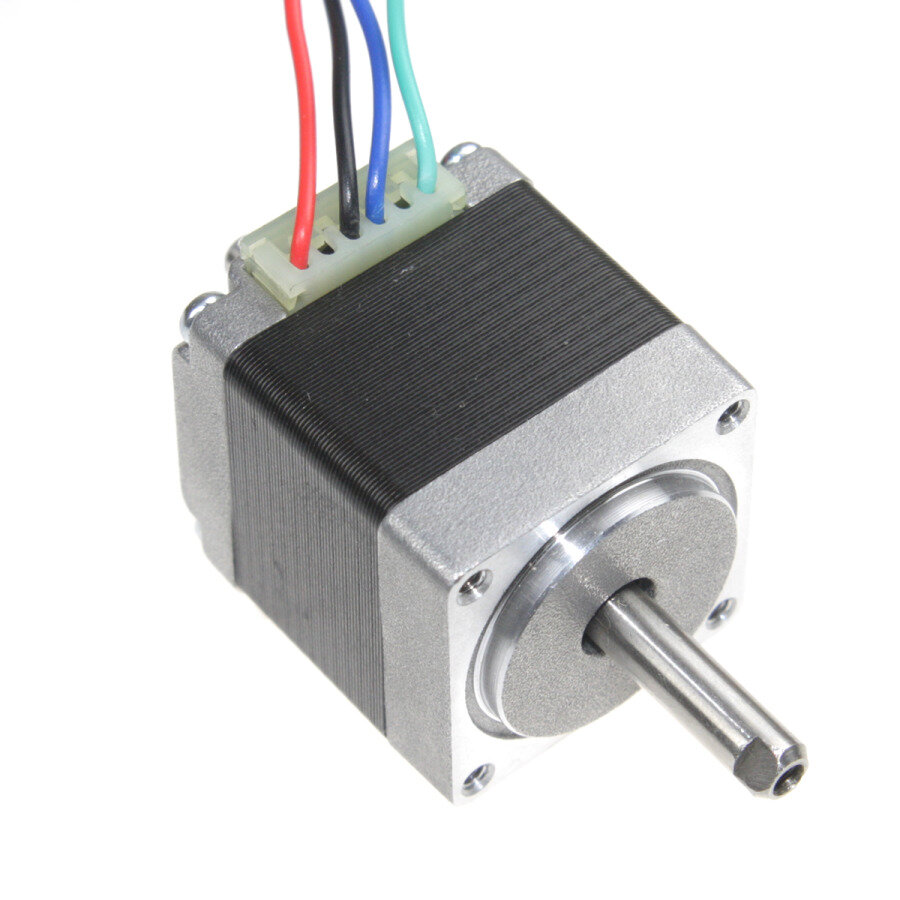

Dual Shaft Small Stepper Motor

Product Description

The Dual Shaft Small Stepper Motor is a compact and easy-to-use motor designed for applications requiring precise positioning and motion control. As part of the NEMA series bipolar stepper motors, it provides stable and reliable performance in motion control systems.

Using stepper motor driver boards, the motor speed and movement can be easily controlled. The dual shaft design allows mechanical connections from both sides of the motor, providing greater flexibility in different mechanical systems.

Its compact size and lightweight construction make it ideal for robotics projects, automation systems, small CNC applications, and various mechanical motion control setups.

Technical Specifications

Motor Specifications

• Motor Type: Bipolar Stepper Motor

• Step Angle: 1.8°

• Motor Diameter: 28 mm

• Dimensions: 28 × 28 × 34 mm

Mechanical Specifications

• Shaft Diameter: 5 mm

• Upper Shaft Length: 18 mm

• Lower Shaft Length: 10.5 mm

• Weight: 110 g
